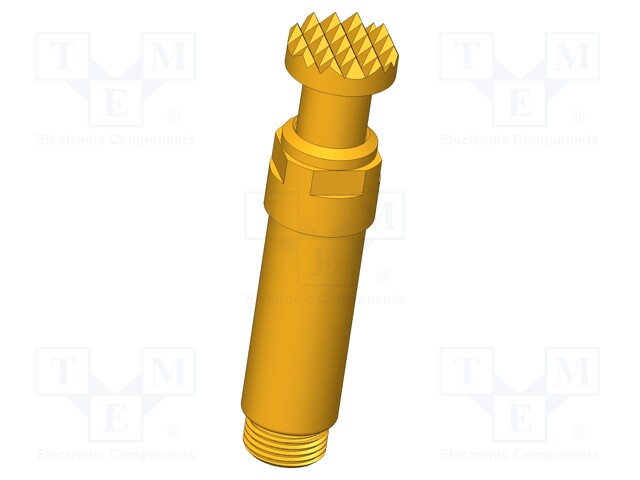

Test needle; Operational spring compression: 2mm; 50A; Ø: 4mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HSS-552 306 400 A 2003 M
    Manufacturer: INGUN
    Manufacturer code: HSS-552 306 400 A 2003 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 2mm; 50A; Ø: 4mm

    Mounting screw-in
    Operating temperature -100...200°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 10mΩ

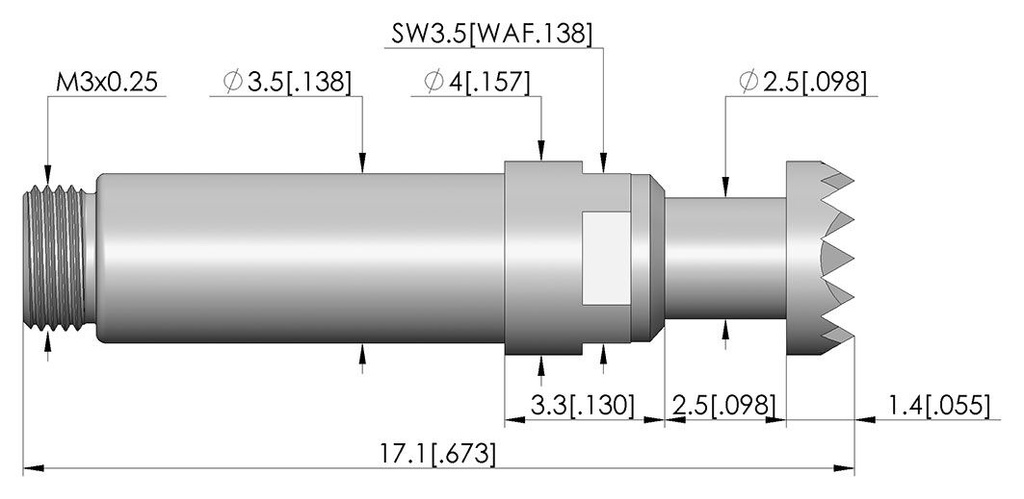

    Length 17.1mm
    Current rating 50A

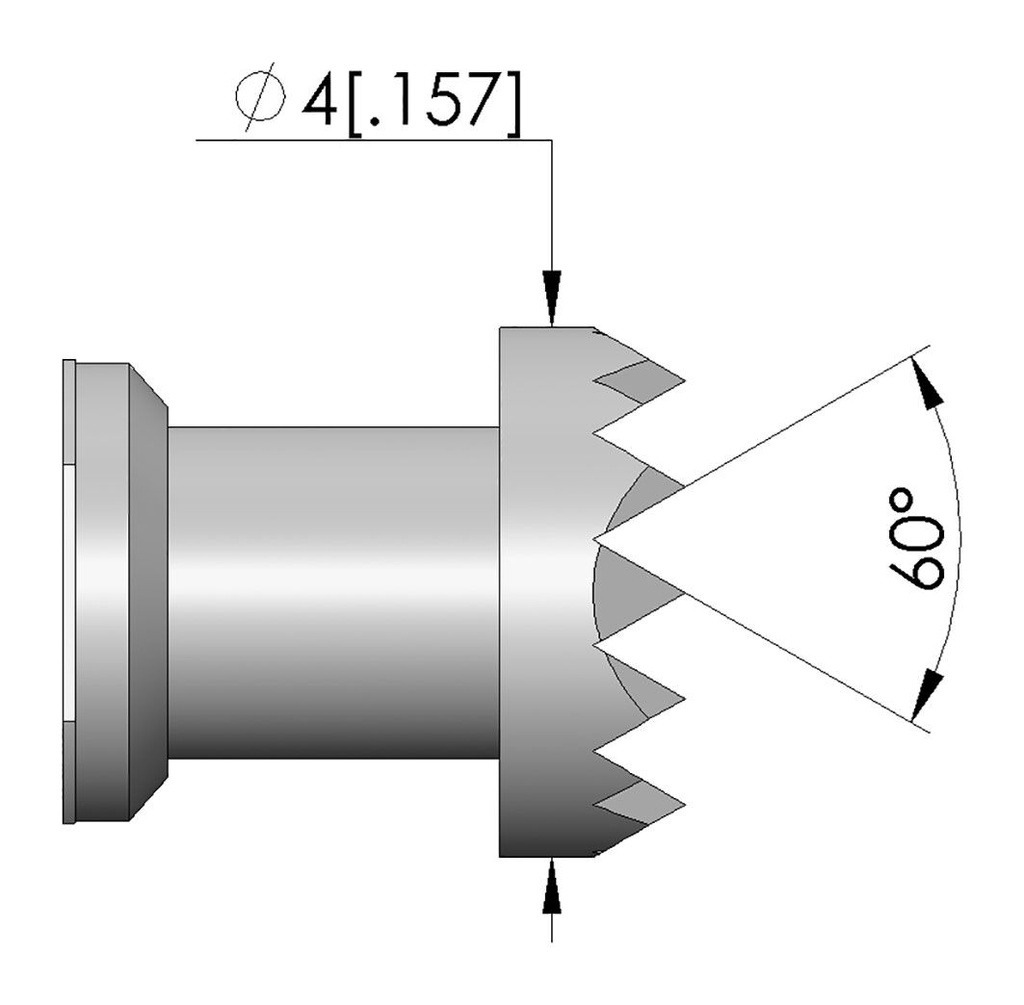

    Tip diameter 4mm
    Type of test accessories test probe
    Operational spring compression 2mm
