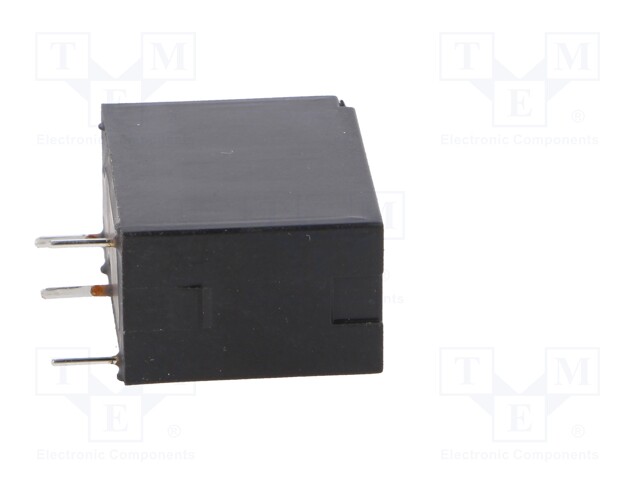

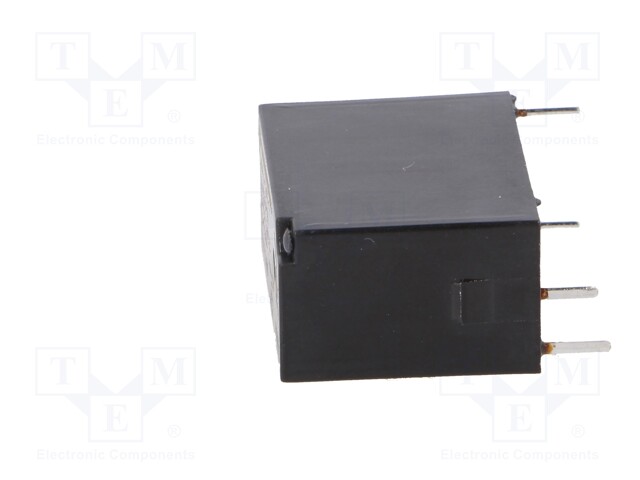

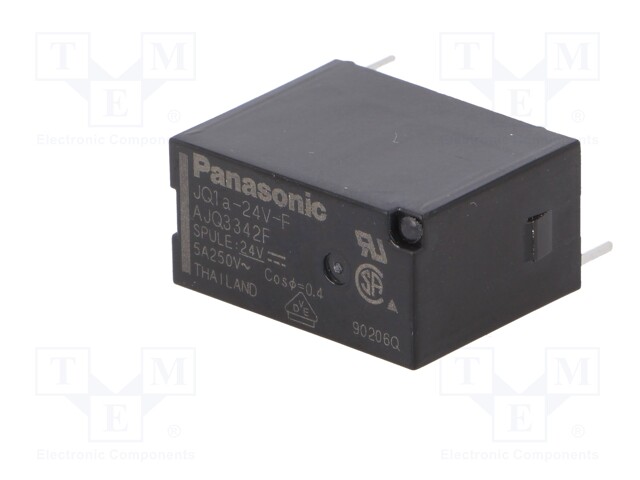

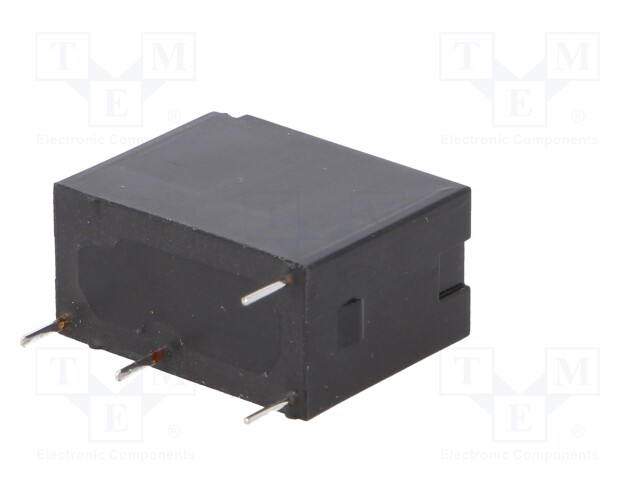

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/125VAC; 5A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: JQ1A-24V-F
    Manufacturer: PANASONIC
    Manufacturer code: JQ1A-24V-F
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    1.75 € 1.75 € (wo VAT) 1.75 EUR

    1.75 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/125VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub>
    Body dimensions 20x10x15.6mm
    Mechanical durability 50000000cycles
    Switched voltage max. 110V DC, max. 250V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 125V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 200mW
    Coil current 8.3mA
