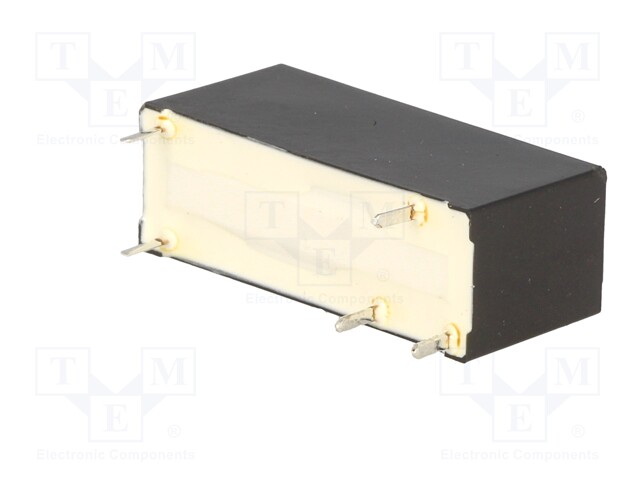

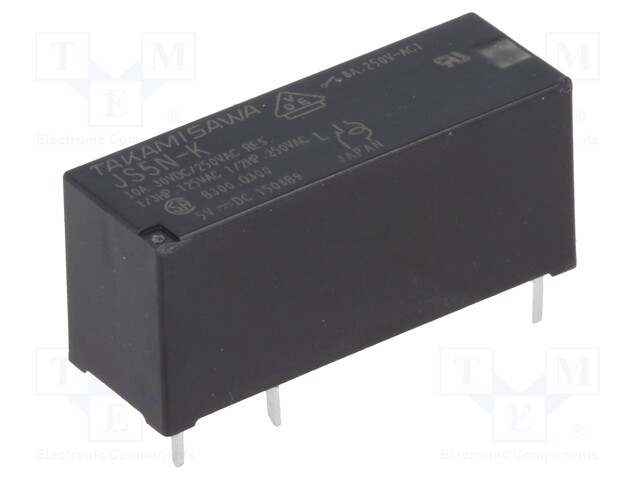

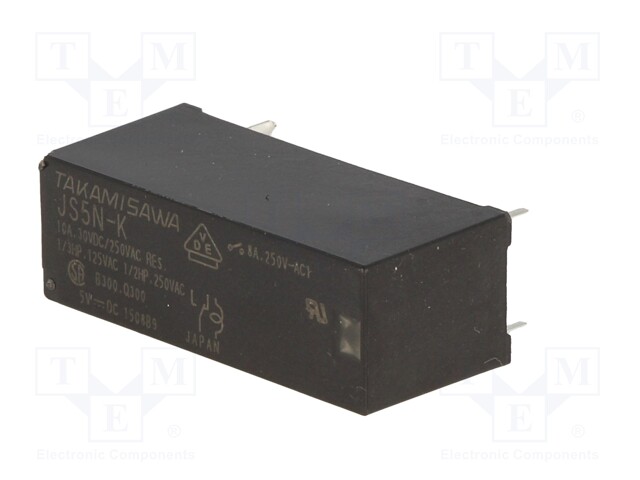

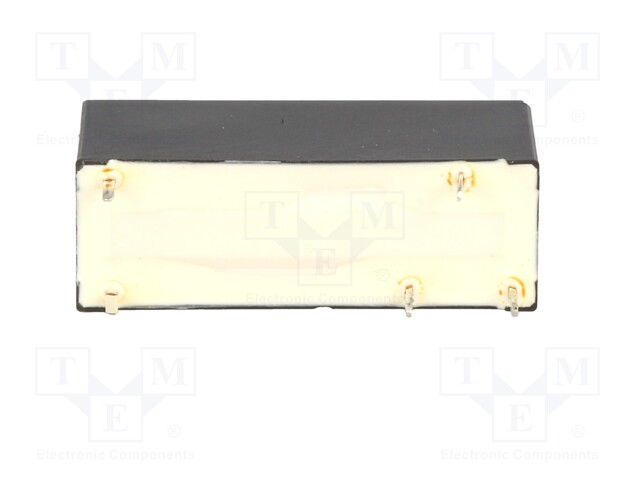

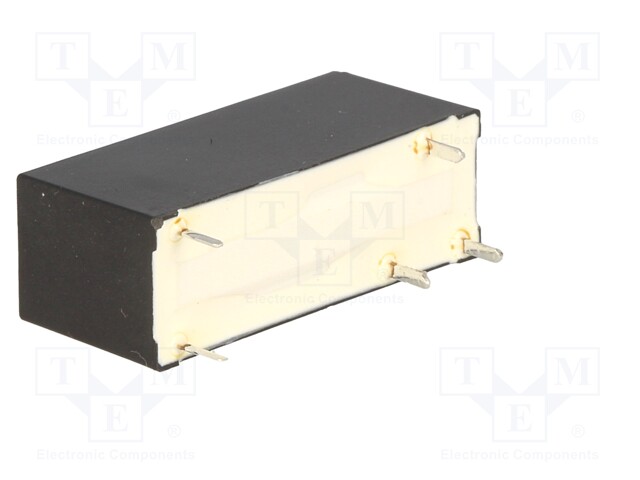

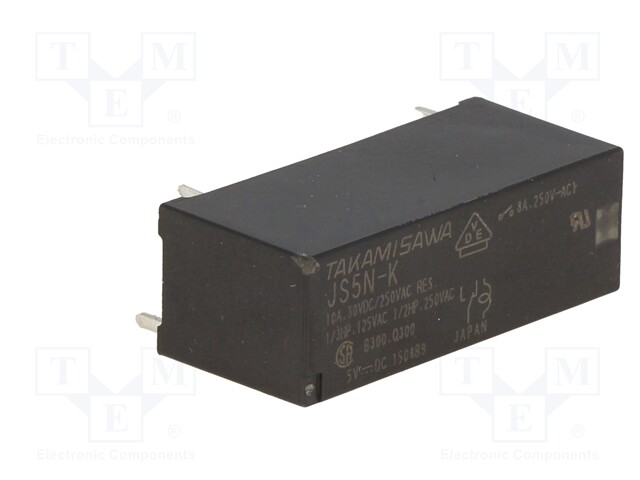

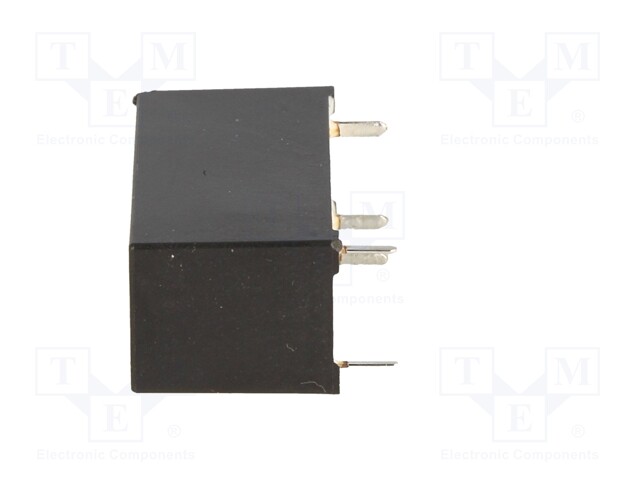

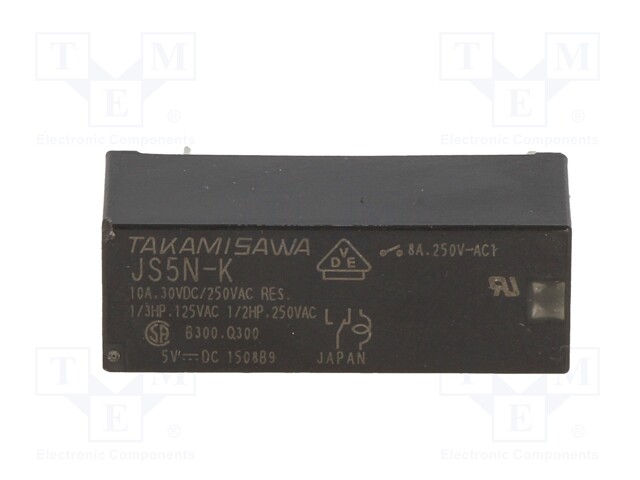

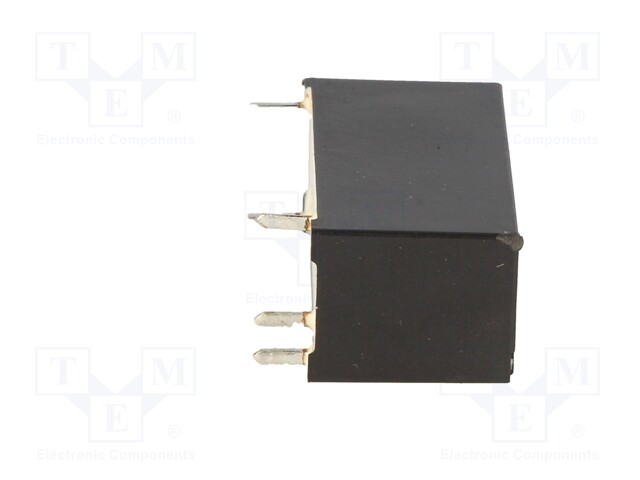

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A/250VAC; 8A/24VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: JS-5N-K
    Manufacturer: FCL Components
    Manufacturer code: JS-5N-K
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Operate time
    • Release time

    3.90 € 3.90 € (wo VAT) 3.9 EUR

    3.90 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A/250VAC; 8A/24VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub>

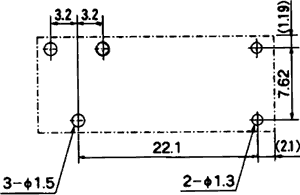

    Terminal pitch 3.2mm
    Body dimensions 29x10x12.5mm
    Switched voltage max. 150V DC, max. 400V AC
    Coil resistance 112Ω
    Rated coil voltage 5V DC

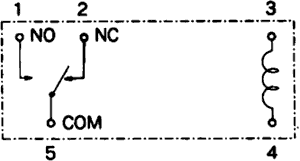

    Contacts configuration SPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 11.8V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Operate time 10ms
    Release time 5ms
