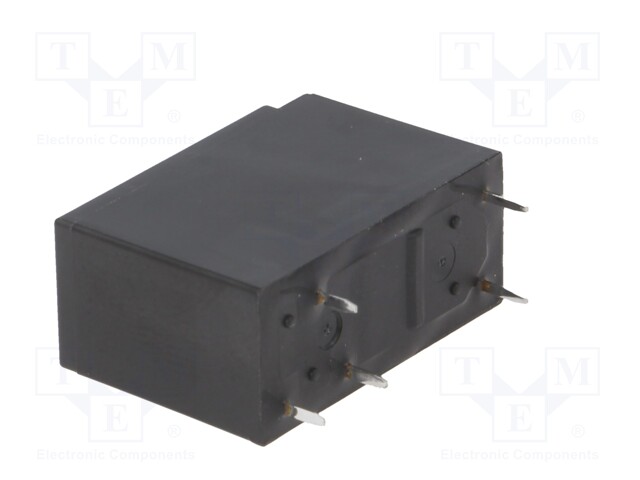

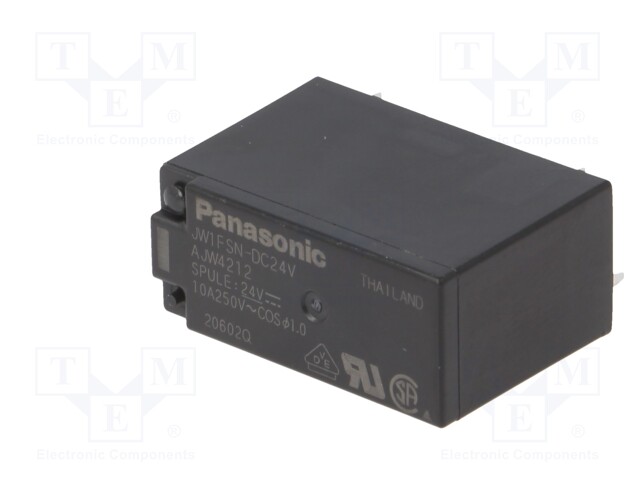

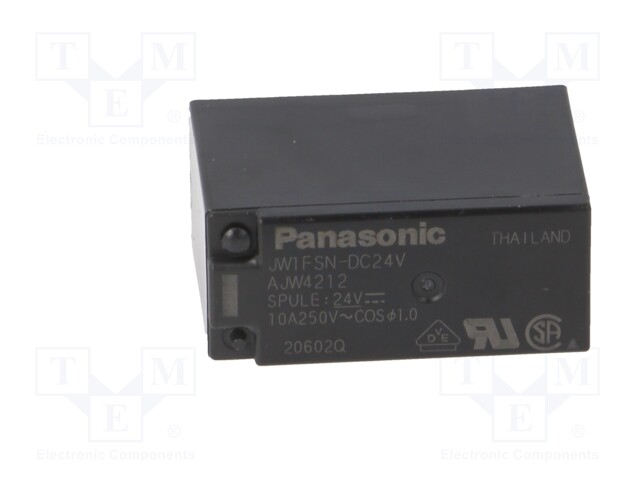

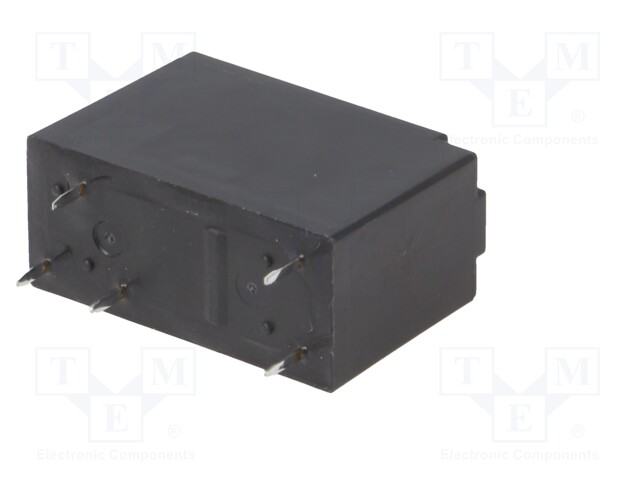

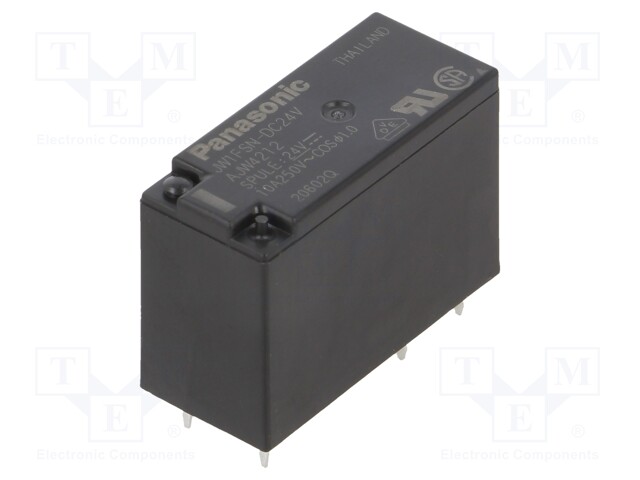

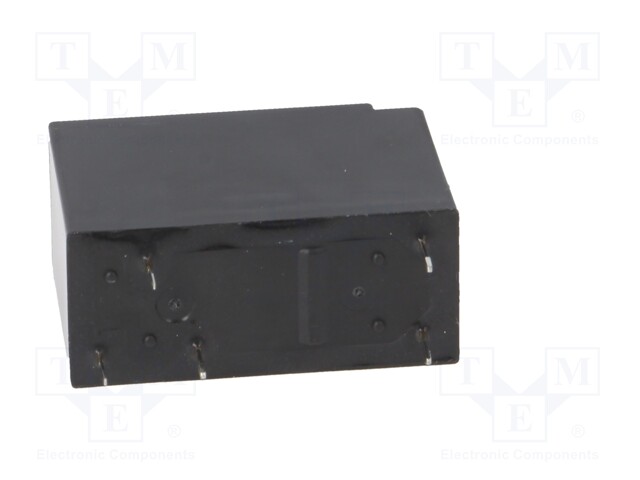

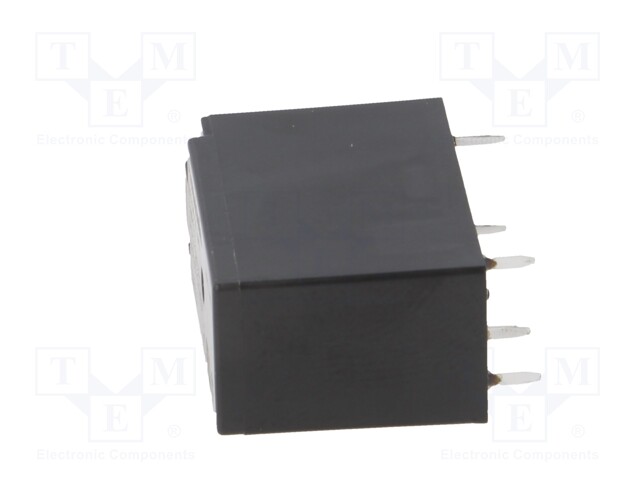

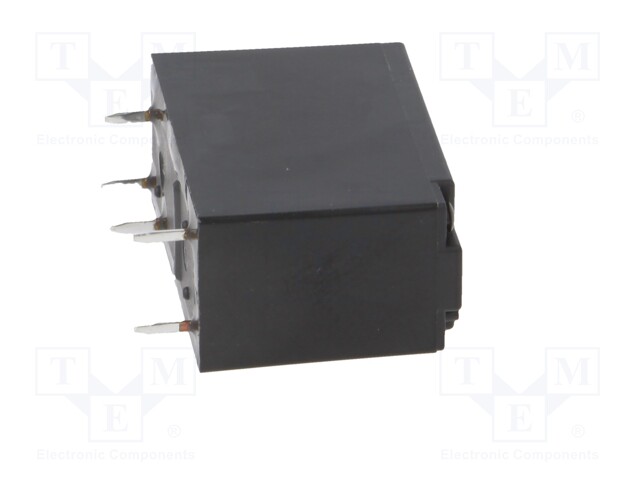

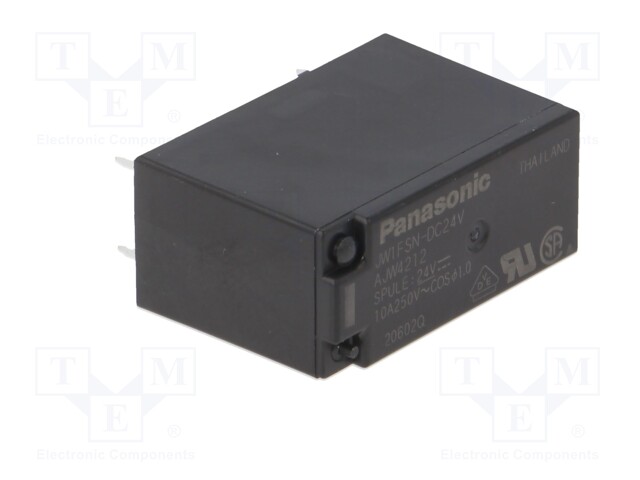

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: JW1FSN24ULCSAT
    Manufacturer: PANASONIC
    Manufacturer code: JW1FSN24ULCSAT
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    4.16 € 4.16 € (wo VAT) 4.16 EUR

    4.16 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgNi
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 530mW
    Coil current 22mA
