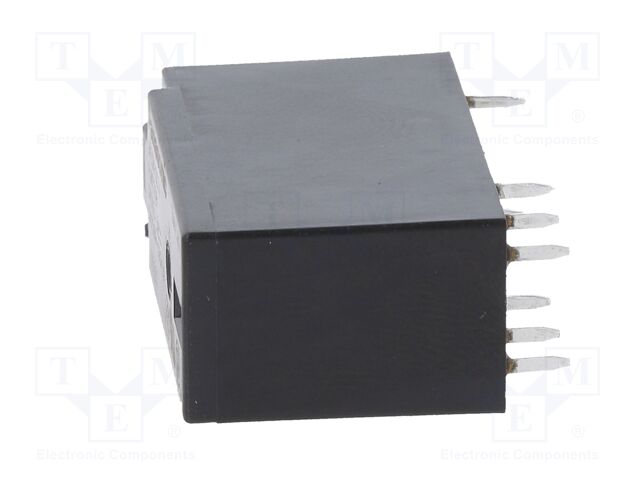

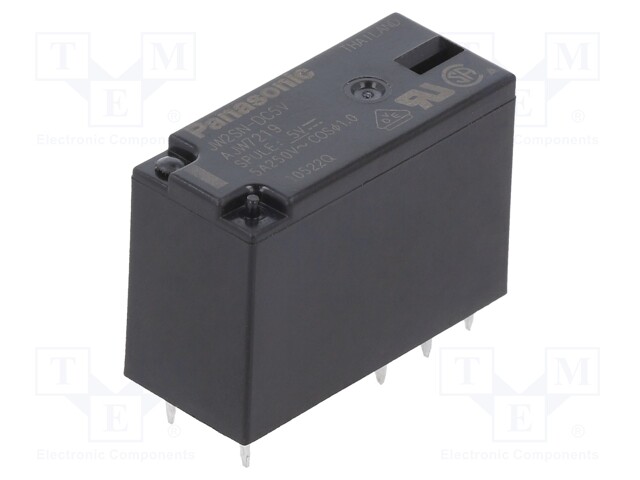

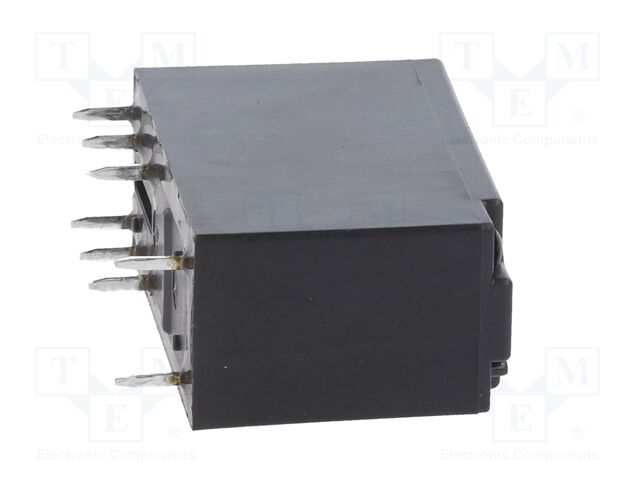

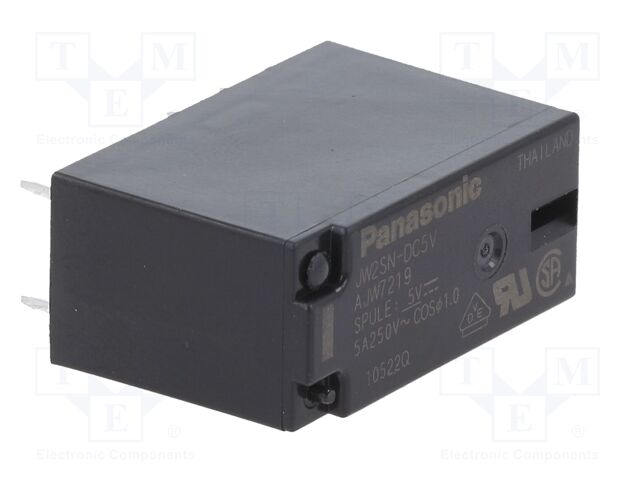

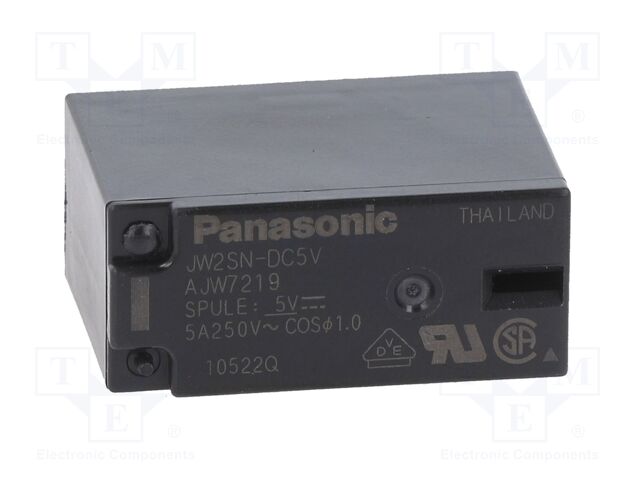

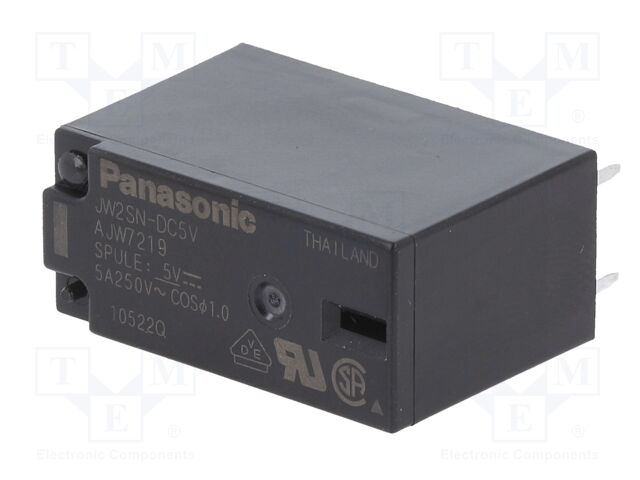

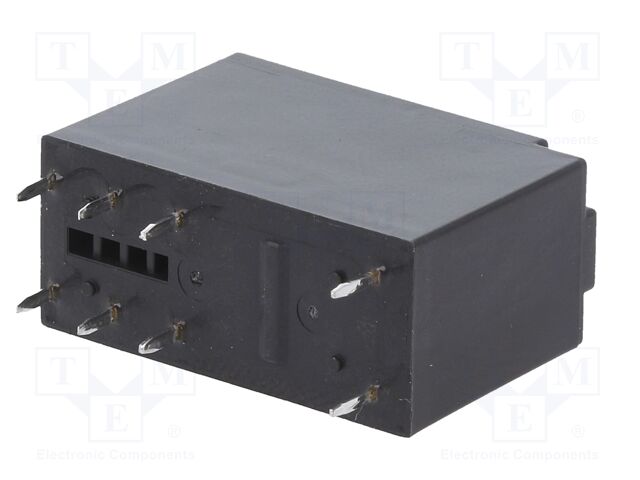

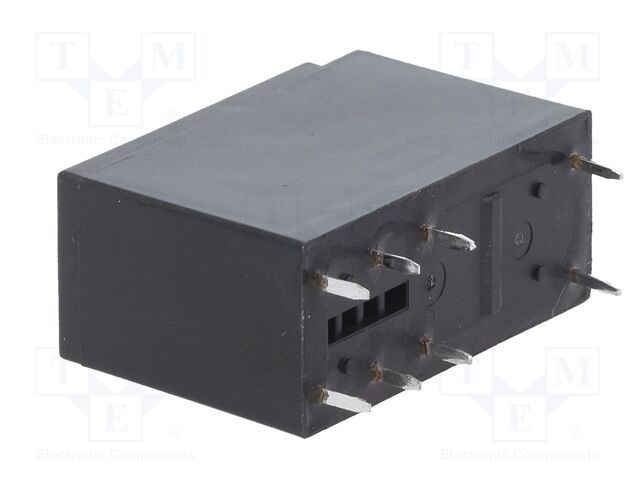

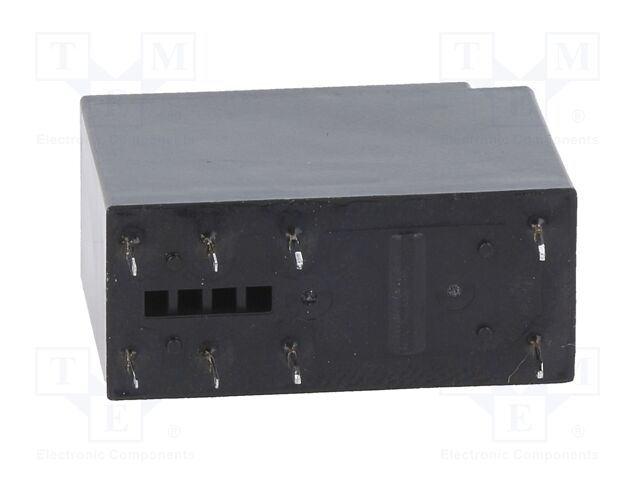

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC

    Multiples: 500.0
    Minimum quantity: 500.0
    Product code: JW2SN5ULCSAT
    Manufacturer: PANASONIC
    Manufacturer code: JW2SN5ULCSAT
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    2.92 € 2.92 € (wo VAT) 2.92 EUR

    2.92 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgNi
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 47Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 530mW
    Coil current 106mA
