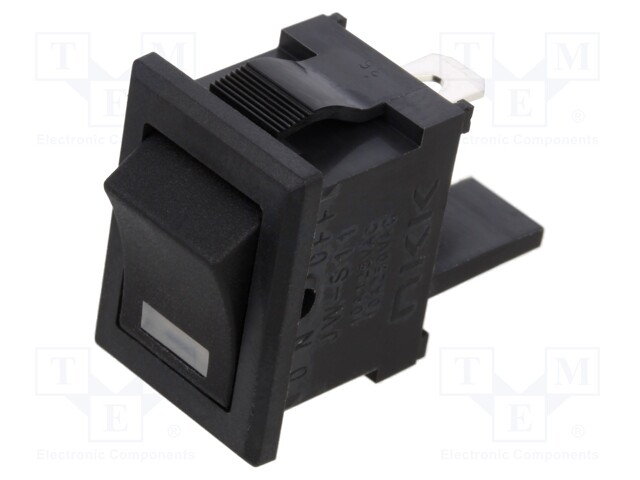

ROCKER; SPST; Pos: 2; ON-OFF; 10A/125VAC; black; LED; Rcont max: 10mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: JWS11RAAF
    Manufacturer: NKK SWITCHES
    Manufacturer code: JWS11RAAF
    • Mounting
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body material
    • Body colour
    • Mechanical durability
    • Number of terminals
    • Backlight colour
    • Illumination
    • Shape
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Key button colour

    8.42 € 8.42 € (wo VAT) 8.42 EUR

    8.42 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; SPST; Pos: 2; ON-OFF; 10A/125VAC; black; LED; Rcont max: 10mΩ

    Mounting on panel, SNAP-IN
    Operating temperature -25...50°C
    Type of switch ROCKER
    Contact plating silver plated
    Number of positions 2
    Leads for soldering, connectors
    Contact material brass
    Max. contact resistance: 10mΩ
    Body material polyamide
    Body colour black
    Mechanical durability 30000cycles
    Number of terminals 4
    Backlight colour green
    Illumination LED
    Shape rectangular
    Min. insulation resistance 500MΩ
    Electrical life 10000cycles
    Poles number 1
    Conform to the norm CSA, UL, VDE
    Contacts configuration SPST
    AC contacts rating @R 10A / 125V AC
    Switching method ON-OFF
    Stable positions number 2
    Operating Force 3.92N
    Button shape rectangular
    Key button colour black
