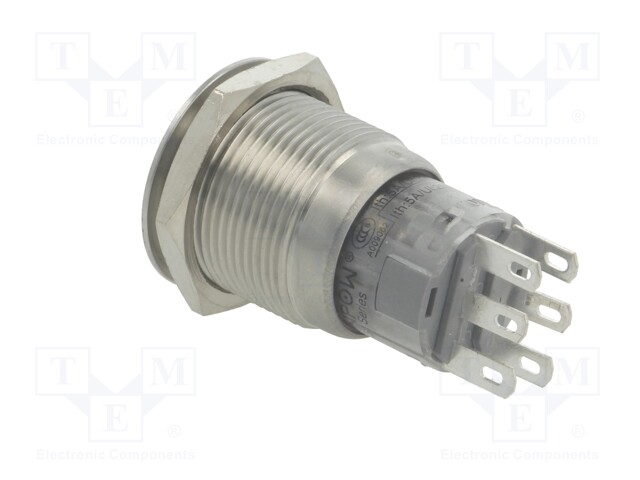

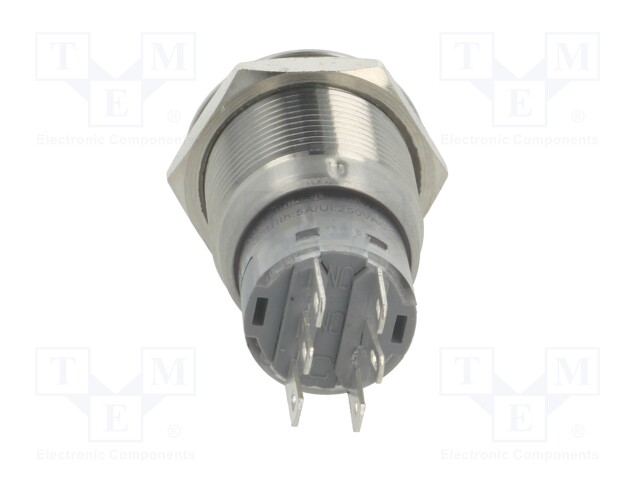

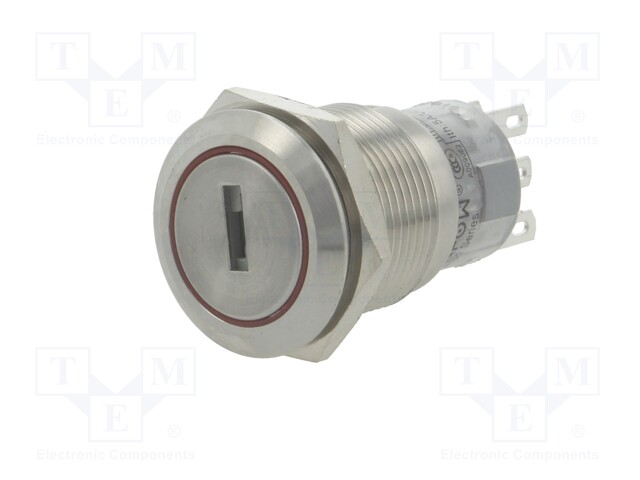

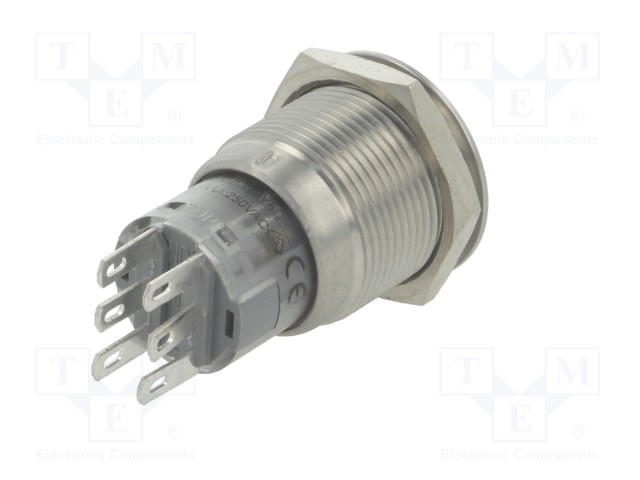

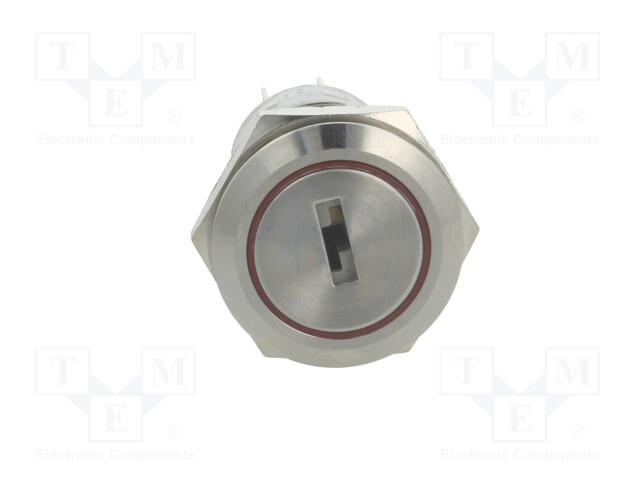

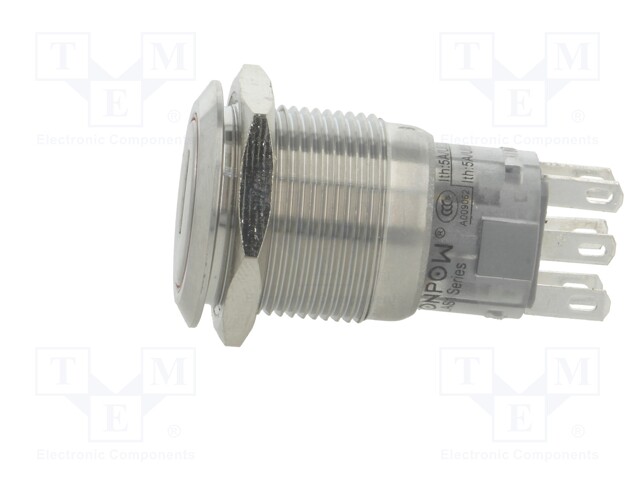

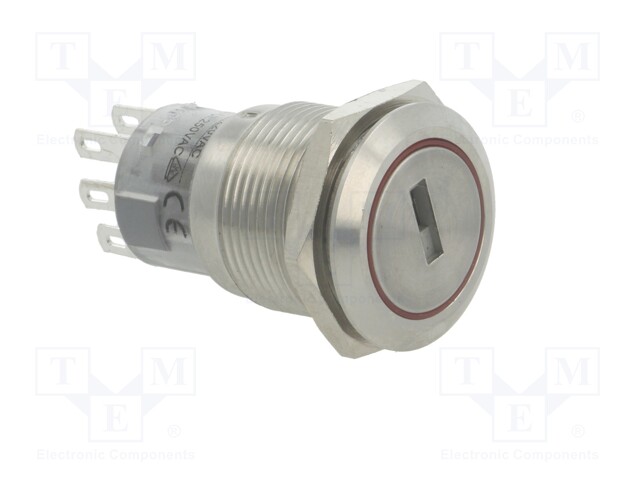

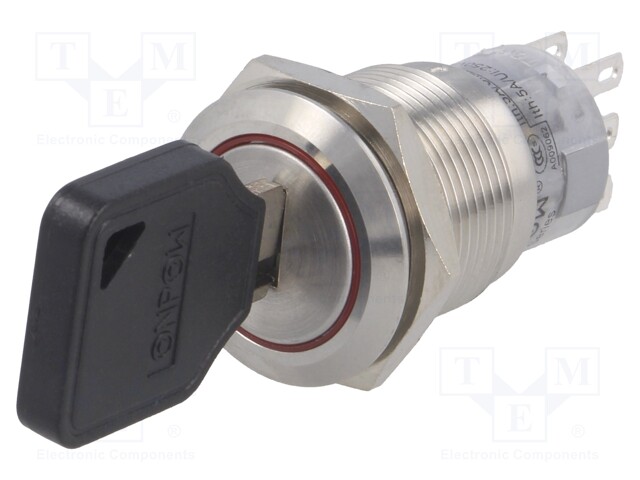

Switch: key switch; Stabl.pos: 3; Contacts: 3PST; Ø19mm; Key: flat

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: LAS1-AGQ-22Y/31/S
    Manufacturer: ONPOW
    Manufacturer code: LAS1-AGQ-22Y/31/S
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Number of terminals
    • Illumination
    • Electrical life
    • Mechanical rotation angle
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Switching method
    • Stable positions number
    • Ring shape
    • Key shape
    • Kind of key

    15.32 € 15.32 € (wo VAT) 15.32 EUR

    15.32 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: key switch; Stabl.pos: 3; Contacts: 3PST; Ø19mm; Key: flat

    Operating temperature -20...55°C
    IP rating IP40
    Type of switch key switch
    Switches features the key can be removed at any position
    Number of positions 3
    Leads for soldering
    Contact material silver alloy
    Max. contact resistance: 50mΩ
    Body material stainless steel

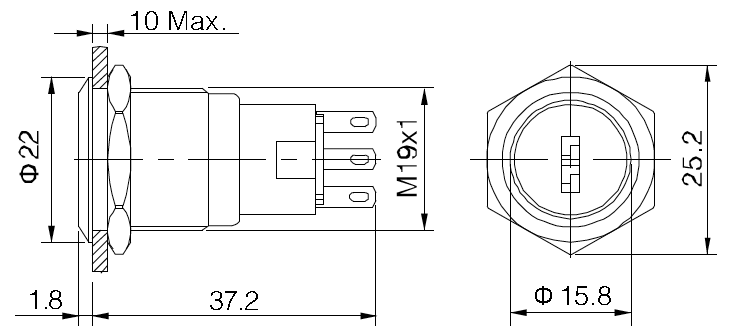

    Mounting hole diameter Ø19mm
    Body colour silver
    Mechanical durability 200000cycles
    Number of terminals 6
    Illumination none
    Electrical life 50000cycles
    Mechanical rotation angle 45°
    Test voltage 1.5kV
    Contacts configuration 3PST
    DC contacts rating @R 1A / 24V DC
    AC contacts rating @R 0.5A / 220V AC
    Switching method OFF-ON-ON - line 1, ON-ON-OFF - line 2
    Stable positions number 3
    Ring shape rounded

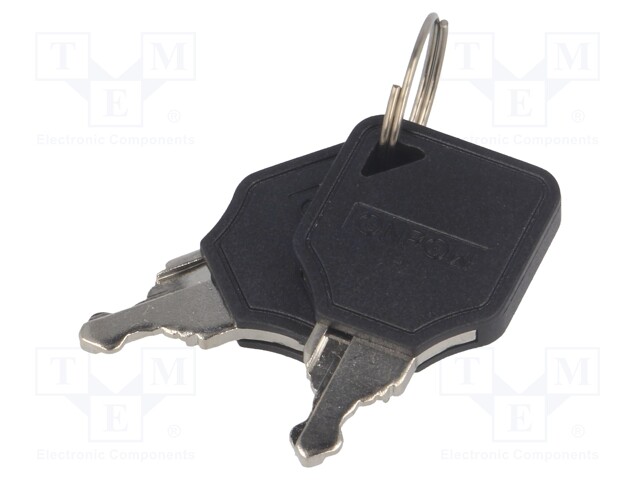

    Key shape flat
    Kind of key symmetrical
