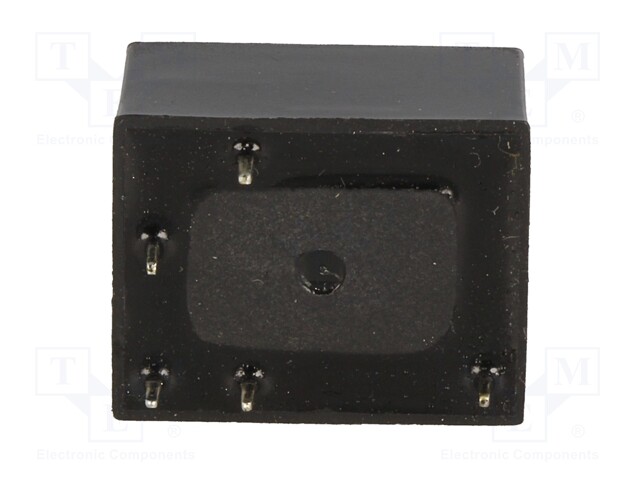

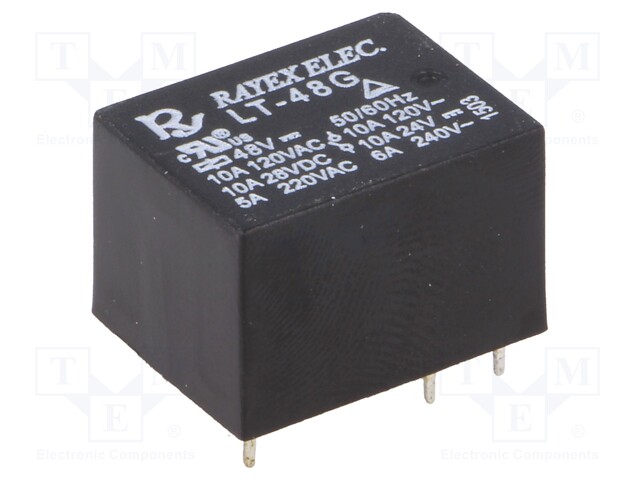

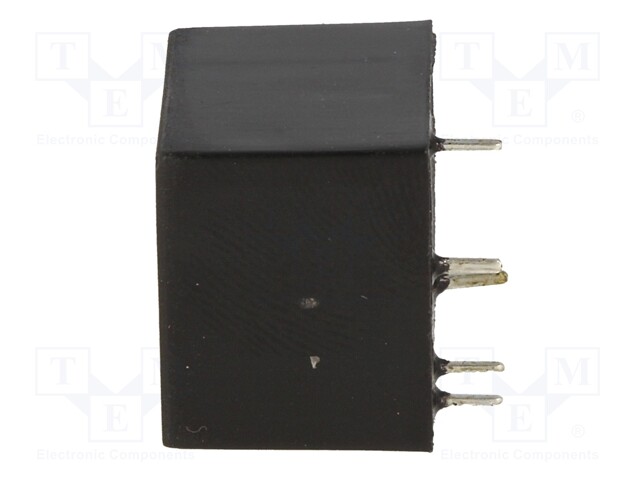

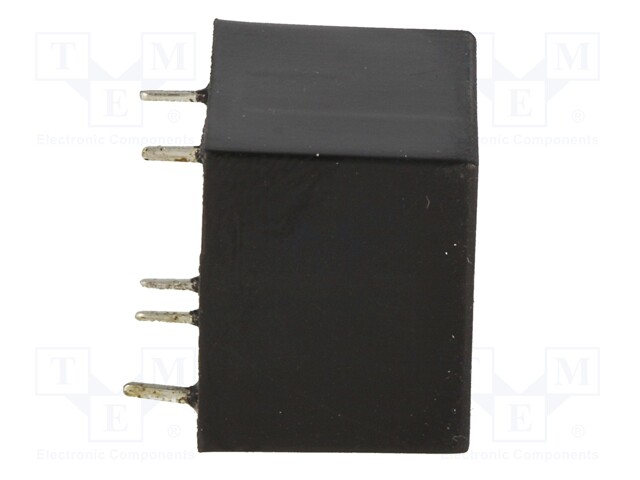

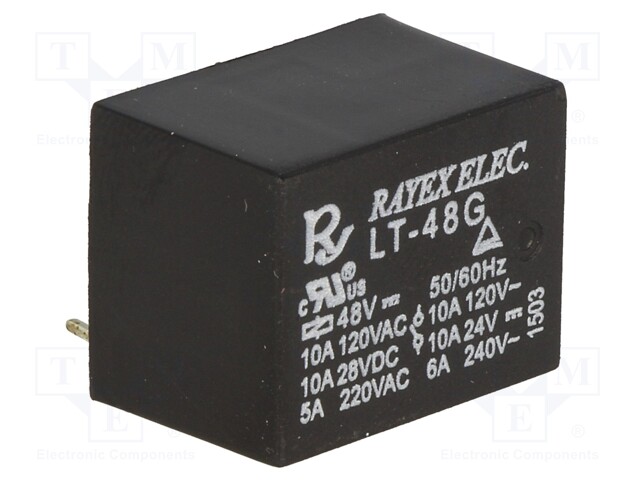

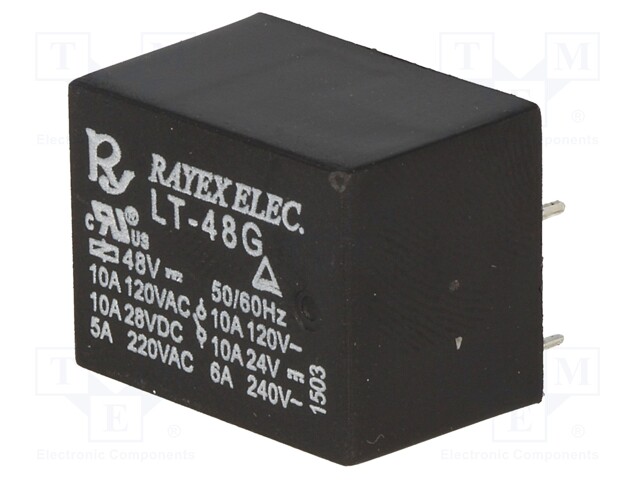

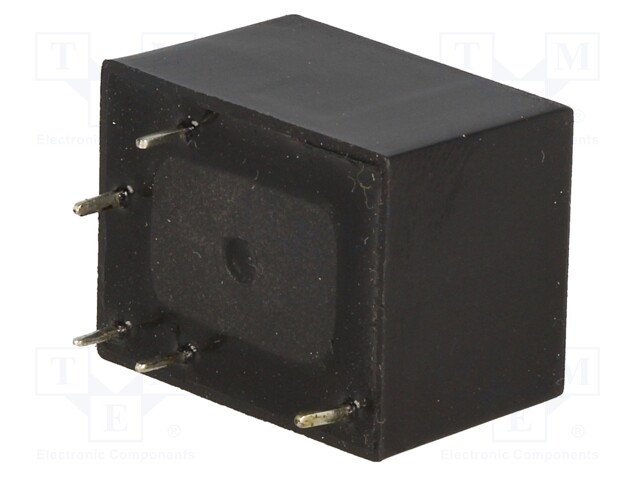

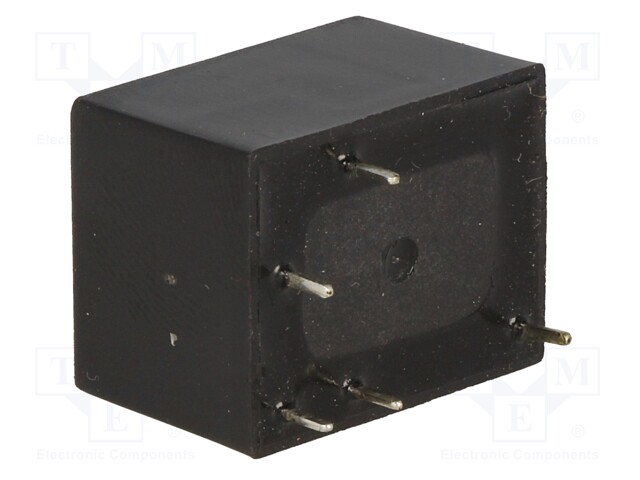

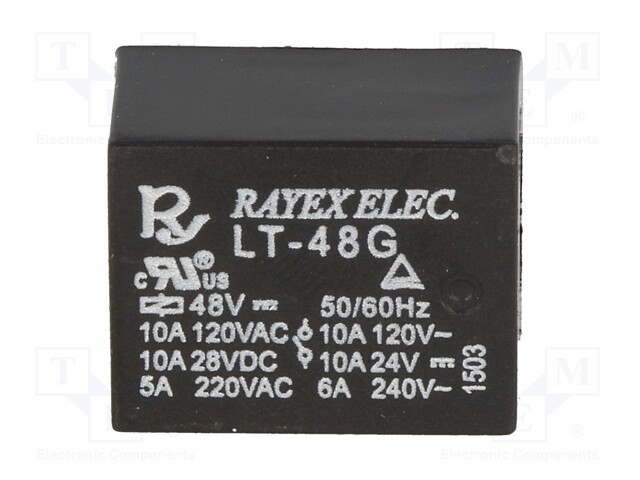

Relay: electromagnetic; SPDT; Ucoil: 48VDC; 10A/120VAC; 10A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: LT-48G
    Manufacturer: RAYEX ELECTRONICS
    Manufacturer code: LT-48G
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1.98 € 1.98 € (wo VAT) 1.98 EUR

    1.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 48VDC; 10A/120VAC; 10A/24VDC

    Mounting PCB
    Operating temperature -25...60°C
    Contact material AgCdO
    Terminal pitch 5mm
    Body dimensions 21.8x16.8x14.2mm
    Switched voltage max. 100V DC, max. 240V AC
    Coil resistance 4.6kΩ
    Rated coil voltage 48V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 120V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 450mW
    Operate time 10ms
    Release time 10ms
    Coil current 10.4mA
