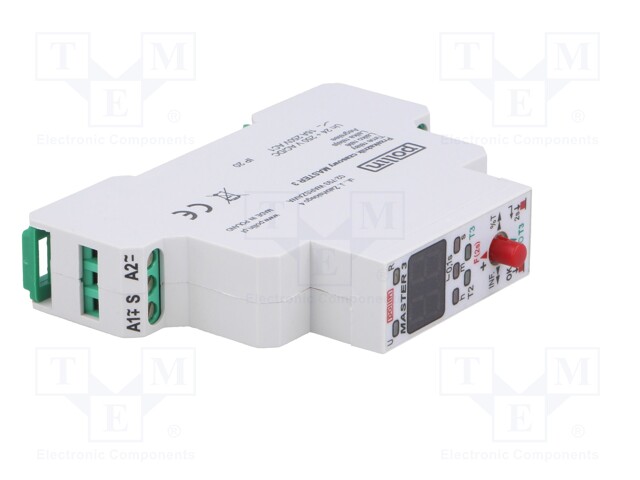

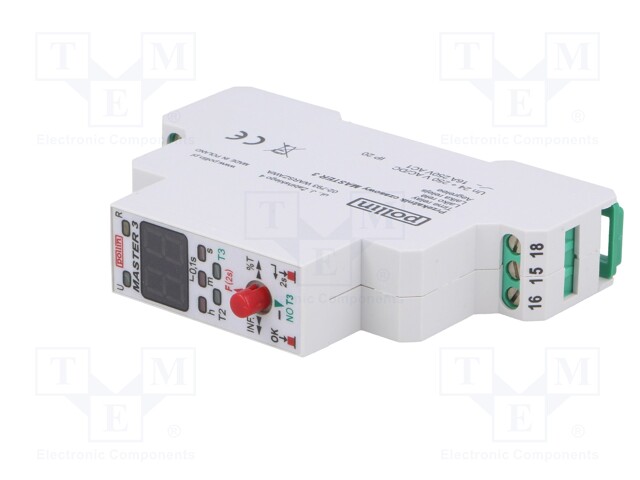

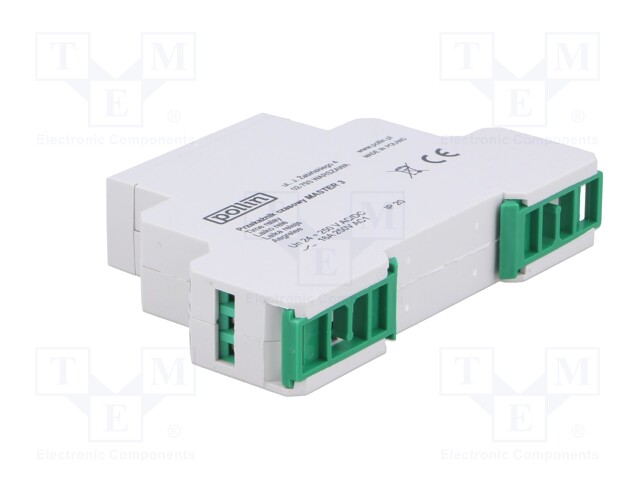

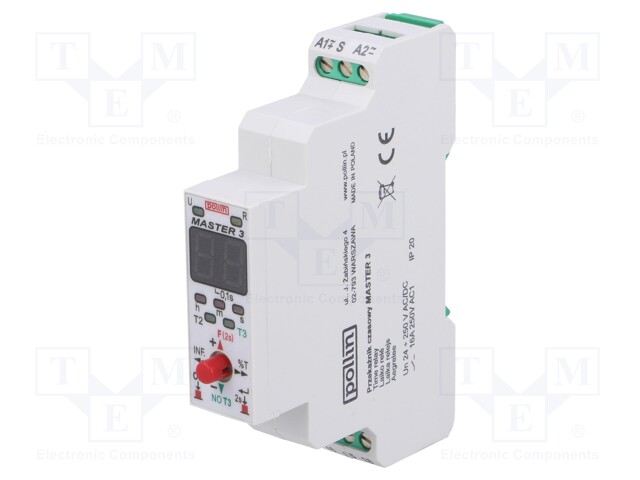

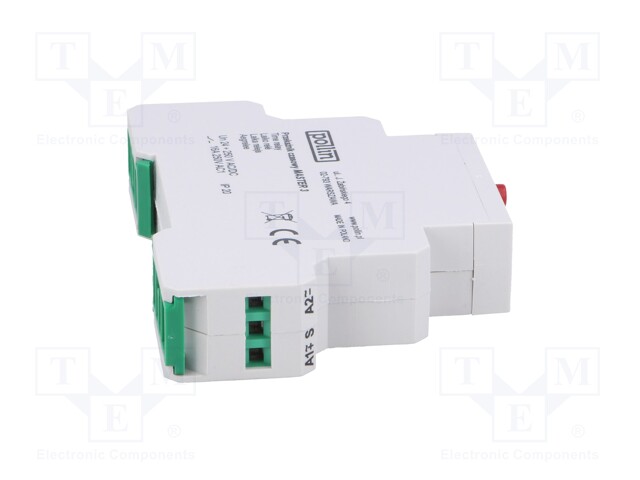

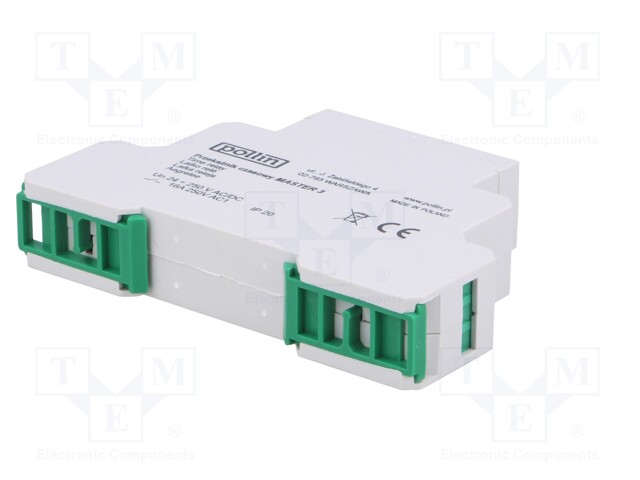

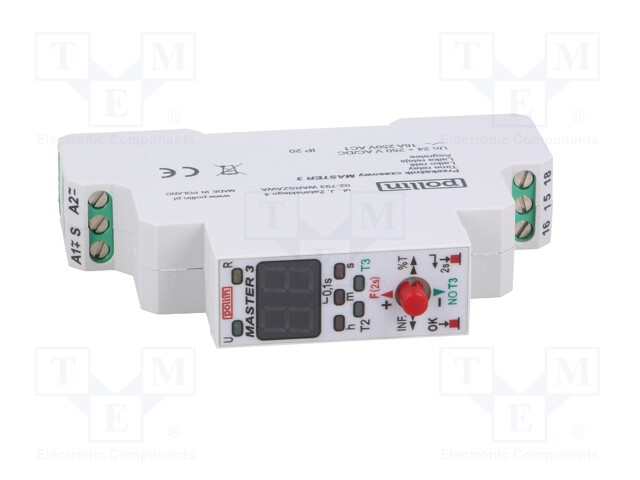

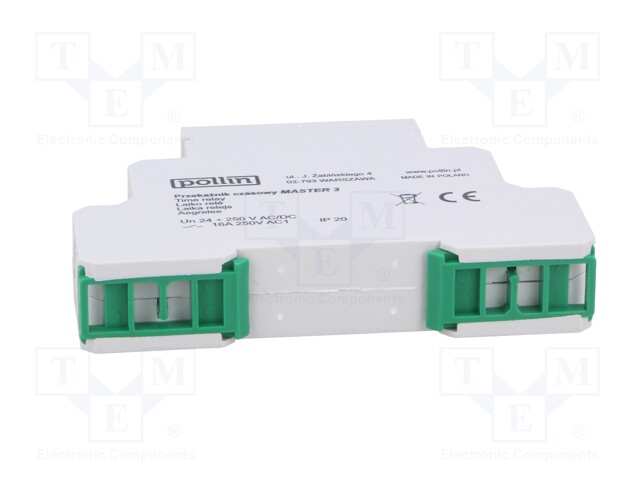

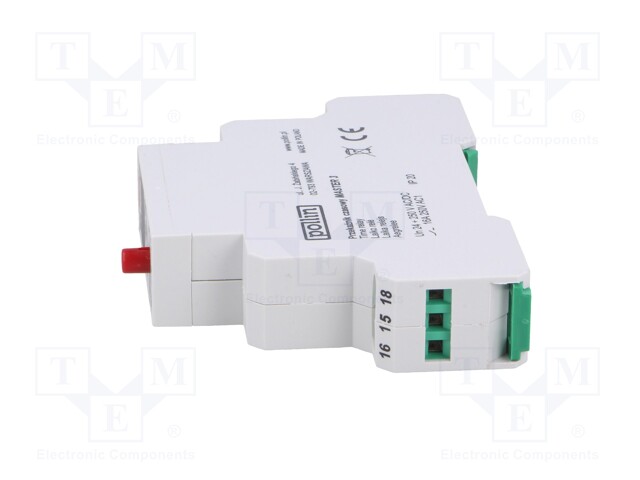

Specification for Timer; Range: 0,1s÷99h59min59,9s; SPDT; 24÷250VAC; 24÷250VDC; DIN
Mounting
for DIN rail mounting
Supply voltage
24...250V AC,
24...250V DC
Operating temperature
-20...50°C
IP rating
IP20
Number of pins
6
Kind of display used
LED
Kind of output
SPDT
Electrical connection
screw terminals
Counting range
0,1s...99h59min59,9s
Counter operation modes
cyclical operation with two independent times T1 and T2, pause first,
cyclical operation with two independent times T1 and T2, pulse first,
delayed switching off,
delayed switching on,
ON and OFF delay,
with the control contact S
