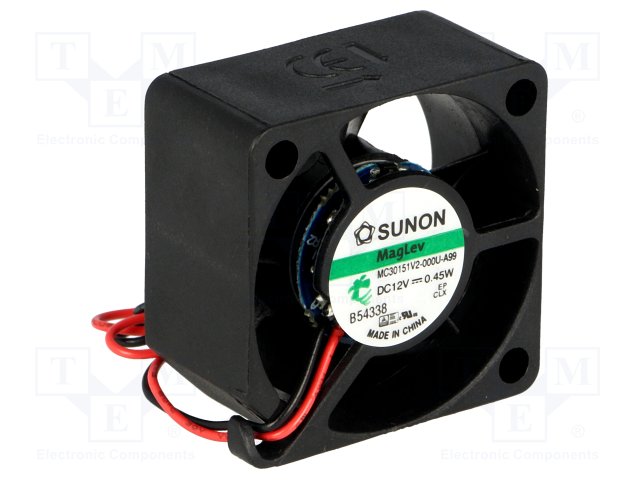

Fan: DC; axial; 12VDC; 30x30x15mm; 8.16m3/h; 20dBA; Vapo; 4.57mmH2O

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MC30151V2-000U-A99
    Manufacturer: SUNON
    Manufacturer code: MC30151V2-000U-A99
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Wire size
    • Weight
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level
    • Current and power consumption tolerance

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 12VDC; 30x30x15mm; 8.16m3/h; 20dBA; Vapo; 4.57mmH2O

    Supply voltage 12V DC
    Operating voltage 6...13.8V
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Leads 2 leads
    Flammability rating UL94V-0
    Cable length 150mm
    Wire size 28AWG
    Weight 13.2g
    Current rating 37mA
    Fan efficiency 8.16m<sup>3</sup>/h
    Power consumption 450mW
    Additional functions Autorestart
    Rotational rate/speed 7000 (±20%)rpm
    Fan motor brushless DC motor
    Fan dimensions 30x30x15mm
    Kind of Bearing Vapo
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 4.57mm H<sub>2</sub>O
    Noise level 20dBA
    Current and power consumption tolerance ±15%
