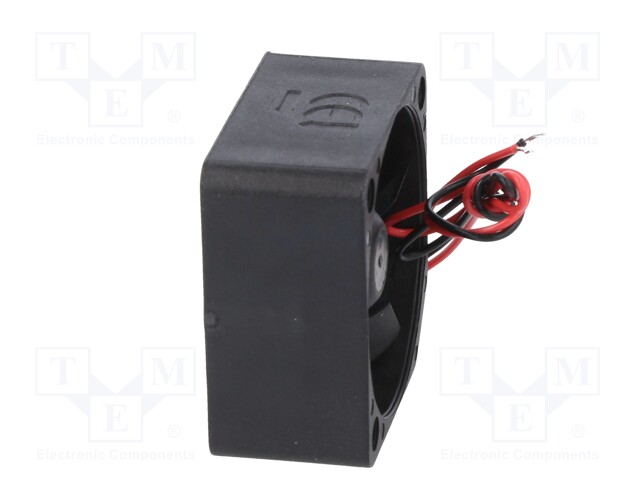

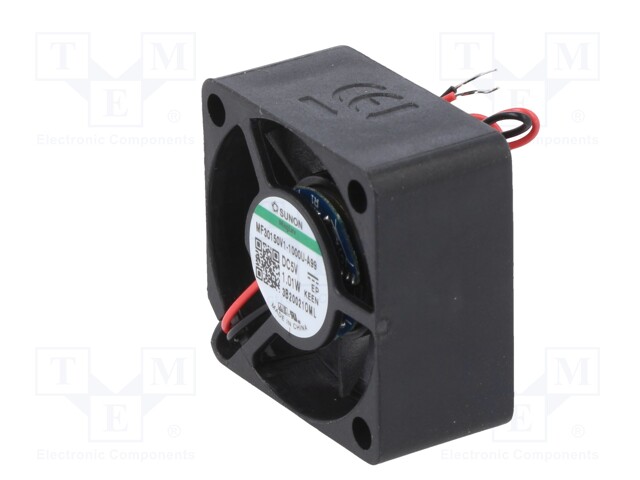

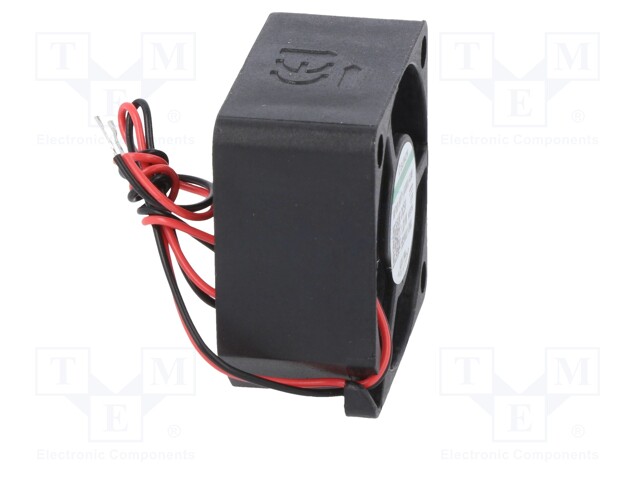

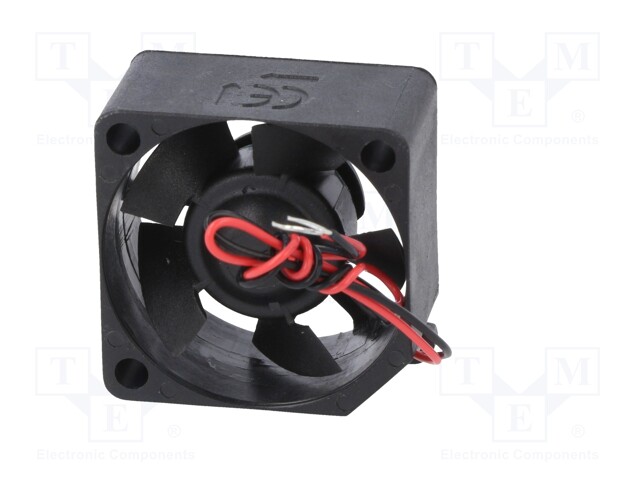

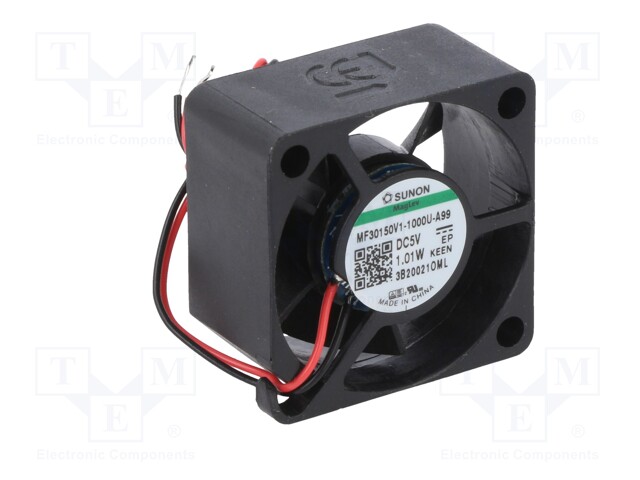

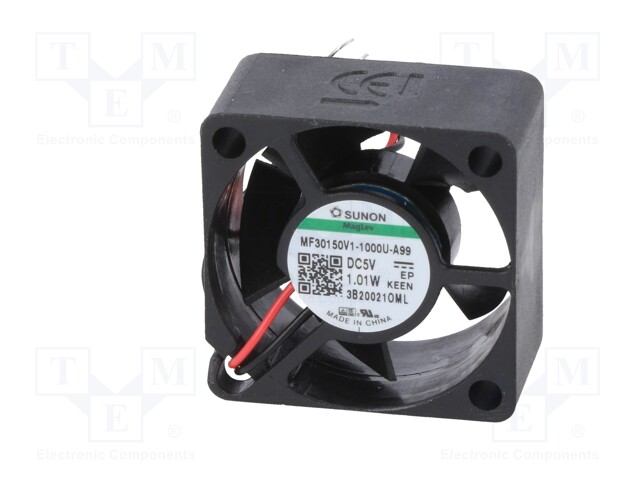

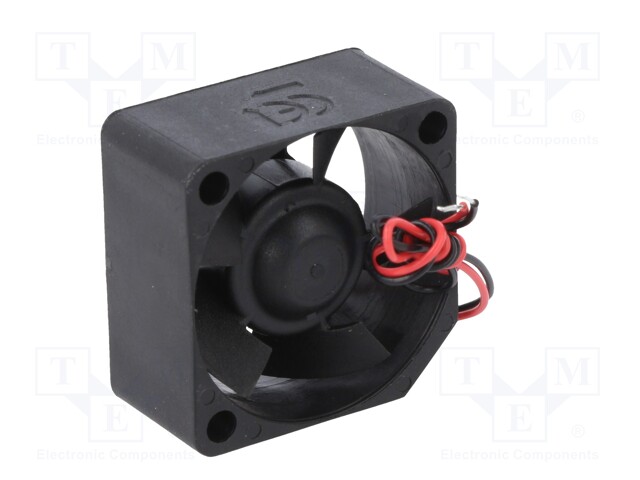

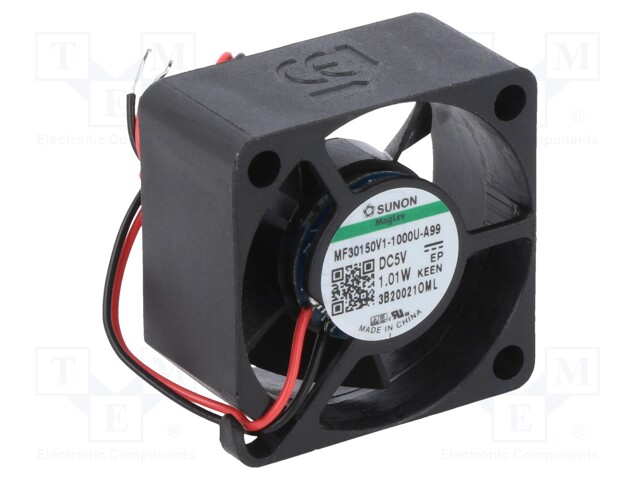

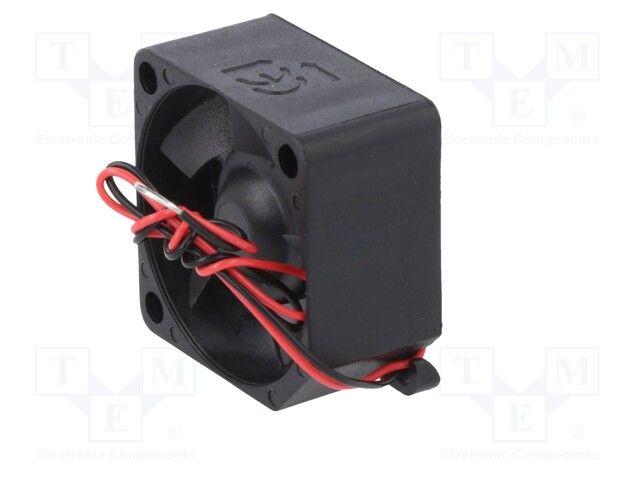

Fan: DC; axial; 5VDC; 30x30x15mm; 10.19m3/h; 27dBA; Vapo; 9500rpm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MF30150V1-1000U-A99
    Manufacturer: SUNON
    Manufacturer code: MF30150V1-1000U-A99
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    7.95 € 7.95 € (wo VAT) 7.95 EUR

    7.95 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 5VDC; 30x30x15mm; 10.19m3/h; 27dBA; Vapo; 9500rpm

    Supply voltage 5V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 140mA
    Fan efficiency 10.19m<sup>3</sup>/h
    Power consumption 700mW
    Additional functions Autorestart
    Rotational rate/speed 9500rpm
    Fan motor brushless DC motor
    Fan dimensions 30x30x15mm
    Kind of Bearing Vapo
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 4.31mm H<sub>2</sub>O
    Noise level 27dBA
