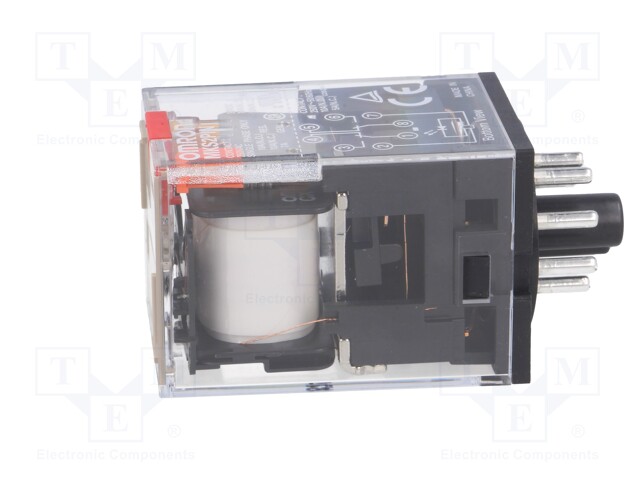

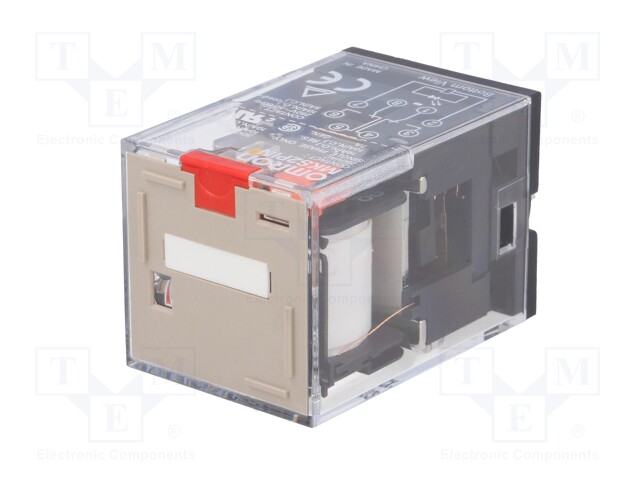

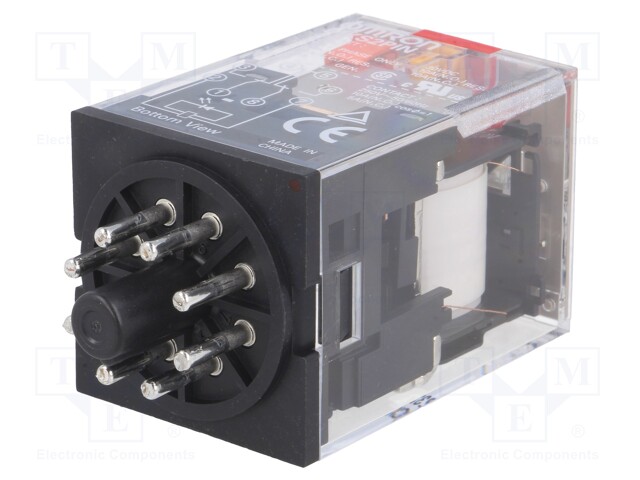

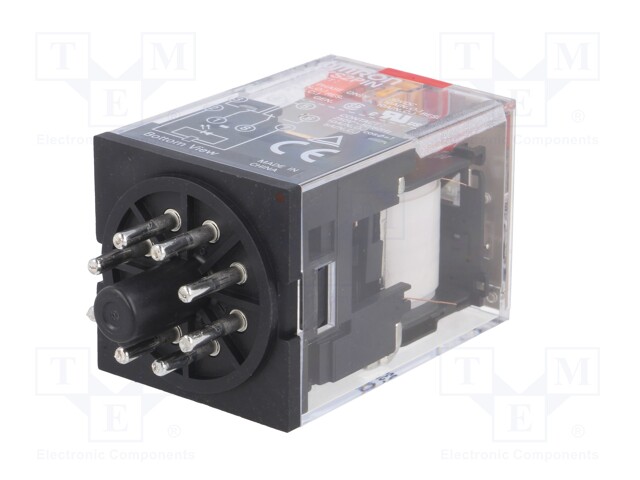

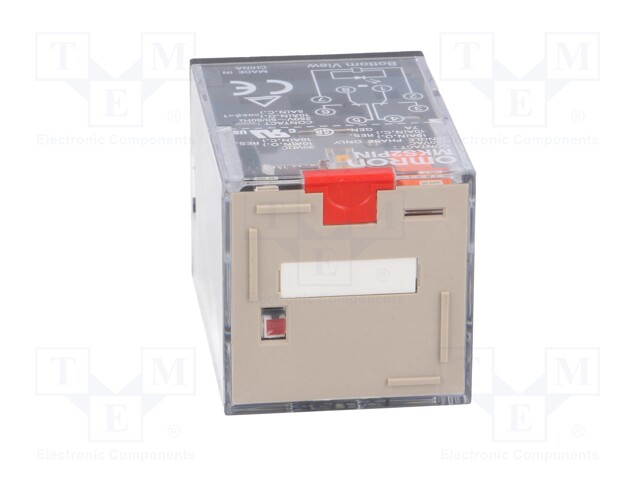

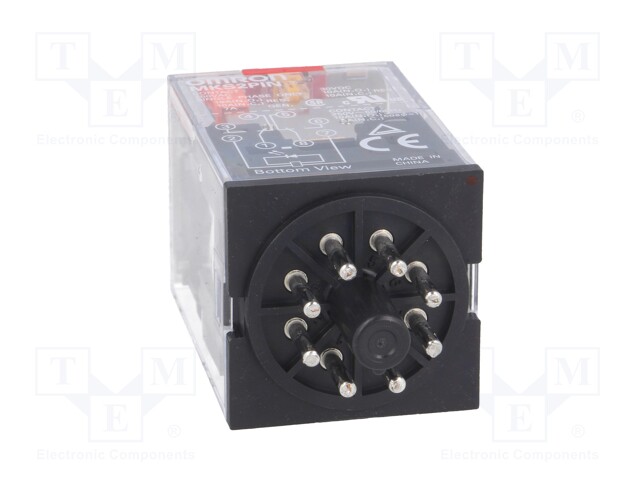

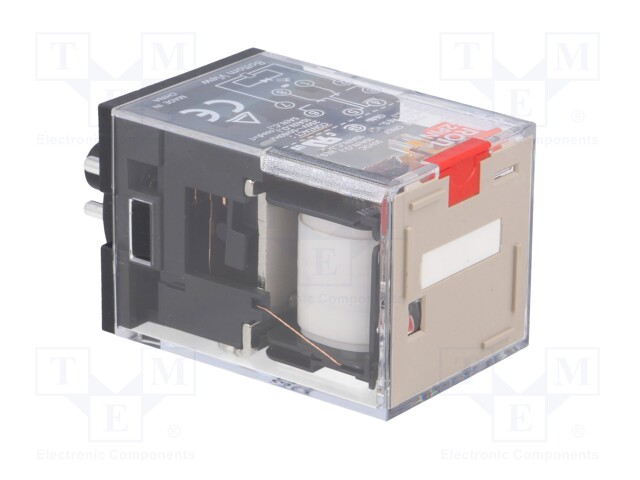

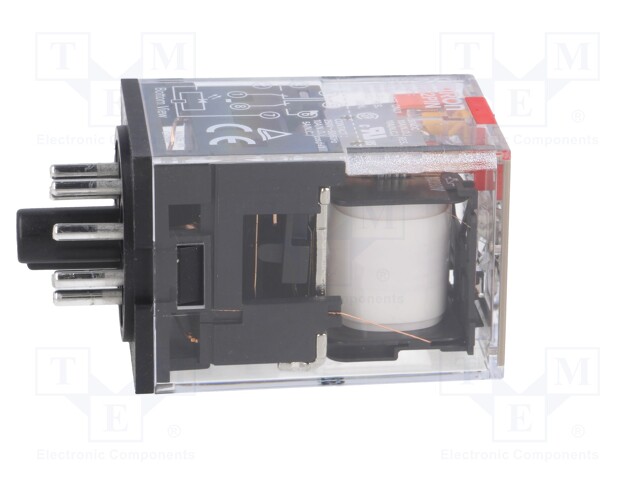

Relay: electromagnetic; DPDT; Ucoil: 230VAC; 10A/250VAC; 10A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MKS2PIN AC230
    Manufacturer: OMRON
    Manufacturer code: MKS2PIN AC230
    • Mounting
    • Operating temperature
    • Kind of connector
    • Leads
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Electrical connection
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Optional equipment
    • Optional equipment
    • Optional equipment

    16.55 € 16.55 € (wo VAT) 16.55 EUR

    16.55 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 230VAC; 10A/250VAC; 10A/30VDC

    Mounting socket
    Operating temperature -25...60°C
    Kind of connector octal
    Leads stud terminals
    Number of pins 8
    Contact material AgSnIn
    Body dimensions 34.5x34.5x52.5mm
    Switched voltage max. 250V AC, max. 250V DC
    Electrical connection round socket
    Coil resistance 4.25kΩ
    Contacts configuration DPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 2.3VA
    Optional equipment LED indicator, mechanical indicator, test button with blocking function
