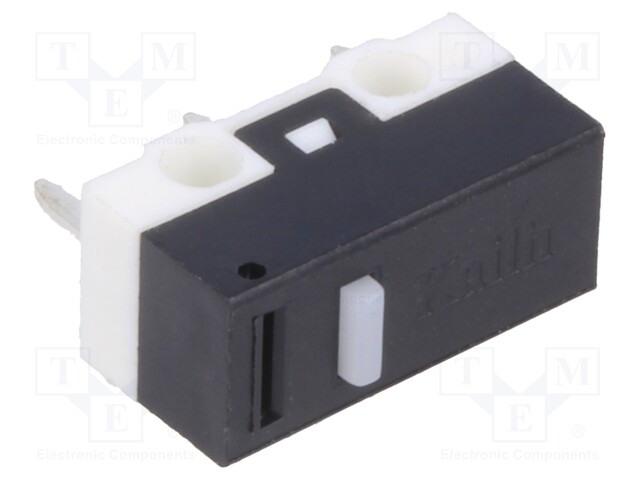

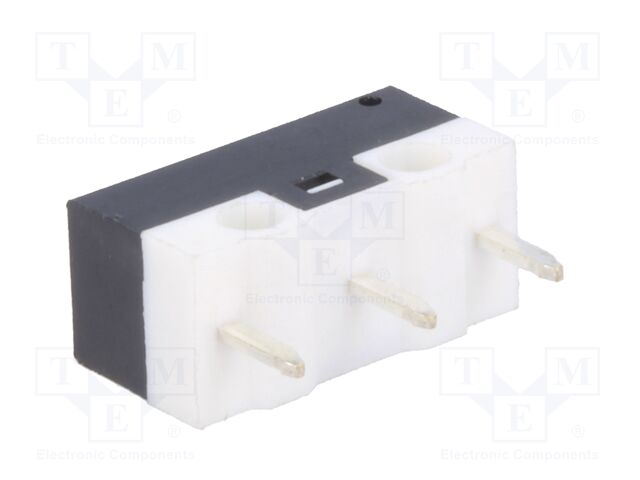

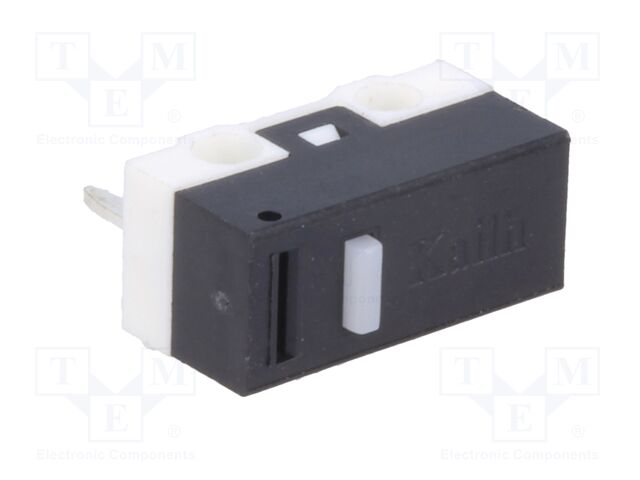

Microswitch SNAP ACTION; without lever; SPDT; Rcont max: 30mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MSW-21
    Manufacturer: NINIGI
    Manufacturer code: MSW-21
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance:
    • Terminal pitch
    • Maximum current
    • Body dimensions
    • Electrical life
    • Contacts configuration
    • Switching method
    • Stable positions number
    • Operating Force
    • Voltage min.

    0.95 € 0.95 € (wo VAT) 0.9500000000000001 EUR

    0.95 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch SNAP ACTION; without lever; SPDT; Rcont max: 30mΩ

    Operating temperature -25...65°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features without lever
    Number of positions 2
    Leads for PCB, straight
    Max. contact resistance: 30mΩ
    Terminal pitch 5.08mm
    Maximum current 1A

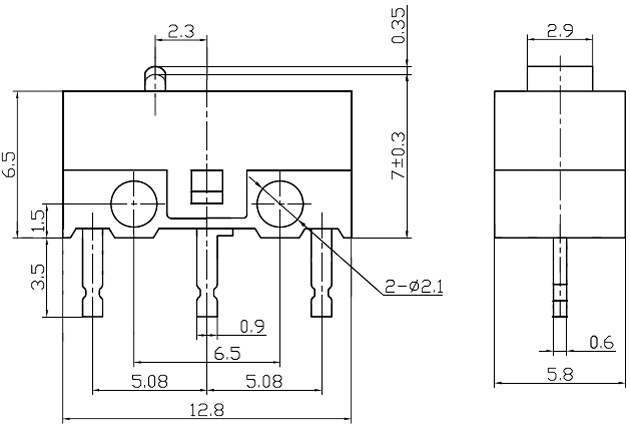

    Body dimensions 12.8x5.8x6.5mm
    Electrical life 30000cycles
    Contacts configuration SPDT
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 1N
    Voltage min. 125V
