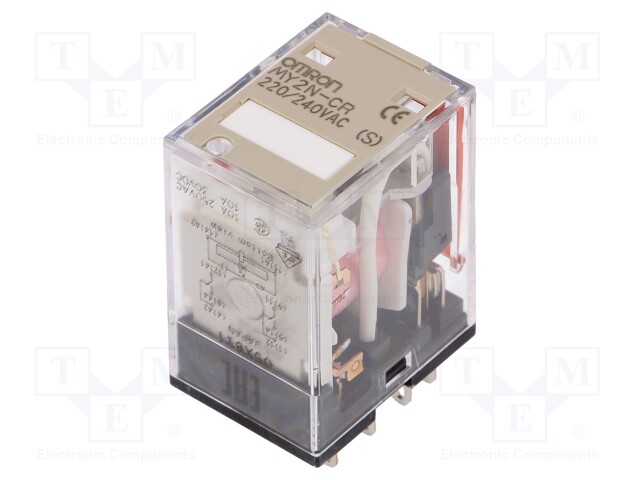

Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MY2N-CR-220/240AC
    Manufacturer:
    Manufacturer code:
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Indication
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    20.24 € 20.24 € (wo VAT) 20.240000000000002 EUR

    20.24 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A

    Mounting socket
    Operating temperature -55...70°C
    Leads 2,5x0,5mm connectors
    Body dimensions 28x21.5x36mm
    Switched voltage max. 125V DC, max. 250V AC
    Indication LED
    Coil resistance 18.79kΩ
    Contacts configuration DPDT
    DC contacts rating @R 10A / 24V DC
    AC contacts rating @R 10A / 220V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Relay series MY2
    Operate time 20ms
    Release time 20ms
    Coil current 5.3mA
