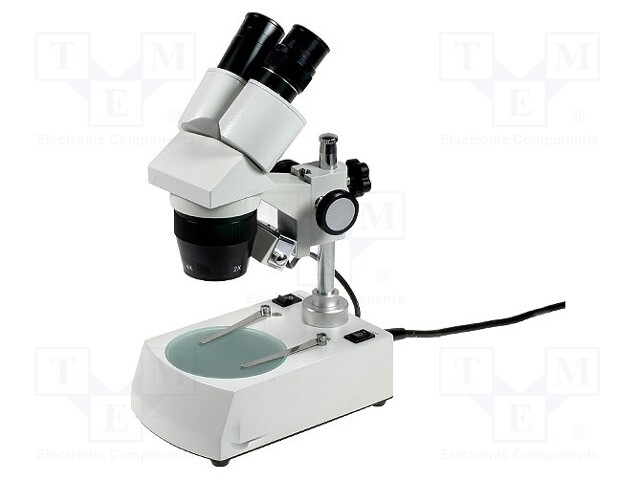

Stereoscopic microscopes; Mag: x20÷x40; 2.8kg; H: 370mm; Plug: EU

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: NB-XT5C -AS
    Manufacturer: NEWBRAND
    Manufacturer code: NB-XT5C -AS
    • Supply voltage
    • Height
    • Type of tool
    • Plug variant
    • Illumination
    • Base dimensions
    • Field of observation
    • Field of observation
    • Magnification
    • Inspection tool features
    • Inspection tool features
    • Inspection tool features
    • Inspection tool features
    • Inspection plate dimensions
    • Eyepiece spacing
    • Head focal length

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Stereoscopic microscopes; Mag: x20÷x40; 2.8kg; H: 370mm; Plug: EU

    Supply voltage 230V AC
    Height 370mm
    Type of tool stereoscopic microscopes
    Plug variant EU
    Illumination top/bottom - 2x lamp 10W
    Base dimensions 115x180mm
    Field of observation 10mm (at x20), 5mm (at x40)
    Magnification x20...x40
    Inspection tool features a rotary turret operating within the range of 360° makes observation possible from any side, enable observation in reflected or passing through light, left eyepiece enables sight correction within the range of ±5dpt, two fixing lamellas ensure stable fixation of examined objects
    Inspection plate dimensions Ø95mm
    Eyepiece spacing 55...75mm
    Head focal length 76mm
