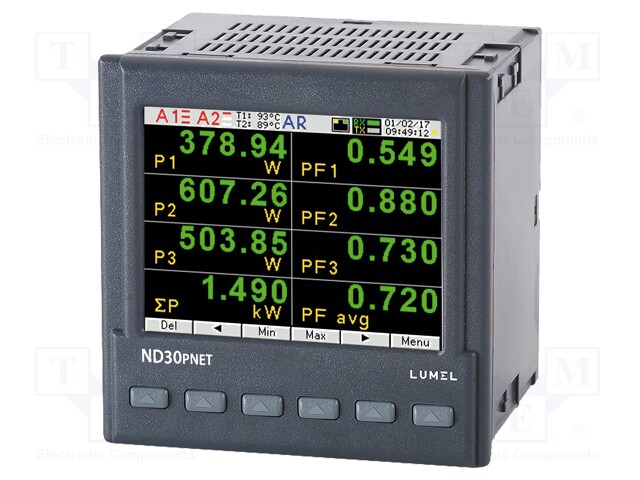

Meter; on panel; LCD 3,5" (320x240),TFT; 45÷65Hz; 85÷253VAC; 1/5A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ND30PNET11100M0
    Manufacturer: LUMEL
    Manufacturer code: ND30PNET11100M0
    • Mounting
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Interface
    • Interface
    • Series
    • Input voltage
    • Kind of display used
    • Display resolution
    • Operating frequency
    • Kind of network
    • Kind of network
    • Kind of network
    • Kind of network
    • Output
    • Input current
    • Input current
    • Type of meter
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Kind of meter
    • Kind of meter
    • Dimensions (W x H x D)

    683.53 € 683.53 € (wo VAT) 683.53 EUR

    683.53 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Meter; on panel; LCD 3,5" (320x240),TFT; 45÷65Hz; 85÷253VAC; 1/5A

    Mounting on panel, for DIN rail mounting (optional)
    Supply voltage 85...253V AC, 90...300V DC
    Operating temperature -10...55°C
    IP rating IP65
    Interface ETHERNET/PROFINET, RS485
    Series ND30PNET
    Input voltage 57.7...230V
    Kind of display used LCD TFT 3,5"
    Display resolution 320x240
    Operating frequency 45...65Hz
    Kind of network single-phase, three-phase, 3- wire, 4- wire
    Output relay x2
    Input current 1A, 5A
    Type of meter power network meter
    Measurement AC current, AC voltage, active power, apparent power, energy, frequency, harmonics, power factor, reactive power, THD
    Kind of meter digital, mounting
    Dimensions (W x H x D) 96x96x77mm
