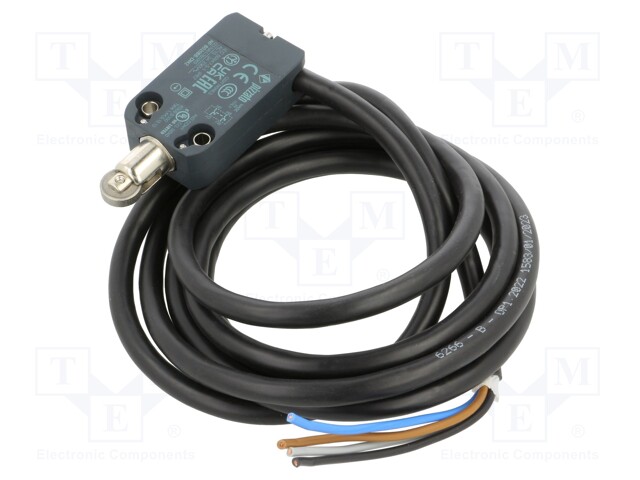

Limit switch; metal roller Ø12mm; NC x2; 10A; max.250VAC; lead 2m

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: NF B020BB-DN2
    Manufacturer: PIZZATO ELETTRICA
    Manufacturer code: NF B020BB-DN2
    • Operating temperature
    • IP rating
    • Switches features
    • Body material
    • Mounting holes pitch
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Kind of actuator
    • Switching frequency max

    27.47 € 27.47 € (wo VAT) 27.47 EUR

    27.47 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Limit switch; metal roller Ø12mm; NC x2; 10A; max.250VAC; lead 2m

    Operating temperature -25...80°C
    IP rating IP67
    Switches features snap action contacts
    Body material plastic
    Mounting holes pitch 20mm
    Switched voltage max. 250V AC, max. 250V DC
    Output configuration NC x2
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 0.3A / 250V DC
    AC contacts rating @R 4A / 250V AC
    Contact current max. 10A
    Kind of actuator metal roller Ø12mm
    Switching frequency max 1Hz
