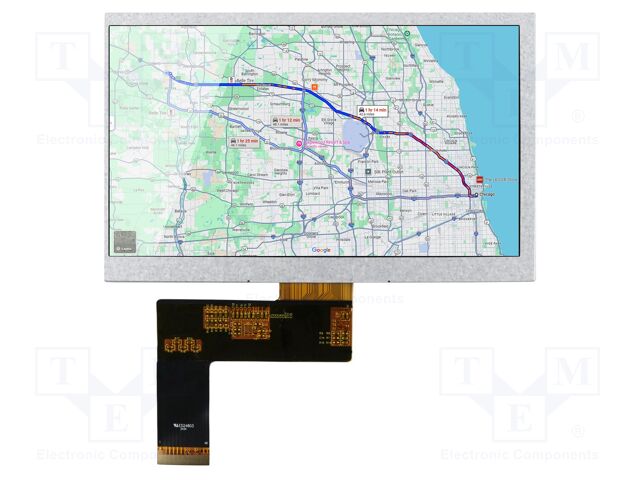

Display: TFT; 7"; 800x480; Illumin: LED; Dim: 165x104x3.5mm; RGB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: NHD-7.0-800480AF-LSXP
    Manufacturer: NEWHAVEN DISPLAY INTERNATIONAL
    Manufacturer code: NHD-7.0-800480AF-LSXP
    • Supply voltage
    • Operating temperature
    • Colour
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Display resolution
    • Display features
    • Screen size
    • Kind of display
    • Backlight colour
    • Illumination
    • Contrast
    • Window dimensions (H x W)
    • Type of display
    • Ribbon cable pitch

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: TFT; 7"; 800x480; Illumin: LED; Dim: 165x104x3.5mm; RGB

    Supply voltage 3.3V DC
    Operating temperature -20...70°C
    Colour RGB
    Interface LVDS
    Number of pins 40
    Dimensions 165x104x3.5mm
    Type of pin configuration 1x40
    Display resolution 800x480
    Display features anti-glare glass
    Screen size 7"
    Kind of display graphical
    Backlight colour white
    Illumination LED
    Contrast 1000:1
    Window dimensions (H x W) 156.7x89.1mm
    Type of display TFT
    Ribbon cable pitch 500µm
