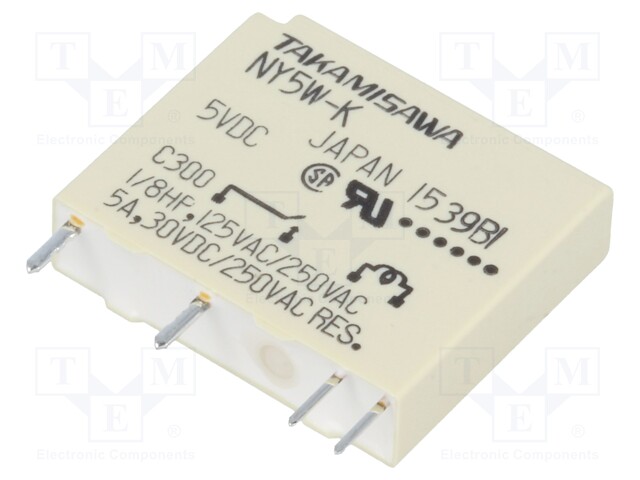

Relay: electromagnetic; SPST; Ucoil: 5VDC; 3A; max.250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: NY-5W-K
    Manufacturer: FUJITSU
    Manufacturer code: NY-5W-K
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    3.93 € 3.93 € (wo VAT) 3.93 EUR

    3.93 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST; Ucoil: 5VDC; 3A; max.250VAC

    Mounting PCB
    Operating temperature -40...90°C
    Contact plating gold-plated
    Contact material AgNi
    Terminal pitch 7.62mm
    Body dimensions 20.1x5x17.5mm
    Mechanical durability 2000000cycles
    Switched voltage max. 250V AC, max. 150V DC
    Electrical life 100000cycles
    Coil resistance 208Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 120mW
    Operate time 10ms
    Release time 5ms
