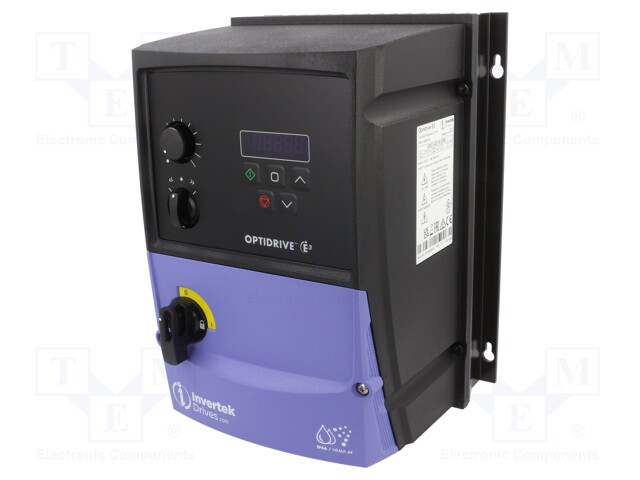

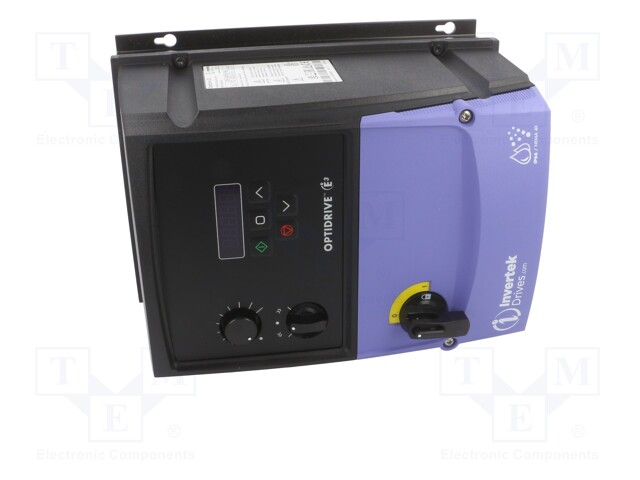

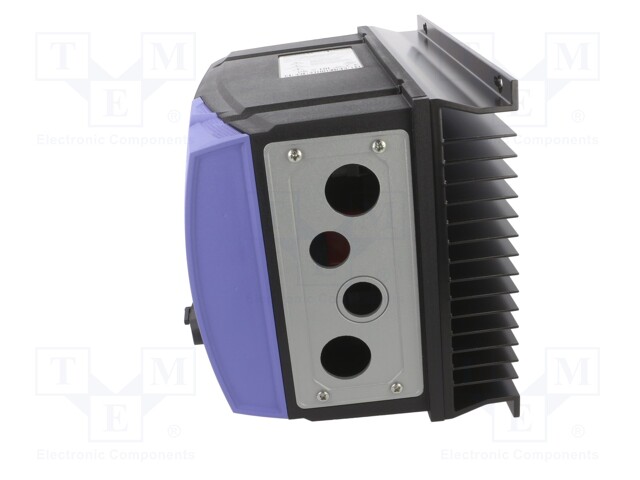

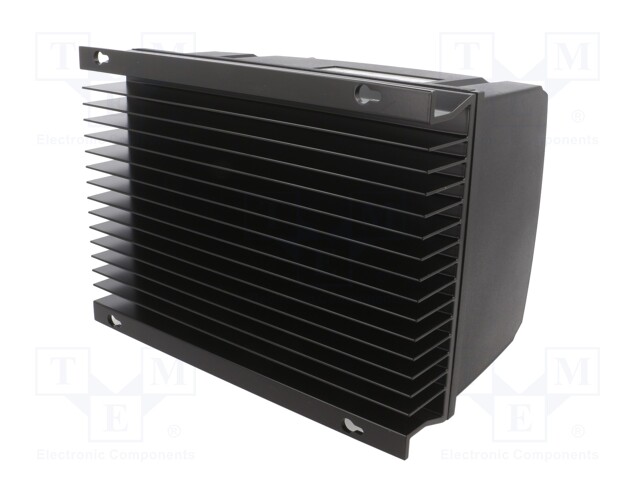

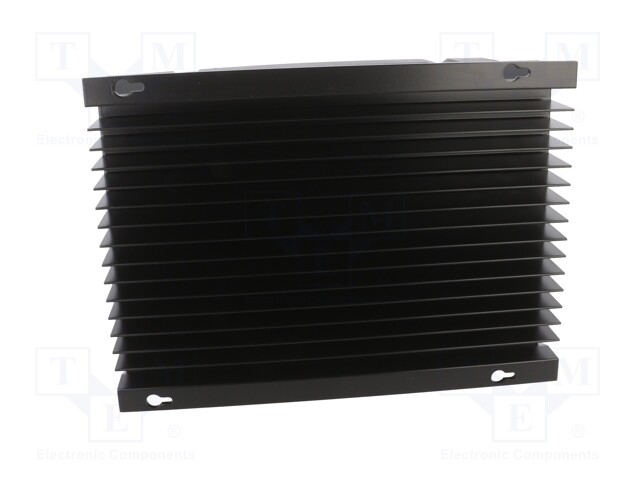

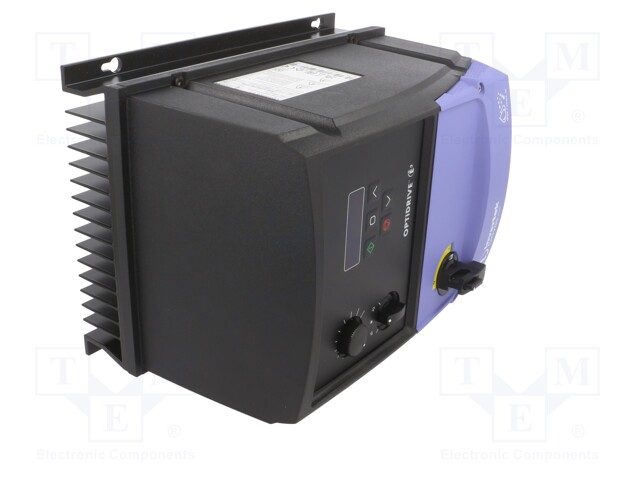

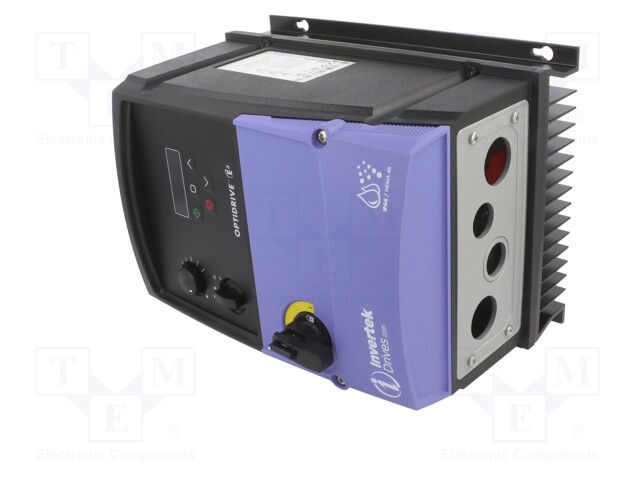

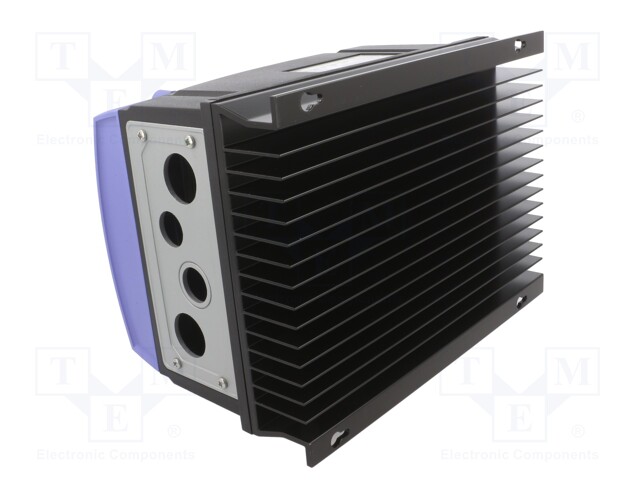

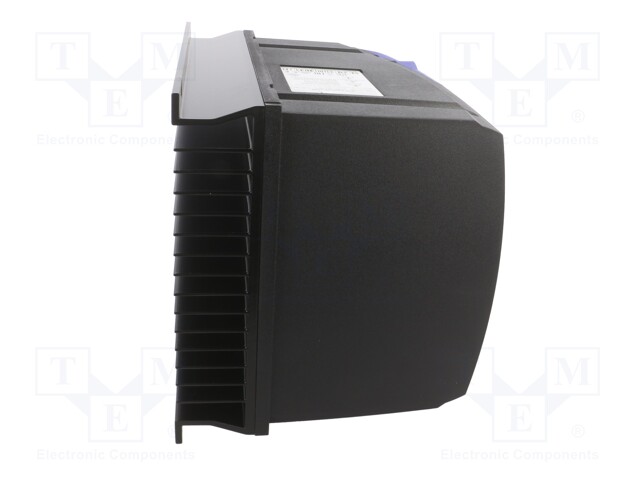

Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 4
Multiples:
1.0
Minimum quantity:
1.0
Product code:
ODE-3-220105-1F4B
Manufacturer: INVERTEK DRIVES
Manufacturer code: ODE-3-220105-1F4B
Product downloads
Specification for Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 4
| Mounting | for wall mounting, for DIN rail mounting |
| Supply voltage | 200...240V AC |
| Operating temperature | -10...50°C |
| IP rating | IP66 |
| Series | Optidrive E3 |
| Current rating | 10.5A |
| Output frequency | 0...500Hz |
| Number of inputs | 4 |
| Number of outputs | 2 |
| Electrical connection | screw terminals |
| Driver features | integrated brake transistor, integrated EMC filter, with switches |
| Max motor power | 2.2kW |
| Inverter output voltage | 3 x 230V AC |
| The programming method | keypad, PC |
| Number of analog outputs | 1 |
| Input 1 properties | rotational speed setting with signal 0...10V, 4...20mA, 0...20mA |
| Starting/stopping time | 0.1...600s |
| Number of analog inputs | 1 |
