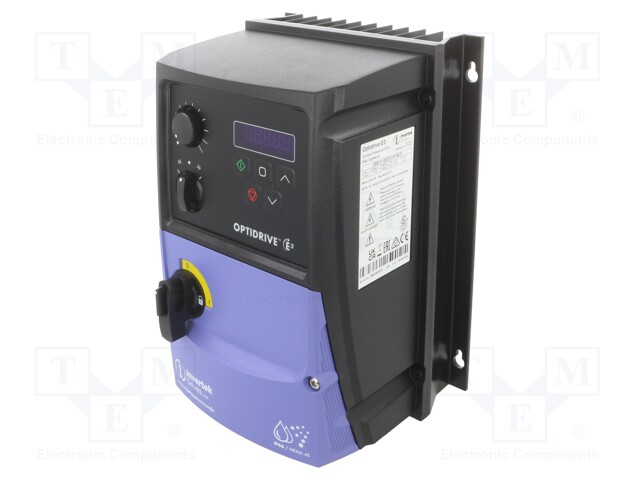

Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 4

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ODE31200701F1B01
    Manufacturer: INVERTEK DRIVES
    Manufacturer code: ODE-3-120070-1F1B-01
    • Mounting
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Series
    • Current rating
    • Output frequency
    • Number of inputs
    • Number of outputs
    • Electrical connection
    • Driver features
    • Driver features
    • Max motor power
    • Inverter output voltage
    • The programming method
    • The programming method
    • Number of analog outputs
    • Input 1 properties
    • Starting/stopping time
    • Number of analog inputs

    505.31 € 505.31 € (wo VAT) 505.31 EUR

    505.31 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 4

    Mounting for wall mounting, for DIN rail mounting
    Supply voltage 200...240V AC
    Operating temperature -10...50°C
    IP rating IP66
    Series Optidrive E3
    Current rating 7A
    Output frequency 0...500Hz
    Number of inputs 4
    Number of outputs 2
    Electrical connection screw terminals
    Driver features integrated EMC filter, with switches
    Max motor power 750W
    Inverter output voltage 1 x 230V AC
    The programming method keypad, PC
    Number of analog outputs 1
    Input 1 properties rotational speed setting with signal 0...10V, 4...20mA, 0...20mA
    Starting/stopping time 0.1...600s
    Number of analog inputs 1
