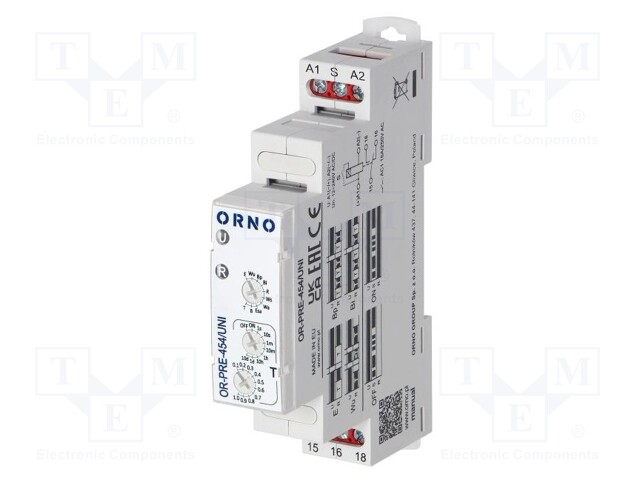

Timer; 1s÷10days; SPDT; 12÷240VAC; 12÷240VDC; -20÷50°C; IP20
Multiples:
1.0
Minimum quantity:
1.0
Product code:
OR-PRE-454/UNI
Manufacturer: ORNO
Manufacturer code: OR-PRE-454/UNI
Specification for Timer; 1s÷10days; SPDT; 12÷240VAC; 12÷240VDC; -20÷50°C; IP20
| Mounting | for DIN rail mounting |
| Supply voltage | 12...240V AC, 12...240V DC |
| Operating temperature | -20...50°C |
| IP rating | IP20 |
| Kind of output | SPDT |
| Electrical connection | screw terminals |
| Counting range | 1s...10days |
| Counter operation modes | activation for the set time triggered by the closing of the S contact, activation for the set time triggered by the opening of the S contact, cyclical operation controlled by the closing of the S contact, delayed switching on, delayed switching on and off controlled by contact S, delayed switch-off controlled by contact S, ON for the set interval, pulse after a specified time, solid exclusion OFF, solid inclusion ON, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first |
| number of operation modes | 10 |
