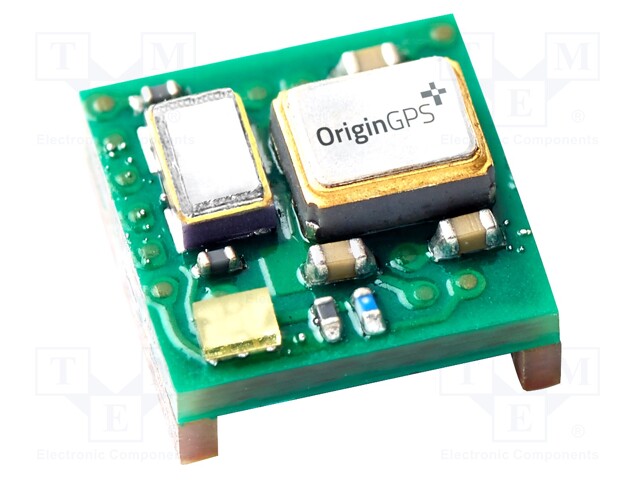

Module: GPS GLONASS/BEIDOU; ±2.5m; NMEA,SBAS; uP: MT3333 MediaTek

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ORG4033-MK04
    Manufacturer: OriginGPS
    Manufacturer code: ORG4033-MK04
    • Mounting
    • Supply voltage
    • Operating temperature
    • Interface
    • Interface
    • Dimensions
    • Power consumption
    • Type of communications module
    • Communictions protocol
    • Communictions protocol
    • Position determination accuracy
    • Receiver sensitivity
    • Processor
    • GPS features
    • GPS features
    • GPS features

    17.43 € 17.43 € (wo VAT) 17.43 EUR

    17.43 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: GPS GLONASS/BEIDOU; ±2.5m; NMEA,SBAS; uP: MT3333 MediaTek

    Mounting SMD
    Supply voltage 3...3.6V
    Operating temperature -40...85°C
    Interface I2C, UART
    Dimensions 5.6x5.6x2.6mm
    Power consumption 15mW
    Type of communications module GPS
    Communictions protocol NMEA, SBAS
    Position determination accuracy ±2.5m
    Receiver sensitivity -165dBm
    Processor MT3333 MediaTek
    GPS features A-GPS, hot start <1s, interference detector/remover
