    2. RCD breaker; Inom: 63A; Ires: 30mA; Max surge current: 250A; 400V
    Public Pricelist

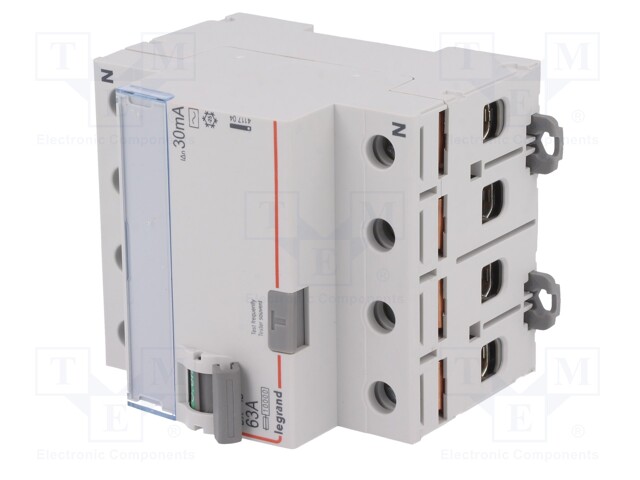

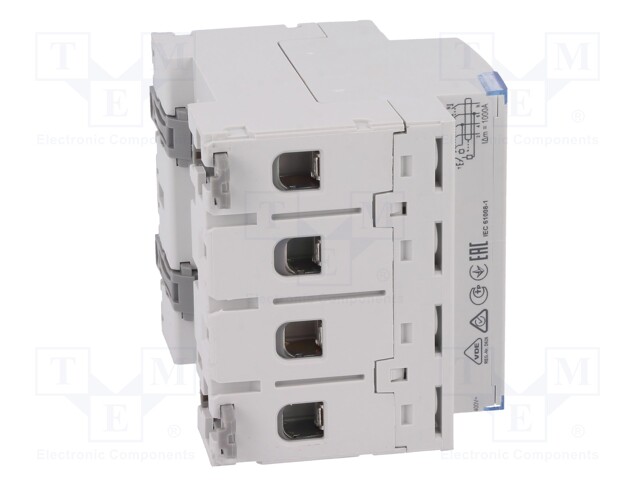

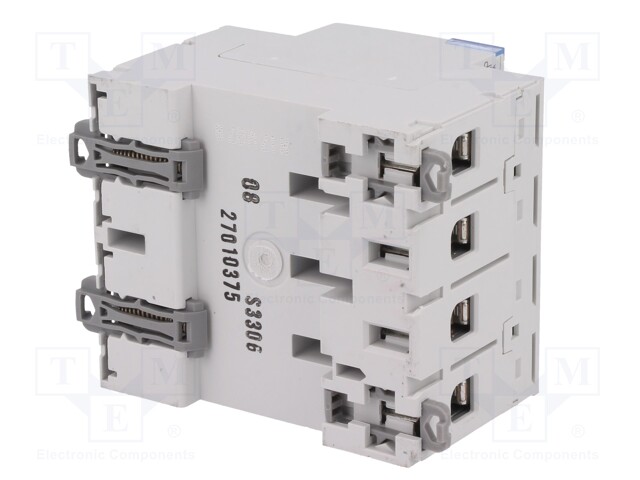

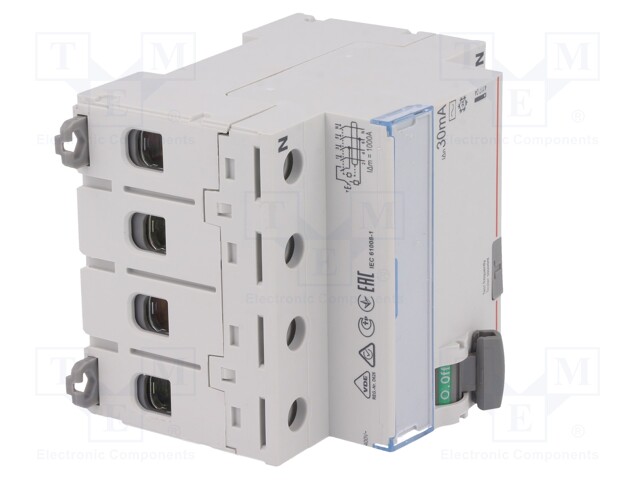

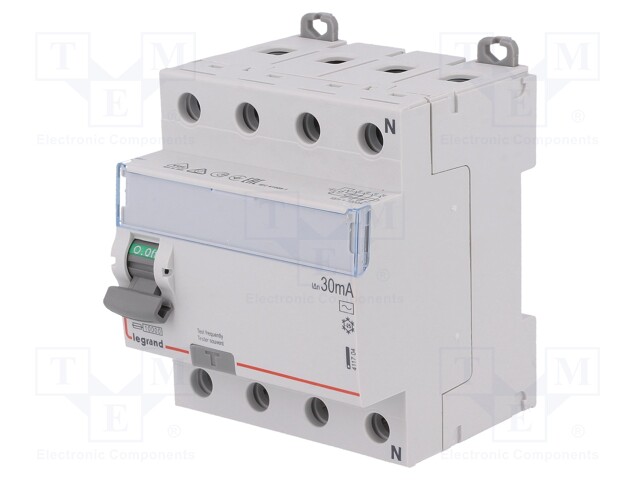

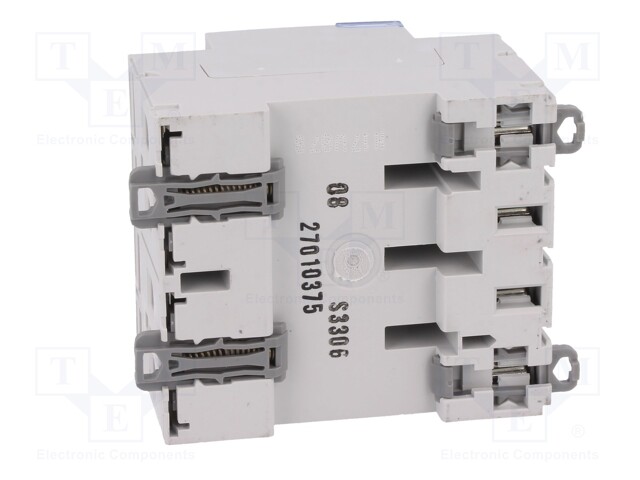

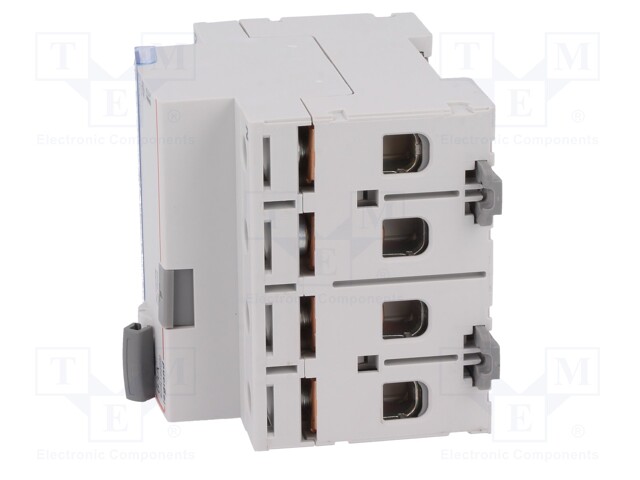

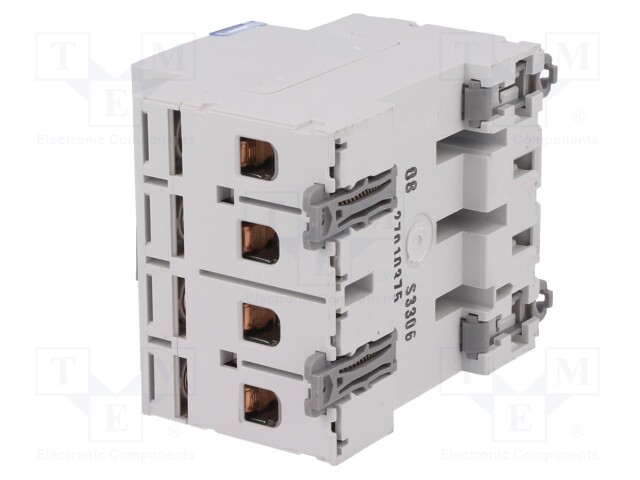

    RCD breaker; Inom: 63A; Ires: 30mA; Max surge current: 250A; 400V

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: P 304 63-30-AC DX
    Manufacturer: LEGRAND
    Manufacturer code: P 304 63-30-AC DX
    Certificates:
    • Mounting
    • Operating temperature
    • IP rating
    • Mechanical durability
    • Current rating
    • Rated voltage
    • Electrical life
    • Max surge current
    • Conform to the norm
    • Cross section of connecting wires
    • Type of protection
    • Short circuit breaking capacity
    • Kind of circuit breaker
    • Residual current

    132.36 € 132.36 € (wo VAT) 132.36 EUR

    132.36 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for RCD breaker; Inom: 63A; Ires: 30mA; Max surge current: 250A; 400V

    Mounting for DIN rail mounting
    Operating temperature -25...60°C
    IP rating IP20
    Mechanical durability 20000cycles
    Current rating 63A
    Rated voltage 400V AC
    Electrical life 10000cycles
    Max surge current 250A
    Conform to the norm IEC/EN 61008-1
    Cross section of connecting wires 0.75...50mm<sup>2</sup>
    Type of protection RCD breaker
    Short circuit breaking capacity 10kA
    Kind of circuit breaker type AC
    Residual current 30mA
