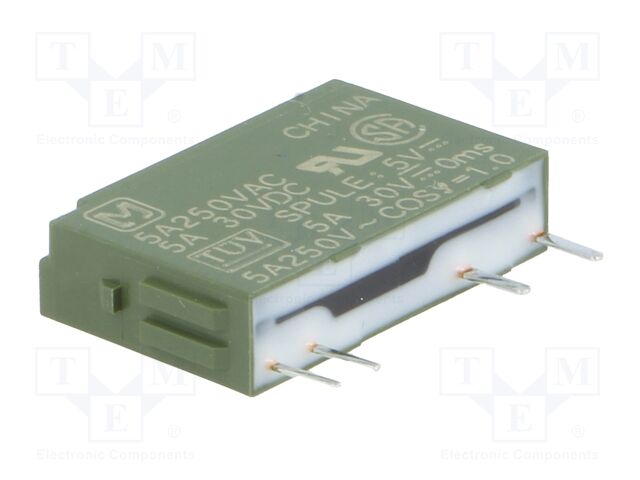

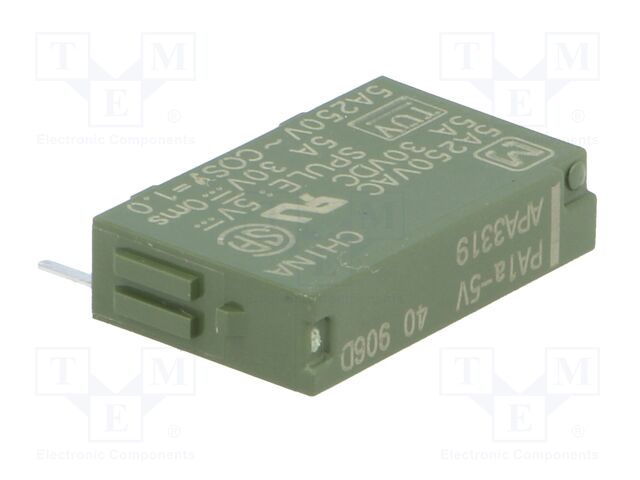

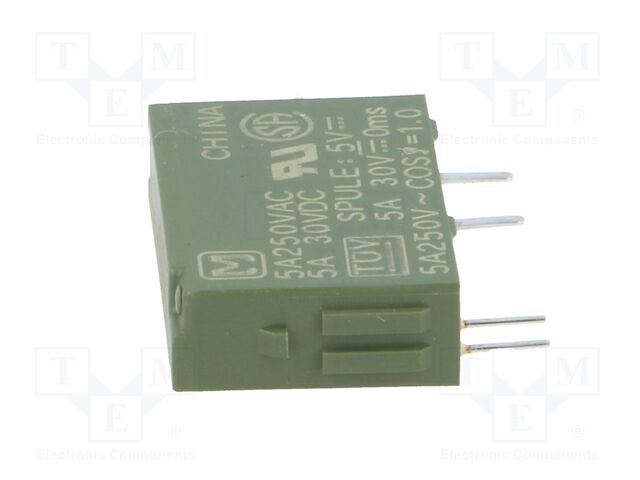

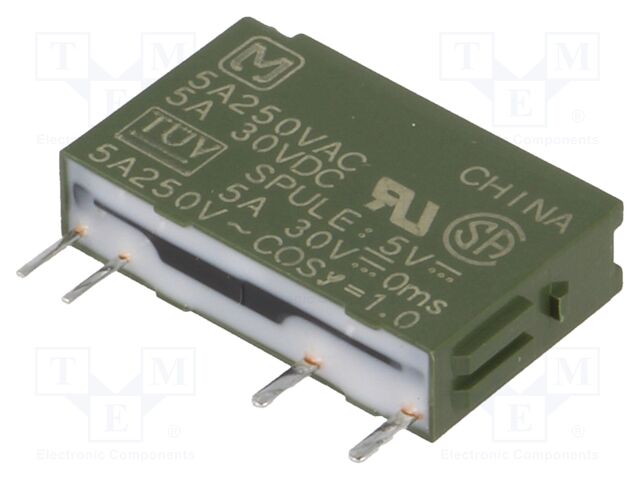

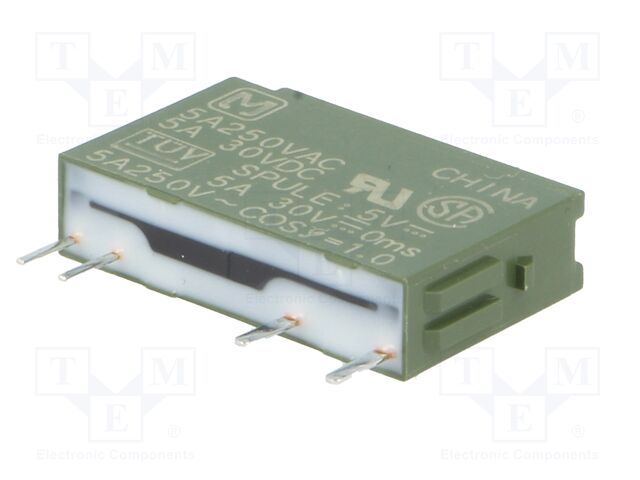

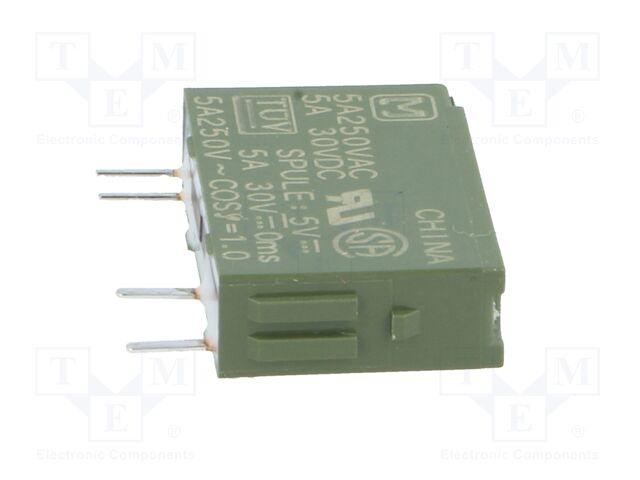

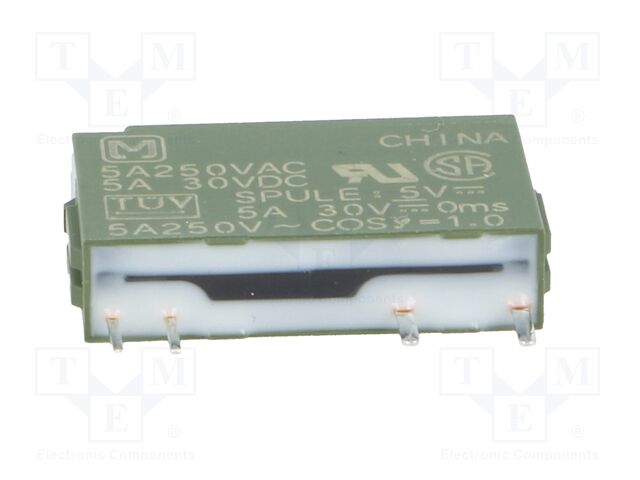

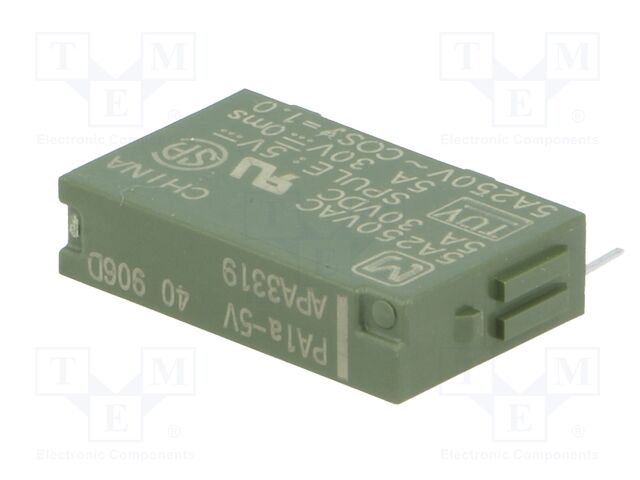

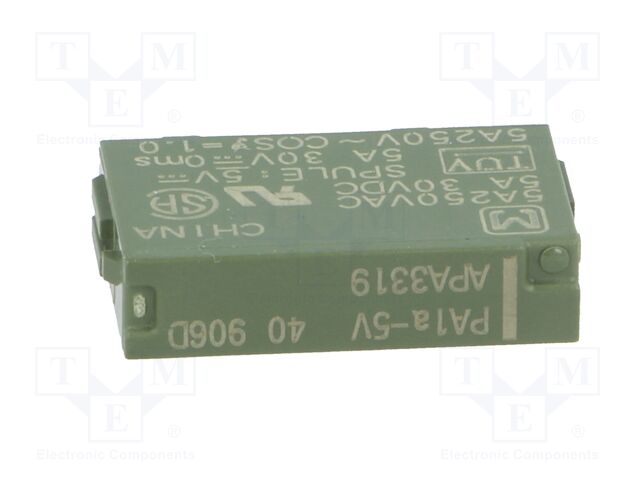

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PA1A-5V
    Manufacturer: PANASONIC
    Manufacturer code: PA1A-5V
    • Mounting
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A

    Mounting PCB, socket
    Operating temperature -40...70°C
    Contact plating gold-plated
    Contact material silver alloy
    Terminal pitch 5mm
    Body dimensions 20x5x12.5mm
    Switched voltage max. 110V DC, max. 250V AC
    Coil resistance 208Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant interface
    Type of relay electromagnetic
    Coil power consumption 120mW
    Operate time 6ms
    Release time 3ms
    Coil current 24mA
