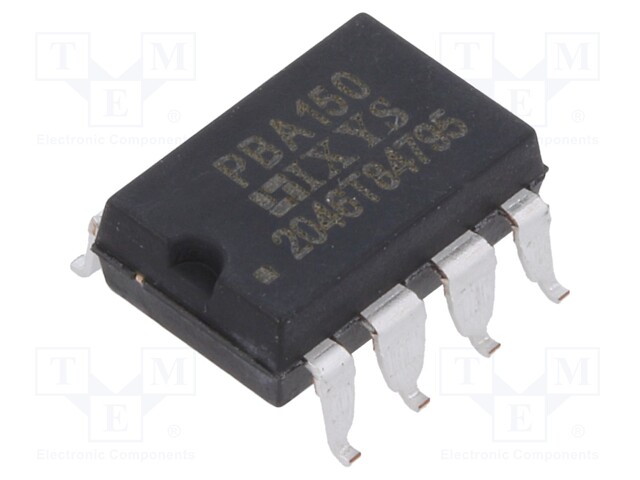

Relay: solid state; SPST-NO + SPST-NC; Icntrl max: 50mA; 250mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PBA150S
    Manufacturer: IXYS
    Manufacturer code: PBA150S
    • Mounting
    • Case
    • Max. operating current
    • Operating temperature
    • Turn-on time
    • Series
    • On-state resistance
    • Body dimensions
    • Insulation voltage
    • Switched voltage
    • Switched voltage
    • Turn-off time
    • Contacts configuration
    • Relay variant
    • Relay variant
    • Type of relay
    • Control current max.

    9.15 € 9.15 € (wo VAT) 9.15 EUR

    9.15 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; SPST-NO + SPST-NC; Icntrl max: 50mA; 250mA

    Mounting SMT
    Case DIP8
    Max. operating current 250mA
    Operating temperature -40...85°C
    Turn-on time 2.5ms
    Series OptoMOS
    On-state resistance 7Ω
    Body dimensions 9.65x6.35x3.3mm
    Insulation voltage 3.75kV
    Switched voltage max. 250V AC, max. 250V DC
    Turn-off time 2.5ms
    Contacts configuration SPST-NO + SPST-NC
    Relay variant 1-phase, current source
    Type of relay solid state
    Control current max. 50mA
