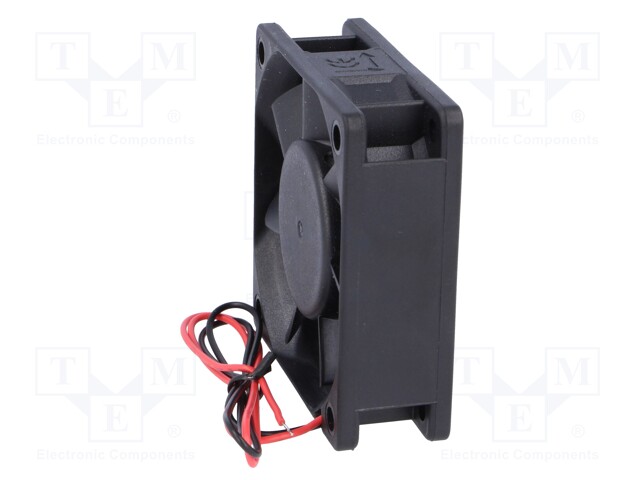

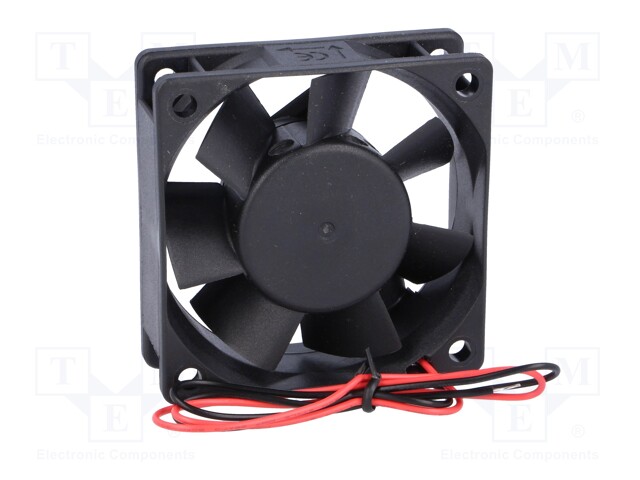

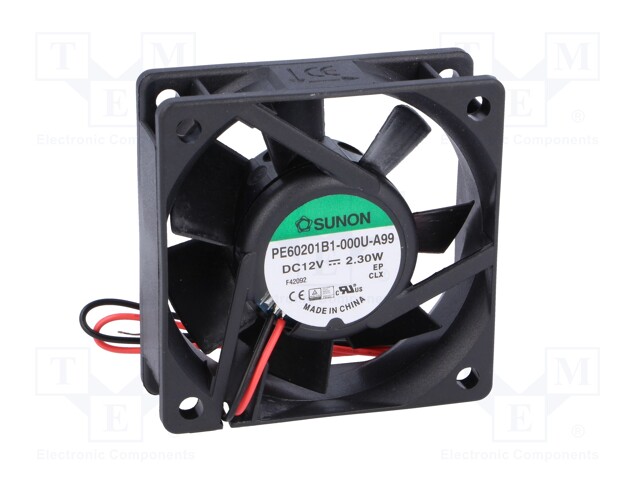

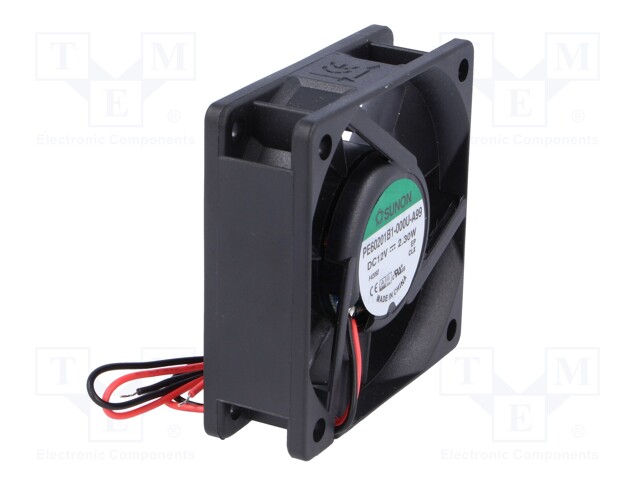

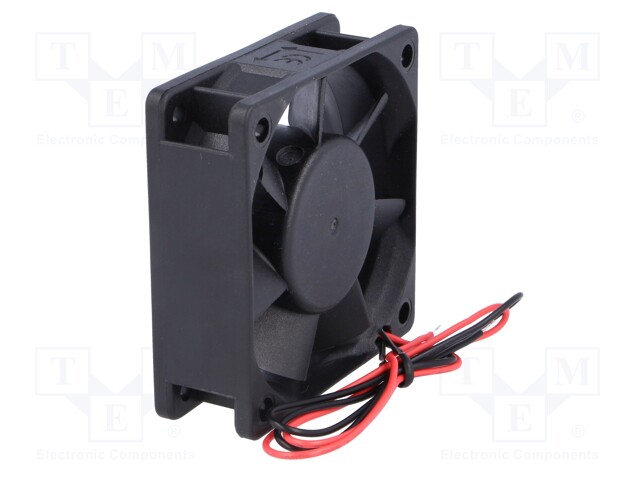

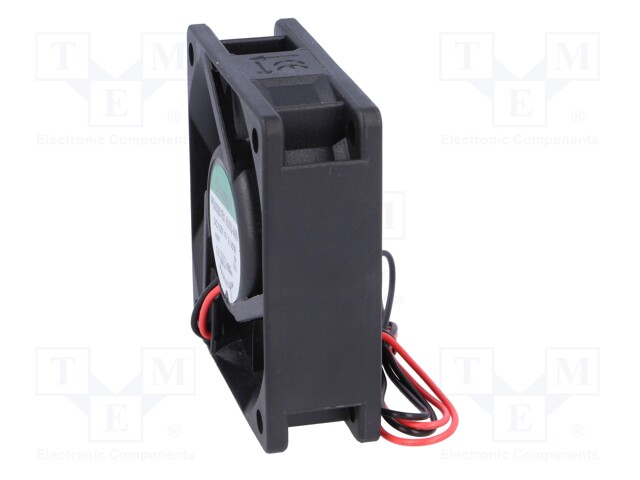

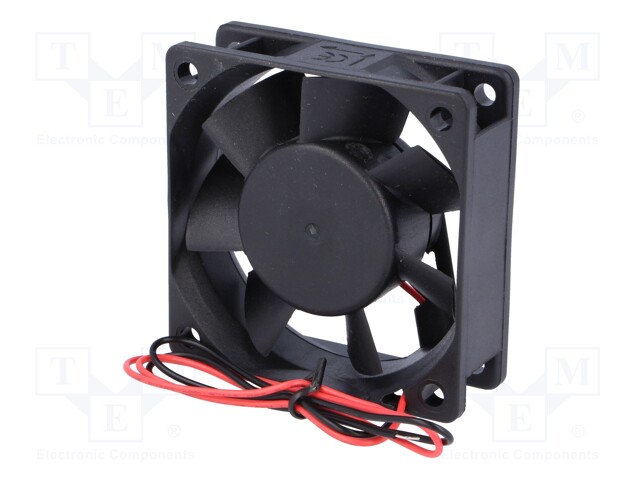

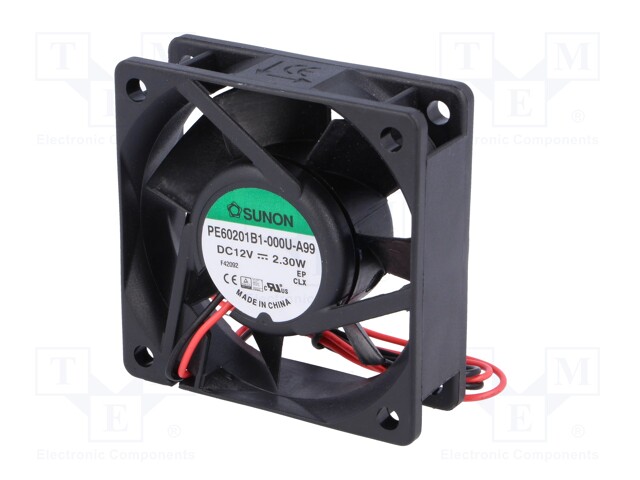

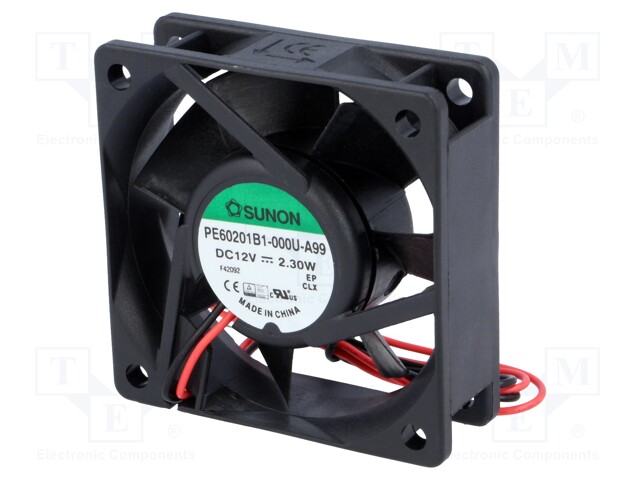

Fan: DC; axial; 12VDC; 60x60x20mm; 46.72m3/h; 39dBA; ball bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PE60201B1-000U-A99
    Manufacturer: SUNON
    Manufacturer code: PE60201B1-000U-A99
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    19.74 € 19.74 € (wo VAT) 19.740000000000002 EUR

    19.74 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 12VDC; 60x60x20mm; 46.72m3/h; 39dBA; ball bearing

    Supply voltage 12V DC
    Operating voltage 6...13.8V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 0.192A
    Fan efficiency 46.72m<sup>3</sup>/h
    Power consumption 2.3W
    Additional functions Autorestart
    Rotational rate/speed 5000 (±15%)rpm
    Fan motor brushless DC motor
    Fan dimensions 60x60x20mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 7.11mm H<sub>2</sub>O
    Noise level 39dBA
