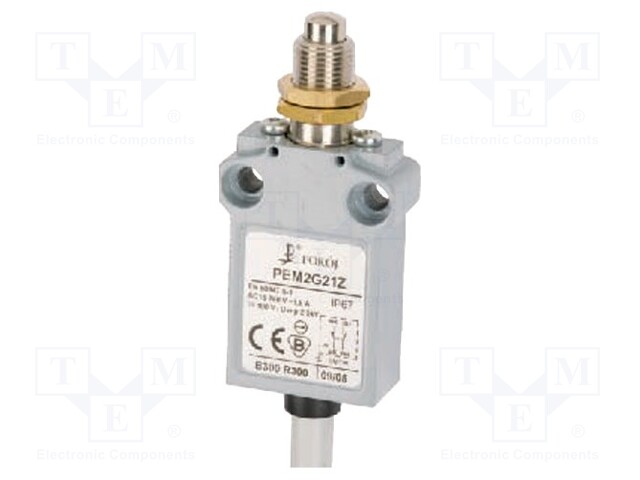

Limit switch; pin plunger Ø8mm and additional fixation; 5A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PEM2G21Z
    Manufacturer: POKÓJ
    Manufacturer code: PEM2G21Z
    • Operating temperature
    • IP rating
    • Switches features
    • Body material
    • Body dimensions
    • Mounting holes pitch
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Kind of actuator
    • Switching frequency max

    51.18 € 51.18 € (wo VAT) 51.18 EUR

    51.18 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Limit switch; pin plunger Ø8mm and additional fixation; 5A

    Operating temperature -25...70°C
    IP rating IP67
    Switches features snap action contacts
    Body material metal

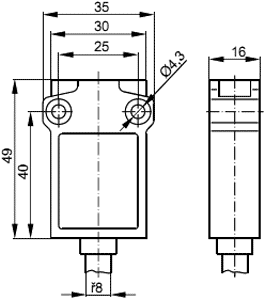

    Body dimensions 49x35x16mm
    Mounting holes pitch 25mm
    Switched voltage max. 250V AC, max. 250V DC
    Output configuration NO + NC
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 1.1A / 24V DC
    AC contacts rating @R 1.5A / 240V AC
    Contact current max. 5A
    Kind of actuator pin plunger Ø8mm and additional fixation
    Switching frequency max 1Hz
