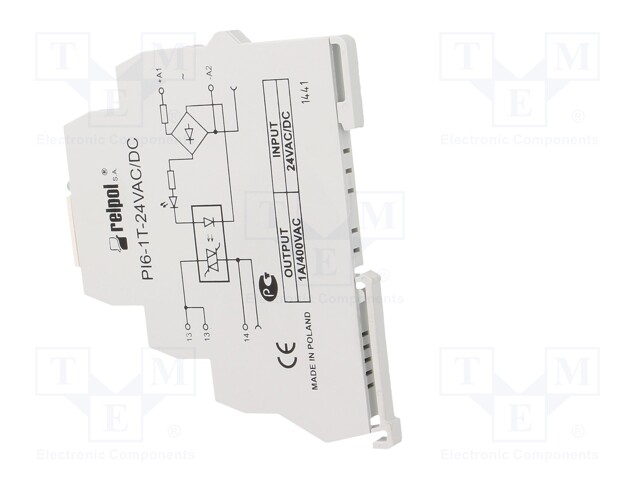

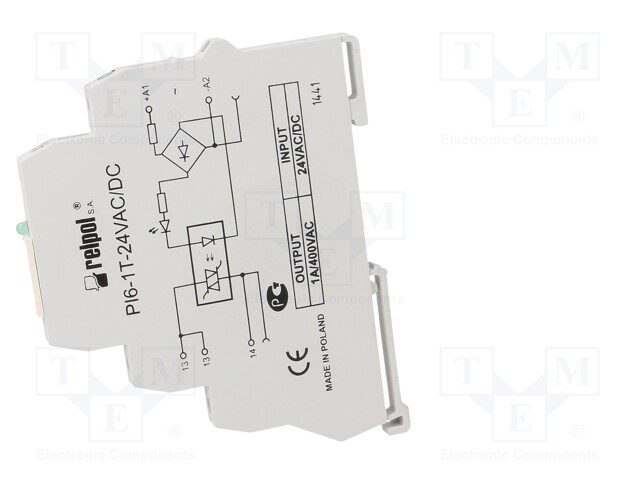

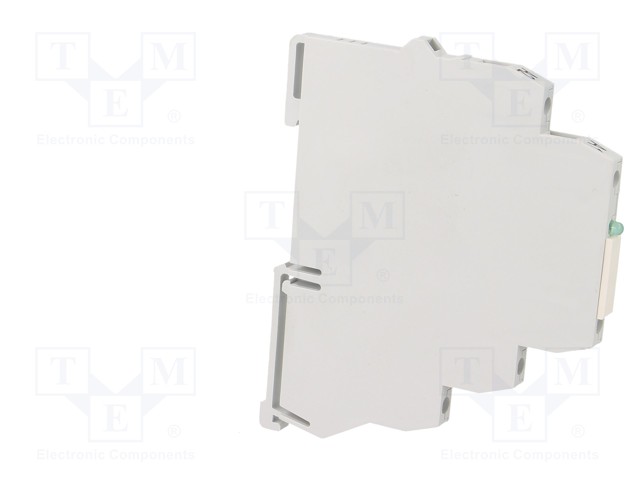

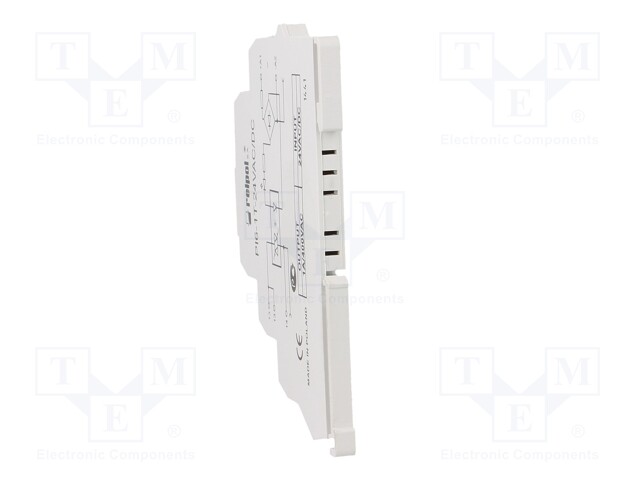

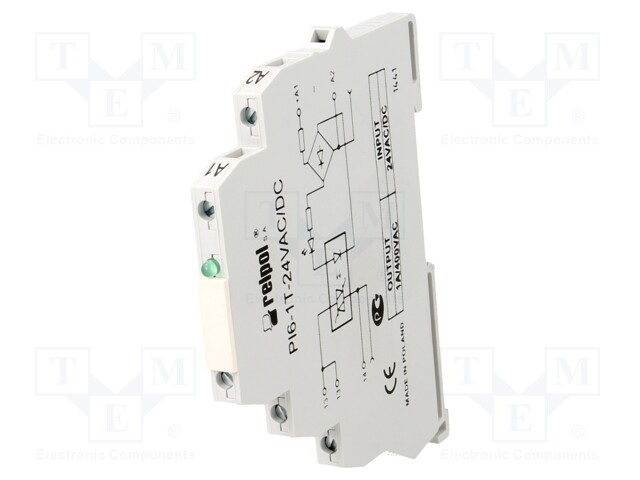

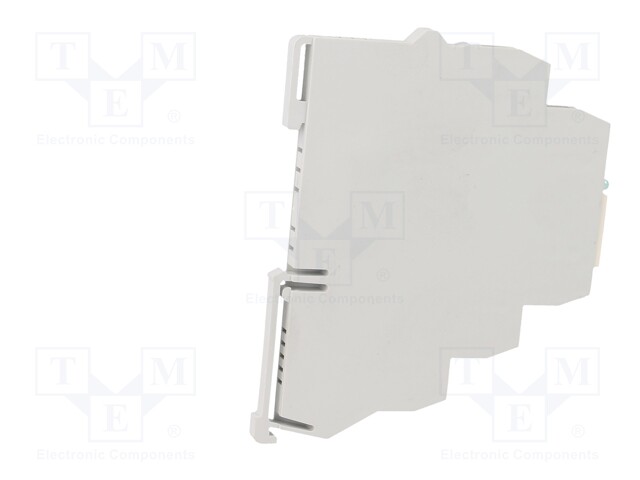

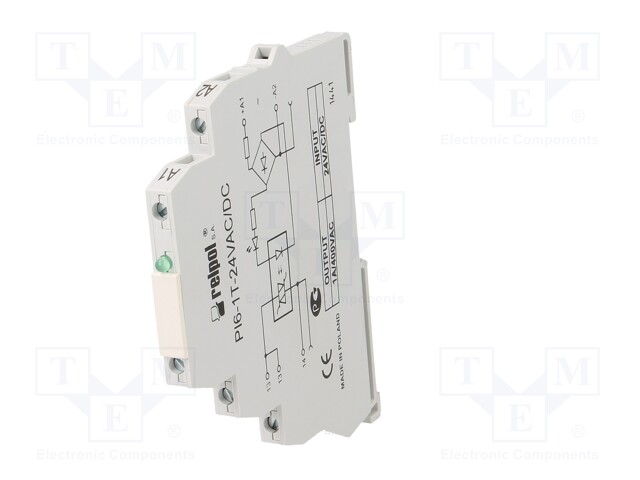

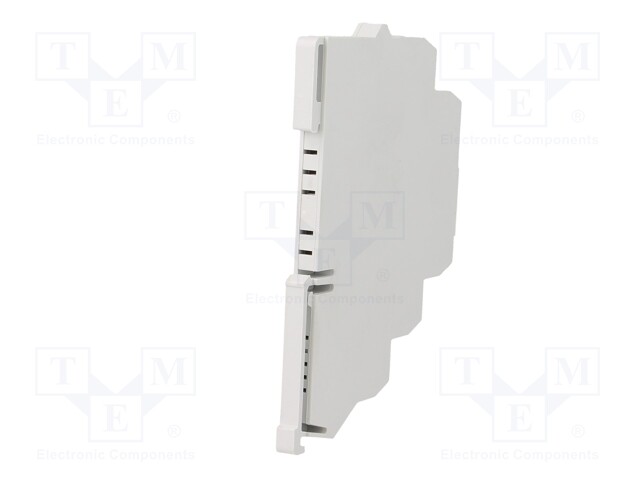

Relay: interface; SPST-NO; Ucoil: 24VDC; Ucoil: 24VAC; 1.2A; triac

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PI6-1T-24VAC/DC
    Manufacturer: RELPOL
    Manufacturer code: PI6-1T-24VAC/DC
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Kind of output
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • OEM number

    31.04 € 31.04 € (wo VAT) 31.04 EUR

    31.04 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; SPST-NO; Ucoil: 24VDC; Ucoil: 24VAC; 1.2A; triac

    Mounting for DIN rail mounting
    Max. operating current 1.2A
    Operating temperature -40...55°C
    Leads screw terminals
    Body dimensions 93.8x6.2x80mm
    Switched voltage max. 400V AC
    Kind of output triac
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 1.2A / 400V AC
    Relay variant Relay set
    Type of relay interface
    OEM number 854604
