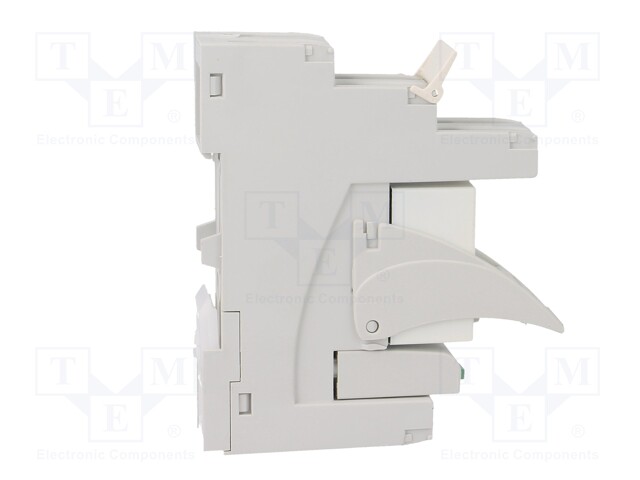

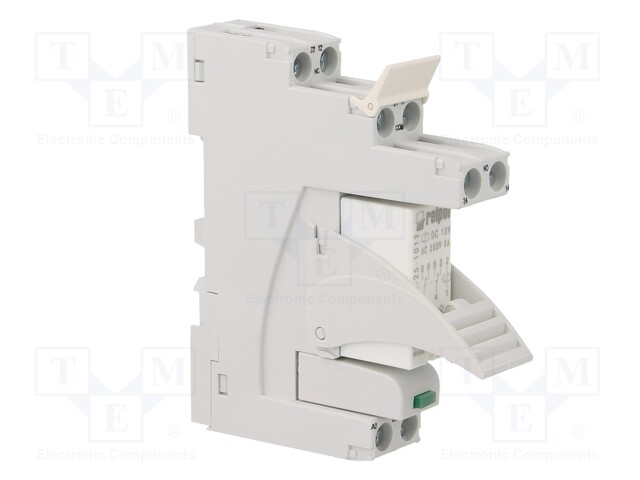

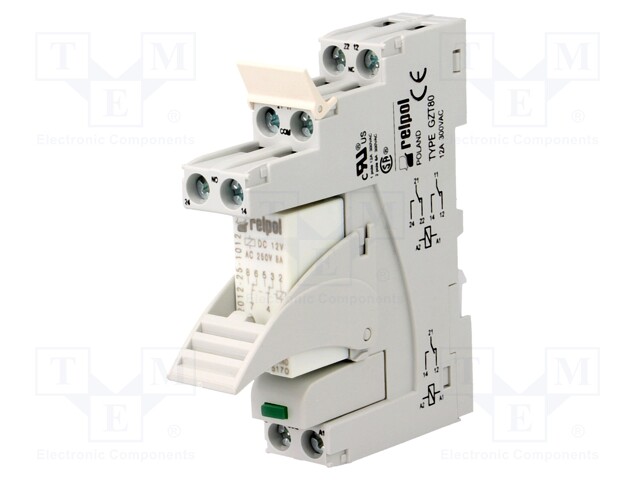

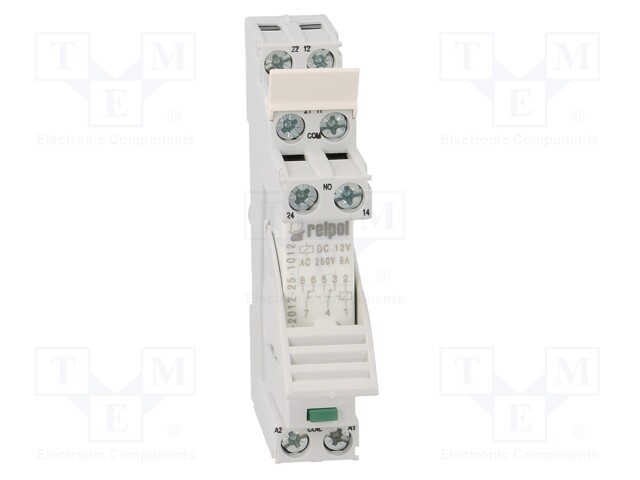

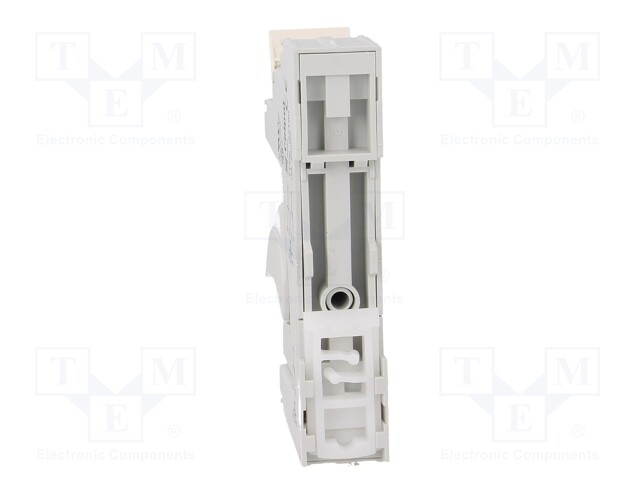

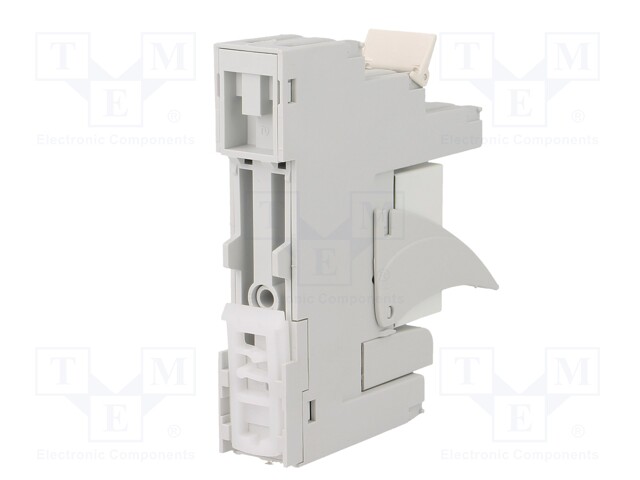

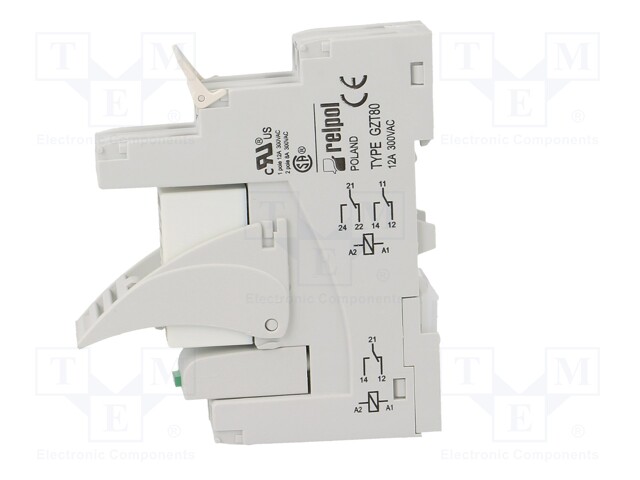

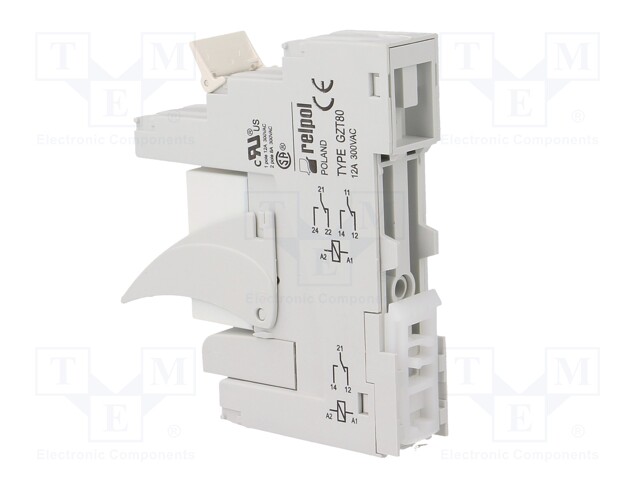

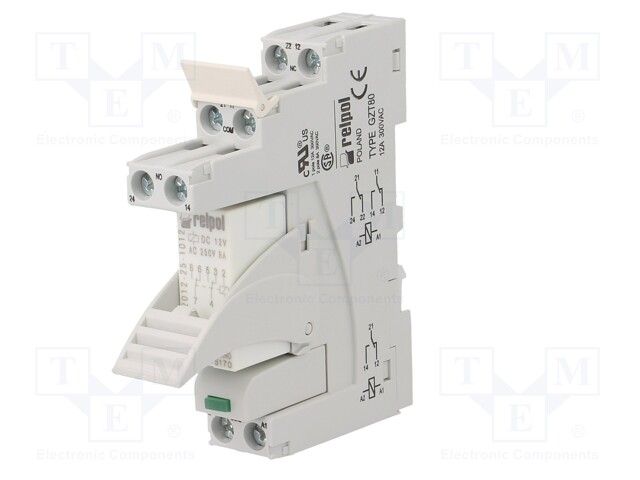

Relay: interface; DPDT; Ucoil: 12VDC; 8A; 8A/230VAC; 8A/24VDC; 100mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PI84-012DC-M41G-TS-2012
    Manufacturer: RELPOL
    Manufacturer code: PI84-012DC-M41G-TS-2012
    • Mounting
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • OEM number

    18.07 € 18.07 € (wo VAT) 18.07 EUR

    18.07 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; DPDT; Ucoil: 12VDC; 8A; 8A/230VAC; 8A/24VDC; 100mΩ

    Mounting on panel, for DIN rail mounting
    Max. operating current 8A
    Operating temperature -40...85°C
    Leads screw terminals
    Contact material AgNi
    Body dimensions 75.5x15.5x67mm
    Kit contents ejector, indication module, label, RM84 relay, socket
    Switched voltage max. 300V DC, max. 400V AC
    Switching capacity 2kVA
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 230V AC
    Relay variant Relay set
    Type of relay interface
    Operate time 7ms
    Release time 3ms
    OEM number 803992
