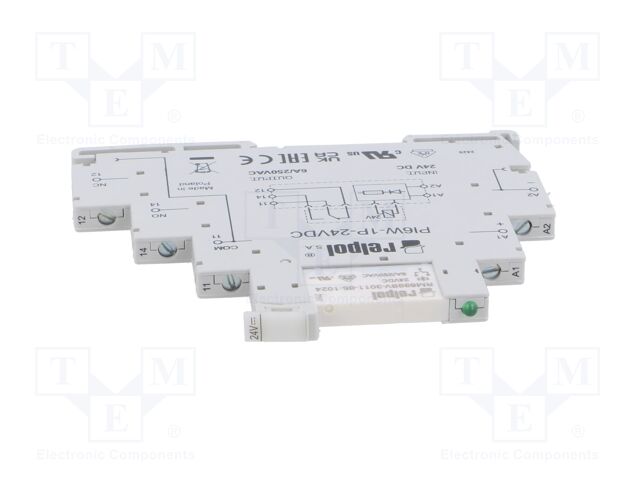

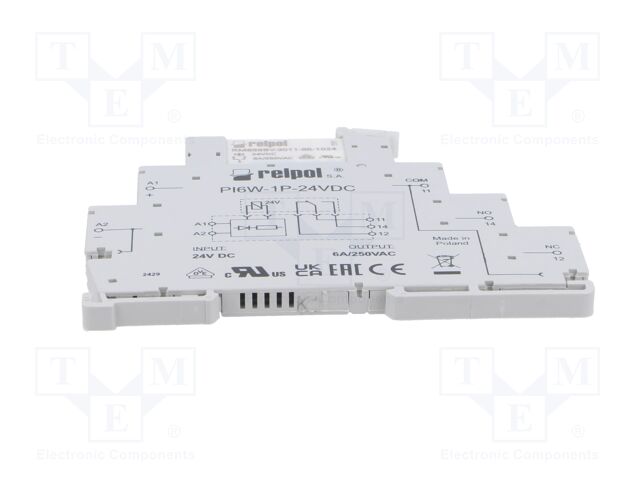

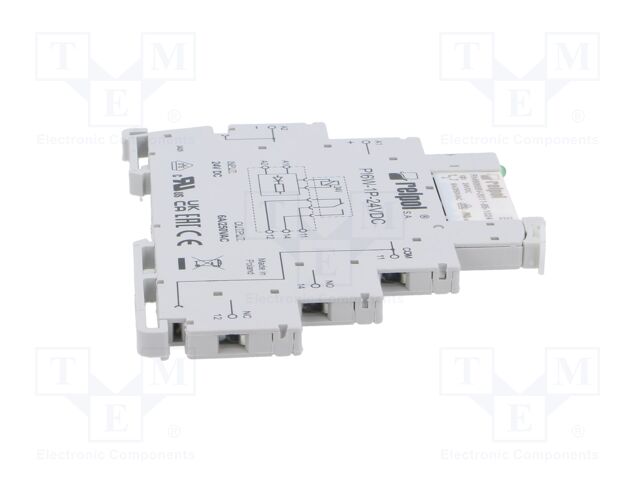

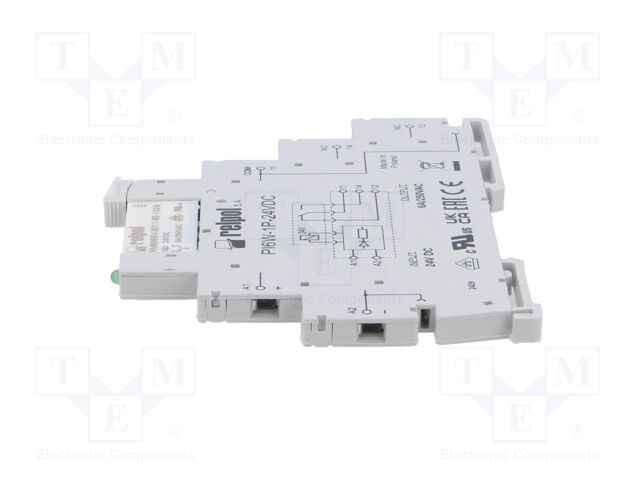

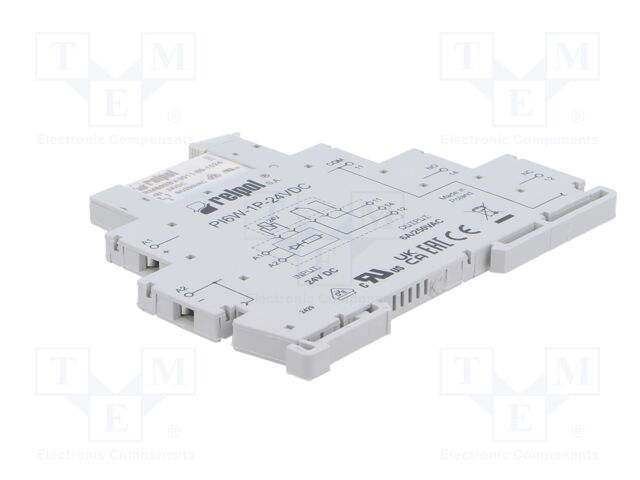

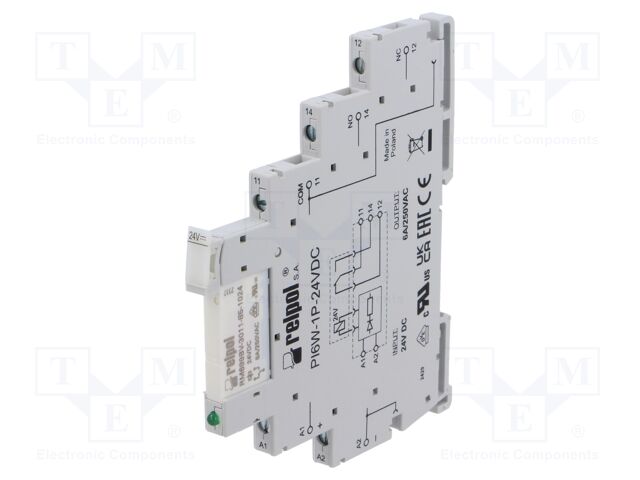

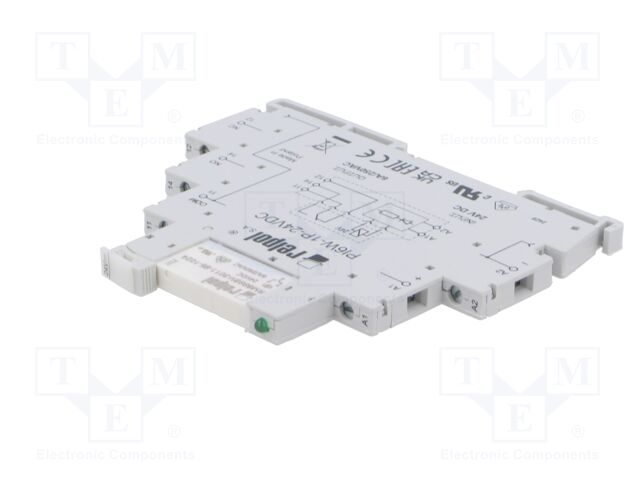

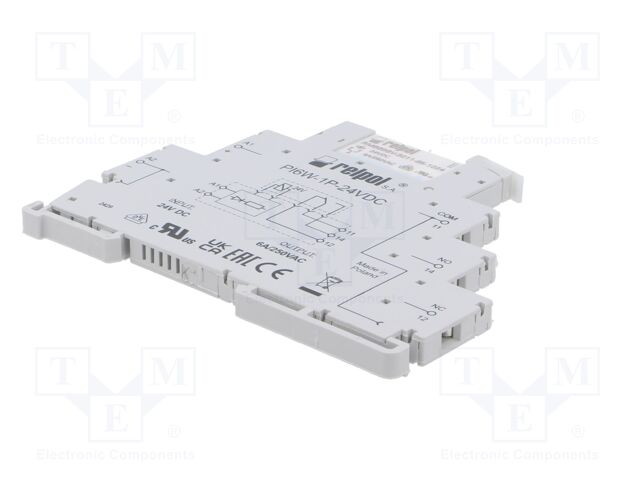

Relay: interface; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/24VDC; 100mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PIR6W-1P-24VDC
    Manufacturer: RELPOL
    Manufacturer code: PIR6W-1P-24VDC
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Body dimensions
    • Current rating
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: interface; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/24VDC; 100mΩ

    Mounting for DIN rail mounting
    Operating temperature -40...60°C
    IP rating IP20
    Contact material AgSnO<sub>2</sub>
    Body dimensions 98.5x6.2x85.5mm
    Current rating 6A
    Switched voltage max. 250V DC, max. 400V AC
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant Relay set
    Coil voltage max. 28V DC
    Type of relay interface
    Coil voltage min. 19.2V DC
    Coil power consumption 300mW
    Operate time 8ms
    Release time 10ms
