Relay: interface; SPDT; Ucoil: 24VDC; 6A; SPDT; 6A/250VAC; 6A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PIR6WB-1PS-24VDC-R
    Manufacturer: RELPOL
    Manufacturer code: PIR6WB-1PS-24VDC-R
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Kind of output
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay

    20.50 € 20.50 € (wo VAT) 20.5 EUR

    20.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; SPDT; Ucoil: 24VDC; 6A; SPDT; 6A/250VAC; 6A/24VDC

    Mounting for DIN rail mounting
    Max. operating current 6A
    Operating temperature -20...55°C
    Leads spring clamps

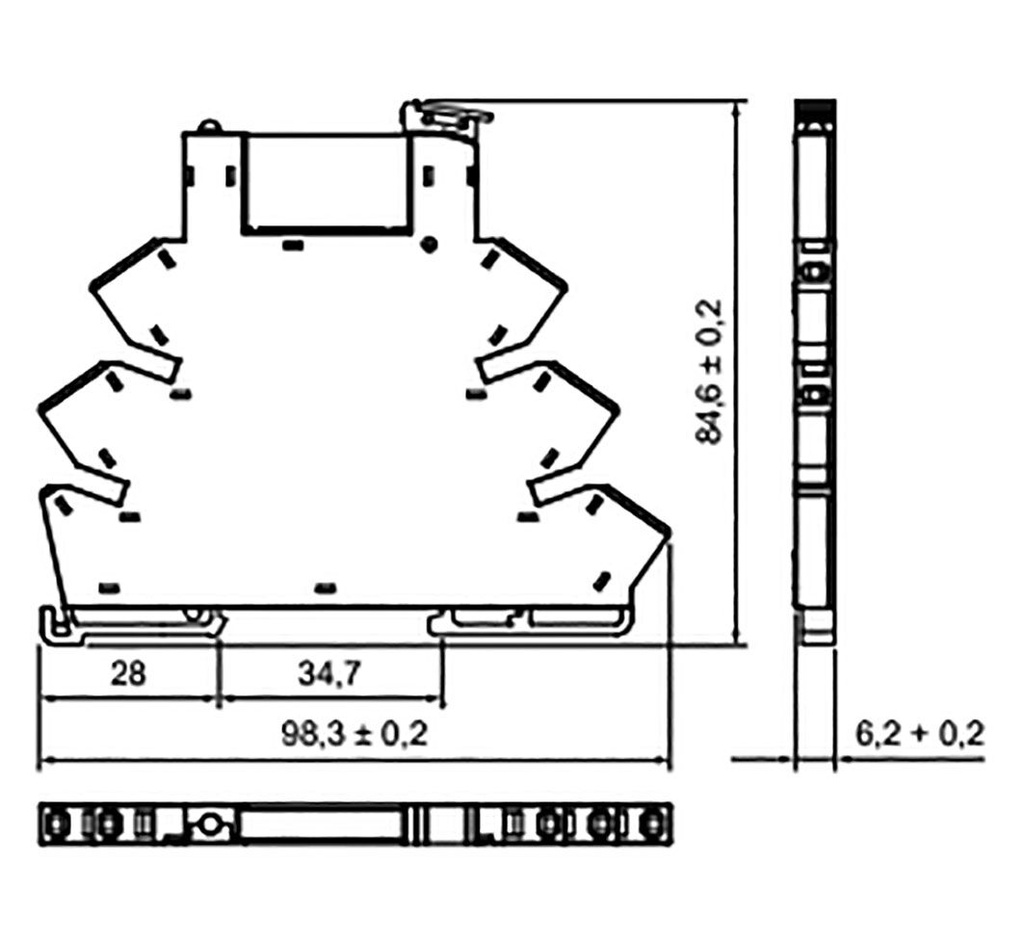

    Body dimensions 98.5x6.2x85.5mm
    Switched voltage max. 250V DC, max. 400V AC
    Kind of output SPDT
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Relay variant Relay set
    Type of relay interface
