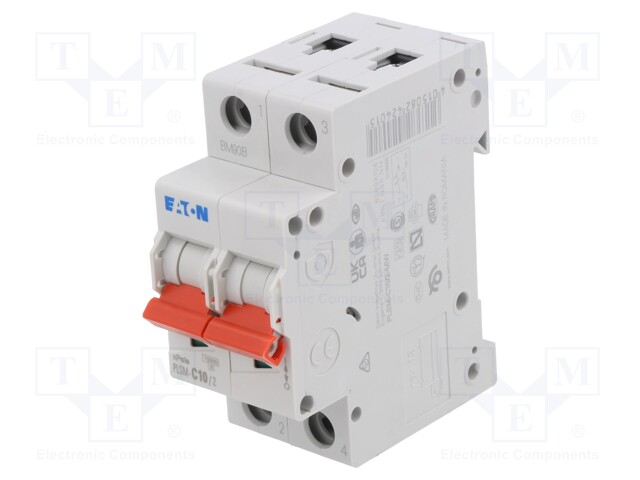

Circuit breaker; 230/400VAC; Inom: 10A; Poles: 2; DIN; Charact: C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PLSM-C10/2-MW
    Manufacturer: EATON ELECTRIC
    Manufacturer code: PLSM-C10/2-MW
    • Mounting
    • Operating temperature
    • IP rating
    • Mechanical durability
    • Current rating
    • Rated voltage
    • Electrical life
    • Characteristics
    • Cross section of connecting wires
    • Type of protection
    • Breaker features
    • Short circuit breaking capacity
    • Thickness of connecting busbars

    45.05 € 45.05 € (wo VAT) 45.050000000000004 EUR

    45.05 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Circuit breaker; 230/400VAC; Inom: 10A; Poles: 2; DIN; Charact: C

    Mounting for DIN rail mounting
    Operating temperature -20...50°C
    IP rating IP20
    Mechanical durability 20000cycles
    Current rating 10A
    Rated voltage 230/400V AC
    Electrical life 4000cycles
    Characteristics C
    Cross section of connecting wires 1...25mm<sup>2</sup>
    Type of protection circuit breaker
    Breaker features visual indication of contacts position
    Short circuit breaking capacity 10kA
    Thickness of connecting busbars 0.8...2mm
