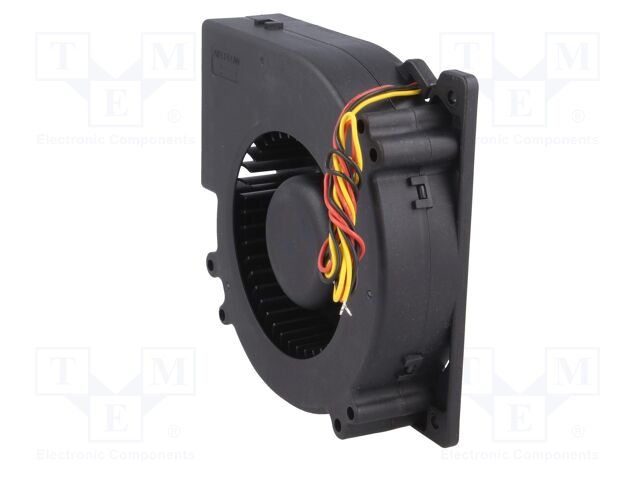

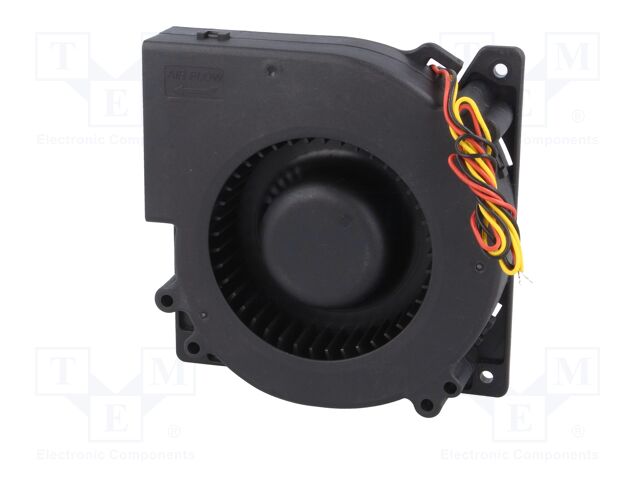

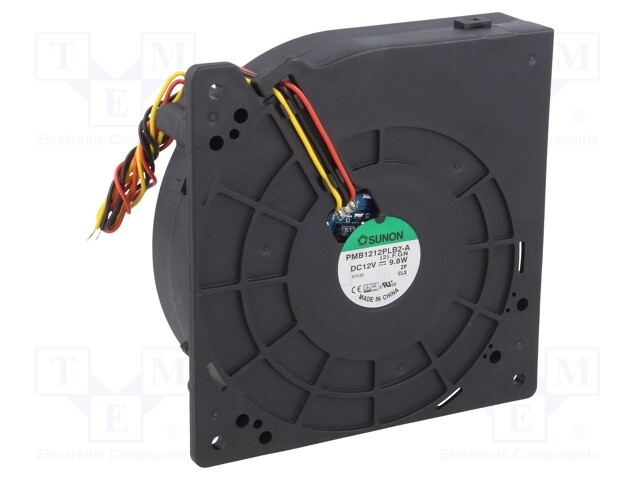

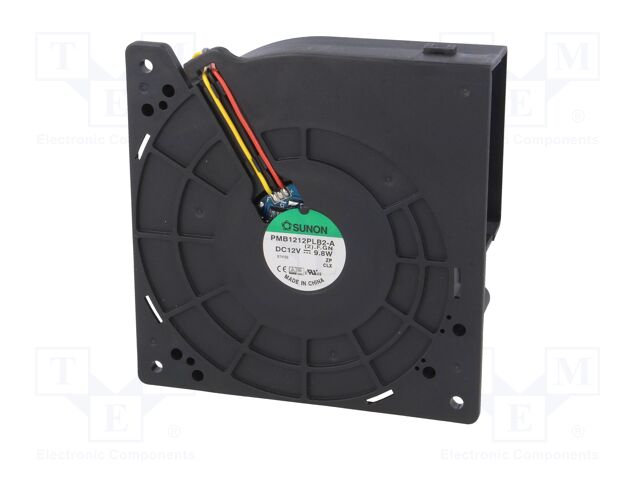

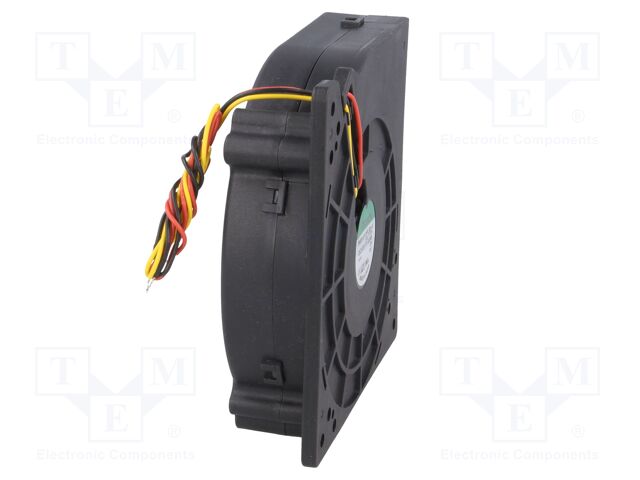

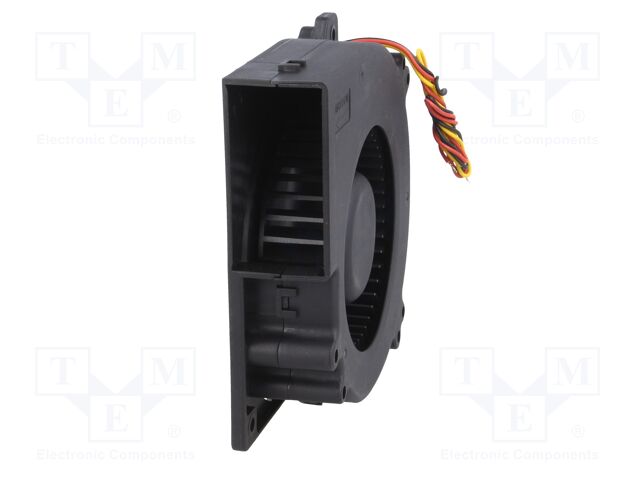

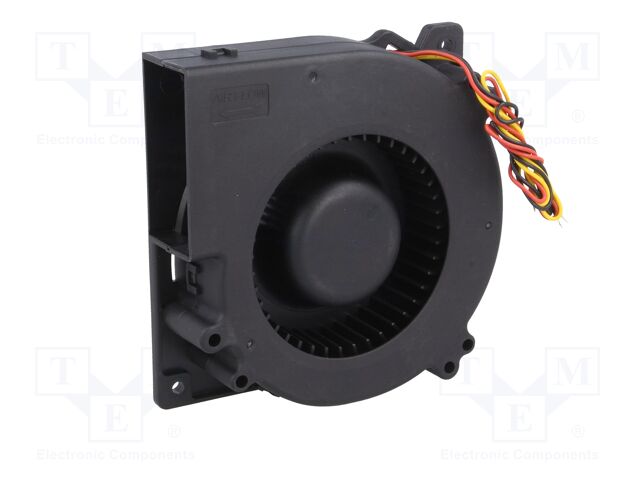

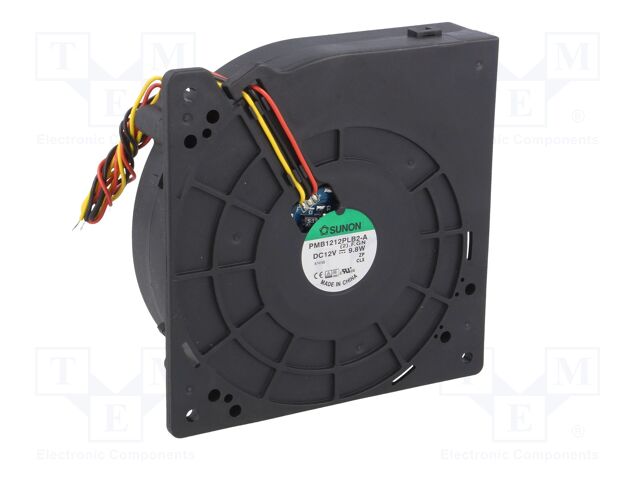

Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PMB1212PLB2-A(2).F.GN
    Manufacturer: SUNON
    Manufacturer code: PMB1212PLB2-A(2).F.GN
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level
    • Signal output

    26.60 € 26.60 € (wo VAT) 26.6 EUR

    26.60 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; blower; 12VDC; 120x120x32mm; 61m3/h; 53.8dBA; ball bearing

    Supply voltage 12V DC
    Operating voltage 6...13.8V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 0.82A
    Fan efficiency 61m<sup>3</sup>/h
    Power consumption 9.8W
    Additional functions Autorestart
    Rotational rate/speed 2500 (±10%)rpm
    Fan motor brushless DC motor
    Fan dimensions 120x120x32mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan blower
    Type of fan DC
    Static pressure 22.6mm H<sub>2</sub>O
    Noise level 53.8dBA
    Signal output F type
