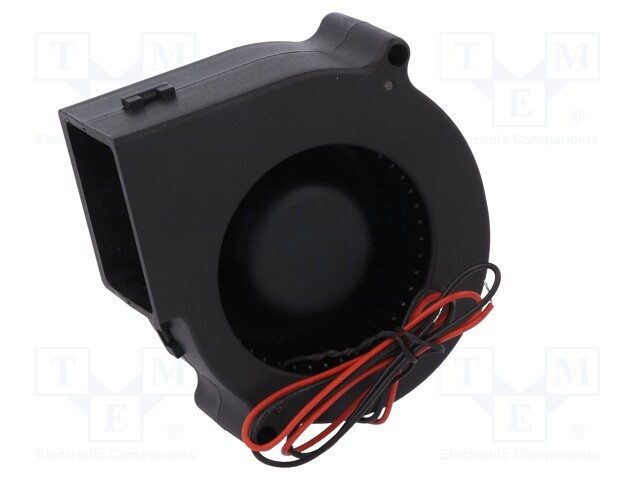

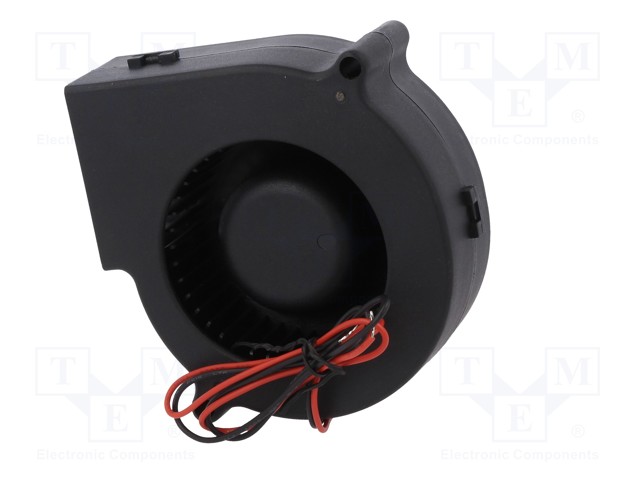

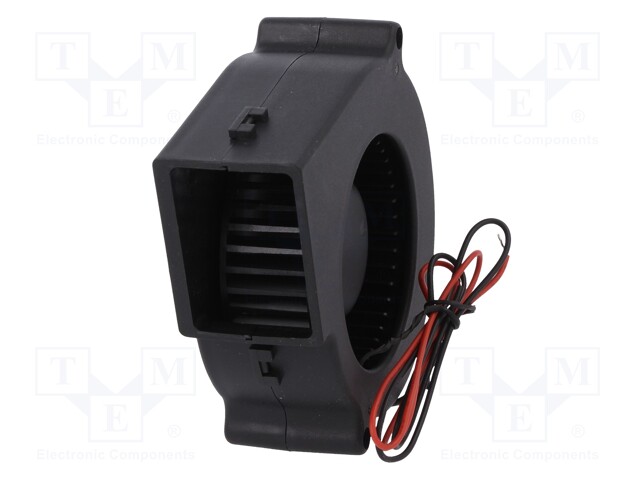

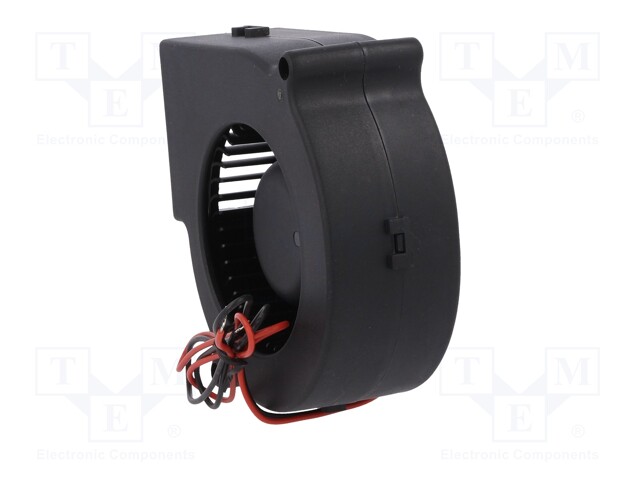

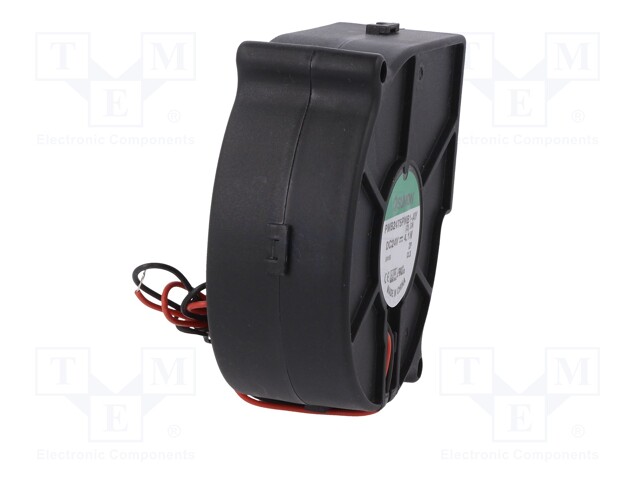

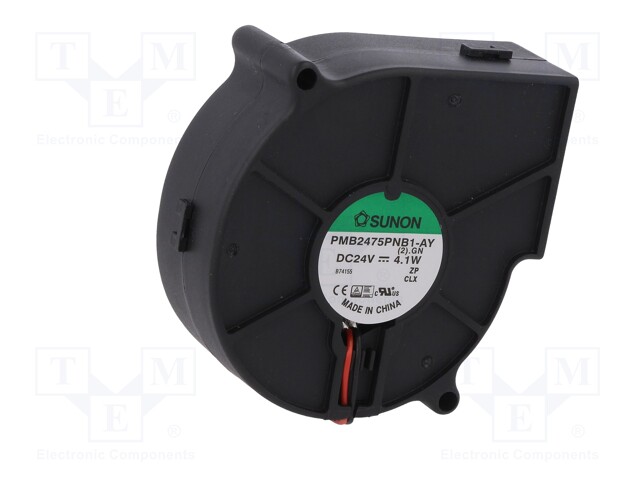

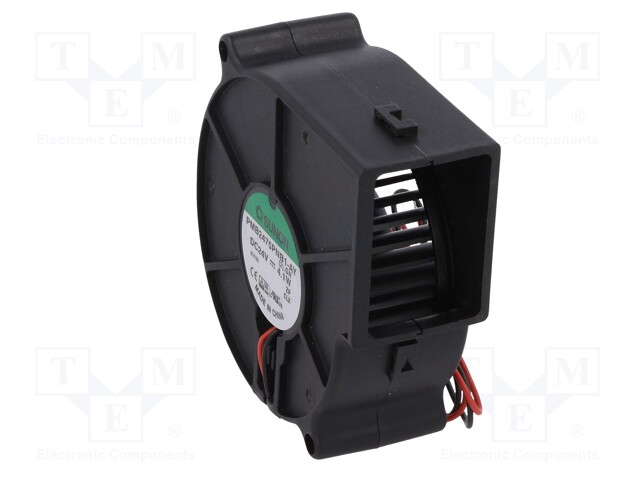

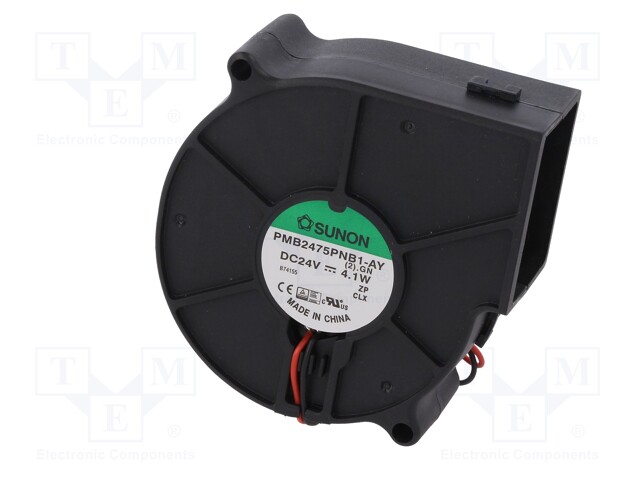

Fan: DC; blower; 24VDC; 75x75x30mm; 23.11m3/h; 43.5dBA; Len: 300mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PMB2475PNB1-AY
    Manufacturer: SUNON
    Manufacturer code: PMB2475PNB1-AY
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; blower; 24VDC; 75x75x30mm; 23.11m3/h; 43.5dBA; Len: 300mm

    Supply voltage 24V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 170mA
    Fan efficiency 23.11m<sup>3</sup>/h
    Power consumption 4.1W
    Additional functions Autorestart
    Rotational rate/speed 3400 (±10%)rpm
    Fan dimensions 75x75x30mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan blower
    Type of fan DC
    Static pressure 15.2mm H<sub>2</sub>O
    Noise level 43.5dBA
