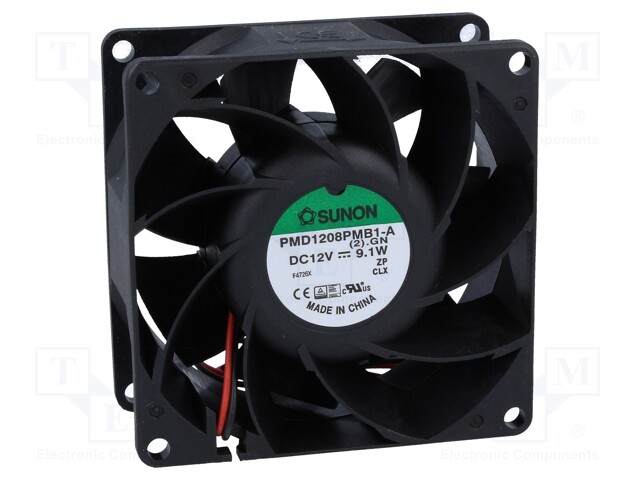

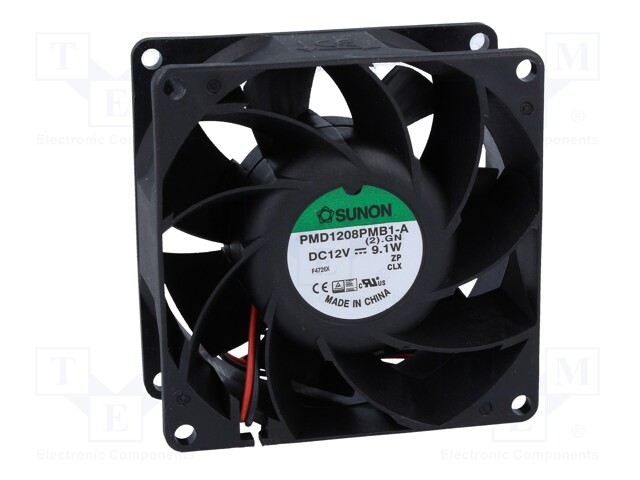

Fan: DC; axial; 12VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PMD1208PMB1-A(2).GN
    Manufacturer: SUNON
    Manufacturer code: PMD1208PMB1-A(2).GN
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    15.26 € 15.26 € (wo VAT) 15.26 EUR

    15.26 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 12VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball bearing

    Supply voltage 12V DC
    Operating voltage 6...13.8V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 0.76A
    Fan efficiency 143m<sup>3</sup>/h
    Power consumption 9.1W
    Additional functions Autorestart
    Rotational rate/speed 5700 (±10%)rpm
    Fan motor brushless DC motor
    Fan dimensions 80x80x38mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class E
    Type of fan DC
    Static pressure 18.8mm H<sub>2</sub>O
    Noise level 55.2dBA
