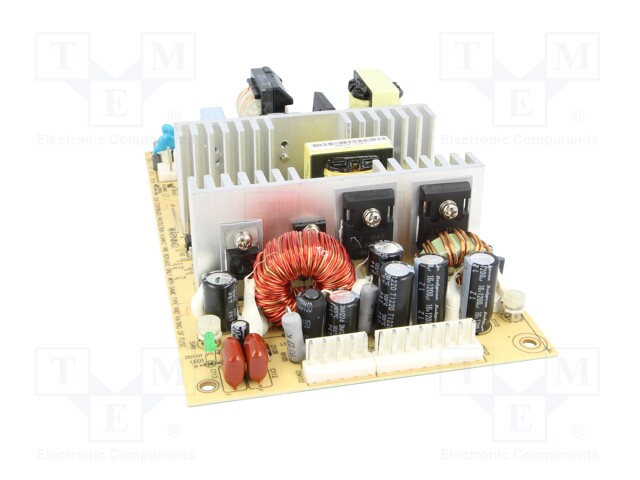

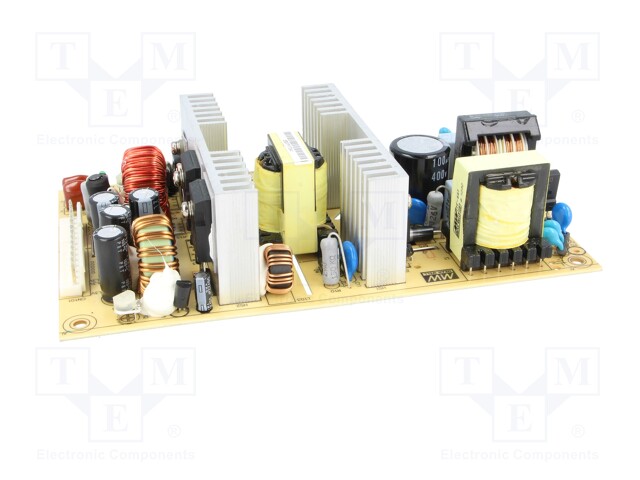

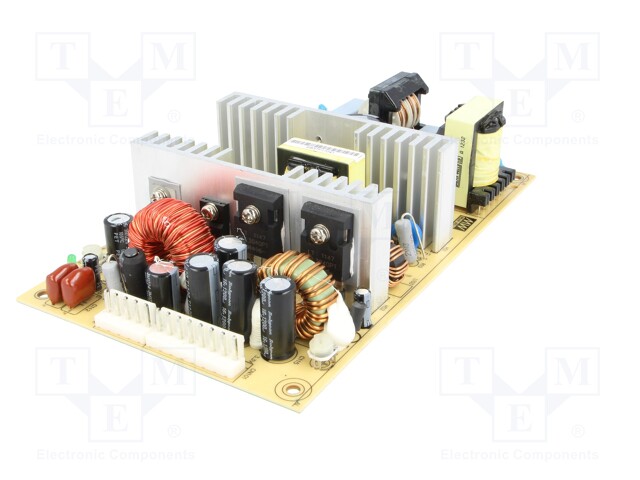

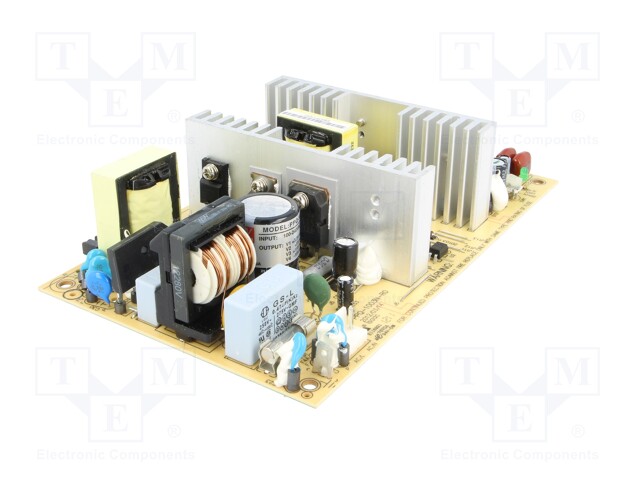

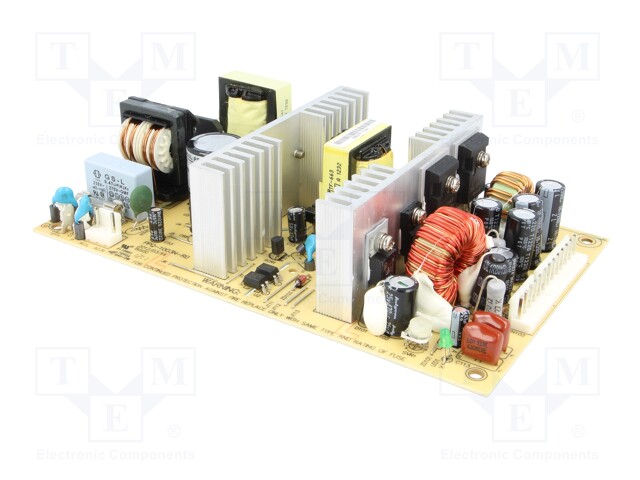

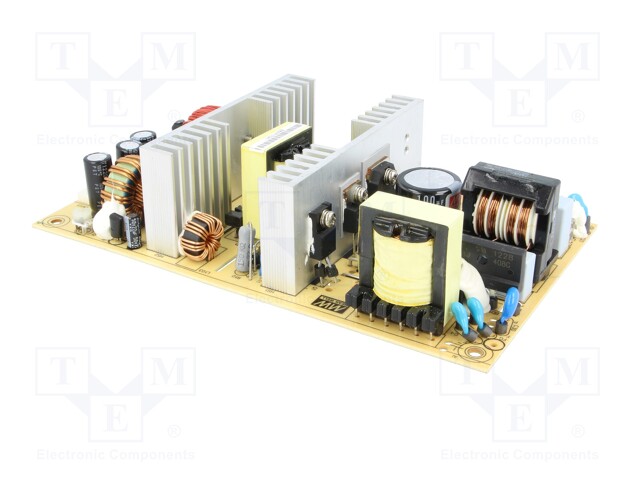

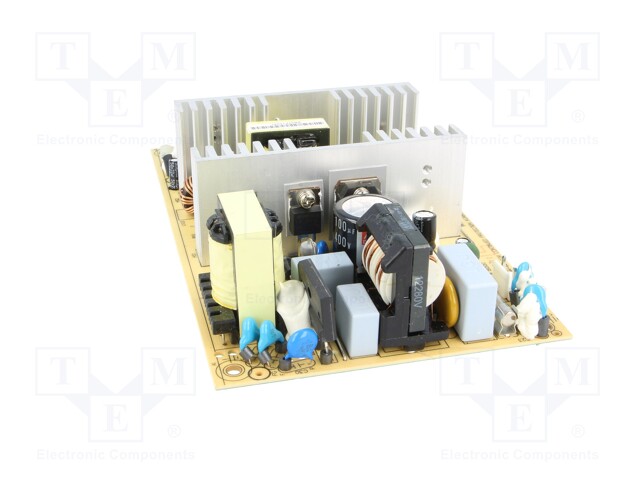

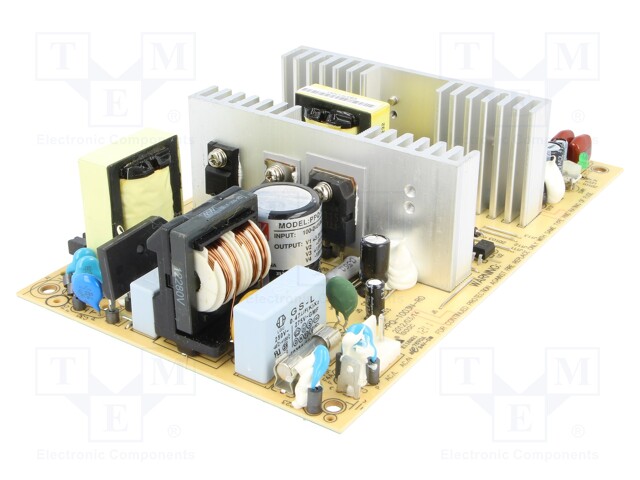

Power supply: switched-mode; 110W; 127÷370VDC; 90÷264VAC; OUT: 4

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PPQ-1003C
    Manufacturer: MEAN WELL
    Manufacturer code: PPQ-1003C
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Body dimensions
    • Output voltage
    • Additional functions
    • Efficiency
    • Output voltage 3
    • Output current 2
    • Output voltage 2
    • Output current 3
    • Number of outputs
    • Electrical connection
    • Kind of power supply
    • Output voltage 4
    • Output current 4

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 110W; 127÷370VDC; 90÷264VAC; OUT: 4

    Output current 10 (0...15)A
    Supply voltage 90...264V AC, 127...370V DC
    Power 110W
    Operating temperature -10...60°C
    Protection anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series PPQ-1003

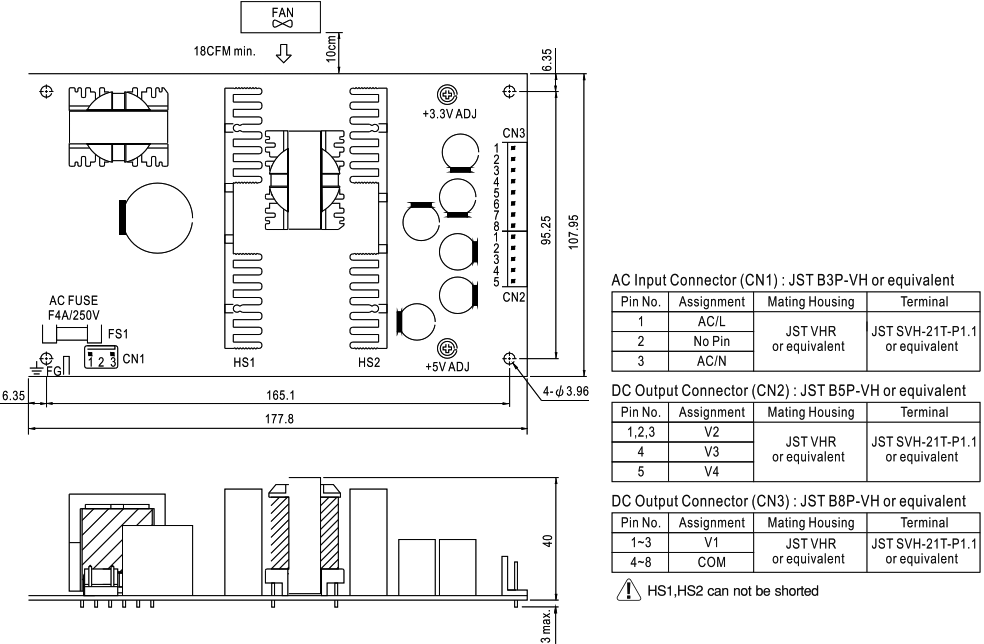

    Body dimensions 177.8x108x40mm
    Output voltage 3.3V DC
    Additional functions active PFC
    Efficiency 76%
    Output voltage 3 15V DC
    Output current 2 10 (2...15)A
    Output voltage 2 5V DC
    Output current 3 2 (0.2...3)A
    Number of outputs 4
    Electrical connection plug with 3,96mm pitch
    Kind of power supply open
    Output voltage 4 -15V DC
    Output current 4 0.3 (0...1)A
