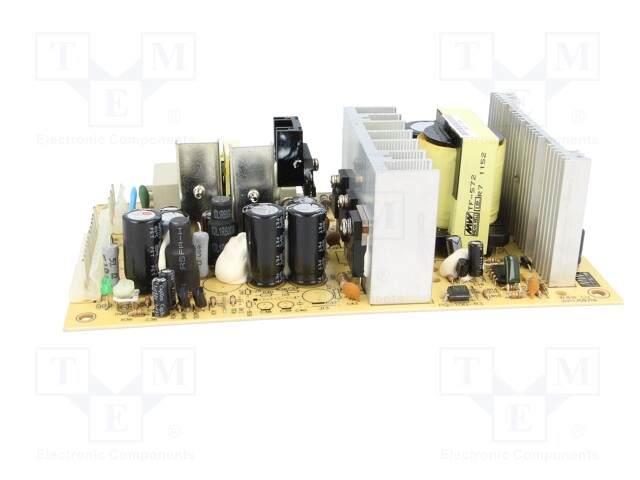

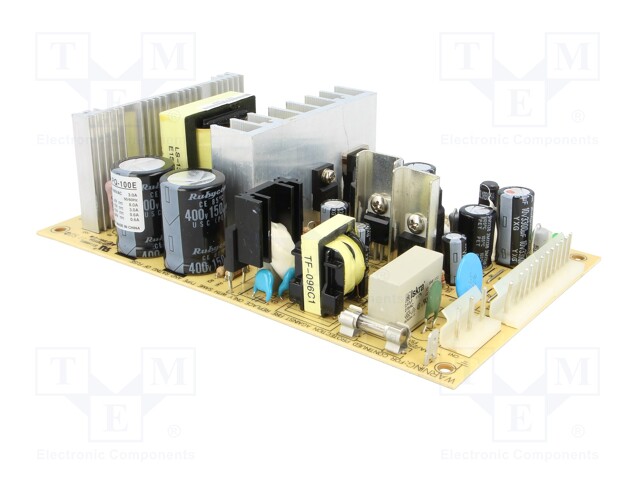

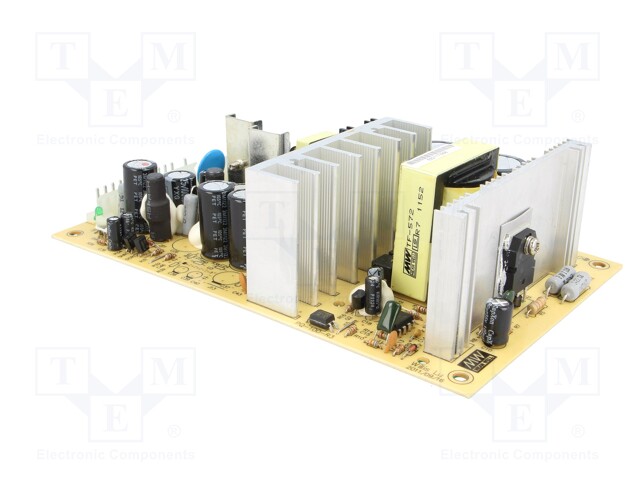

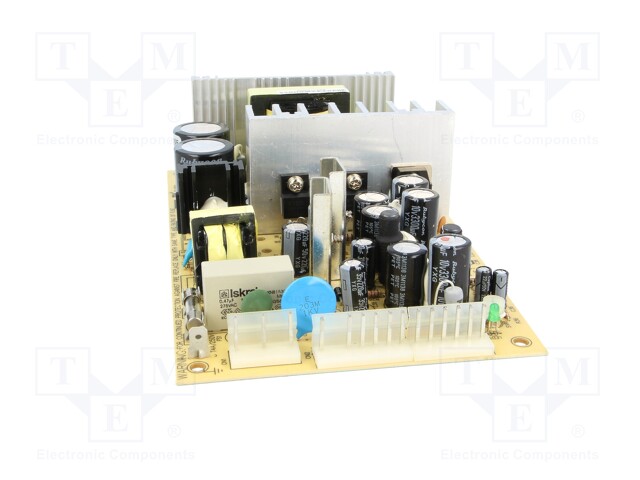

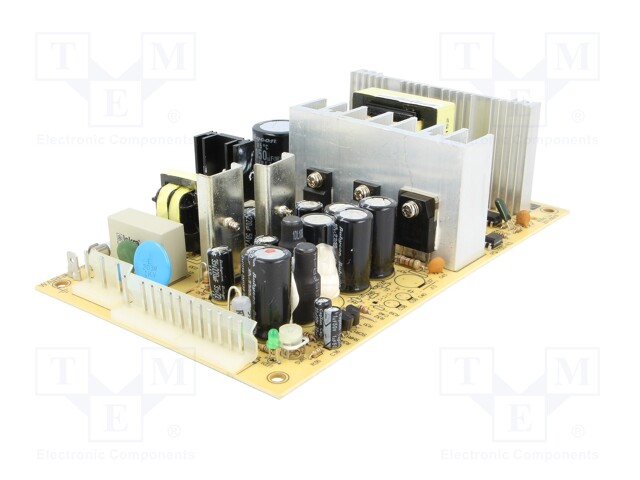

Power supply: switched-mode; 99.4W; OUT: 4; 5VDC; 12VDC; 15VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PQ-100E
    Manufacturer: MEAN WELL
    Manufacturer code: PQ-100E
    • Output current
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Body dimensions
    • Output voltage
    • Efficiency
    • Output voltage 3
    • Output current 2
    • Output voltage 2
    • Output current 3
    • Number of outputs
    • Electrical connection
    • Kind of power supply
    • Output voltage 4
    • Output current 4

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 99.4W; OUT: 4; 5VDC; 12VDC; 15VDC; 8A

    Output current 8A
    Power 99.4W
    Operating temperature -10...60°C
    Protection anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series PQ-100

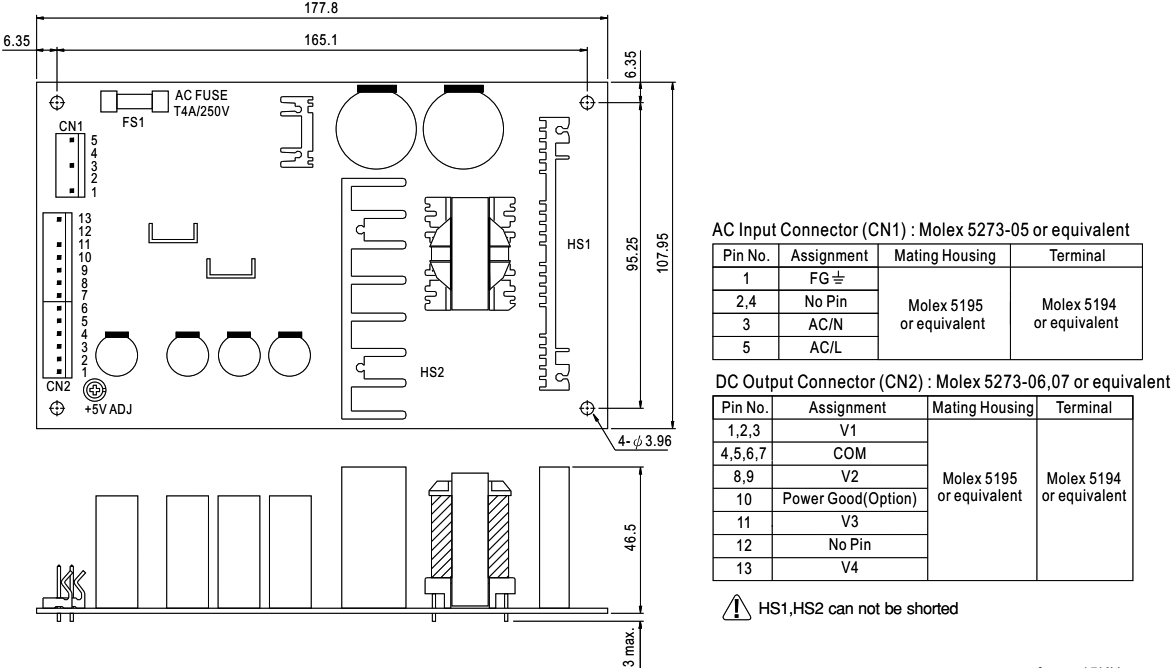

    Body dimensions 177.8x108x46.5mm
    Output voltage 5V DC
    Efficiency 74%
    Output voltage 3 15V DC
    Output current 2 3A
    Output voltage 2 12V DC
    Output current 3 600mA
    Number of outputs 4
    Electrical connection plug with 3,96mm pitch
    Kind of power supply open
    Output voltage 4 24V DC
    Output current 4 0.6A
