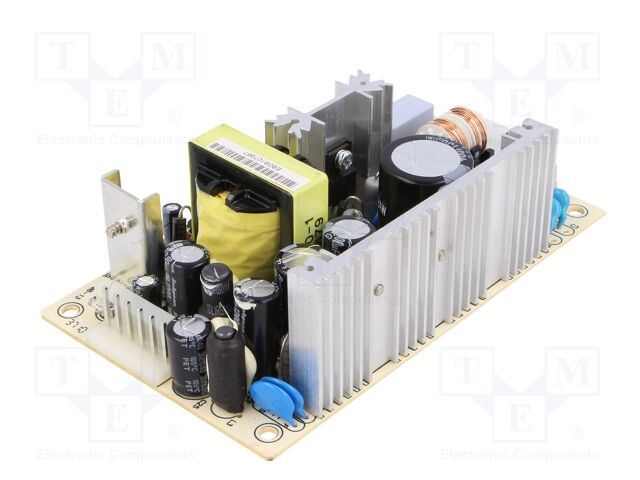

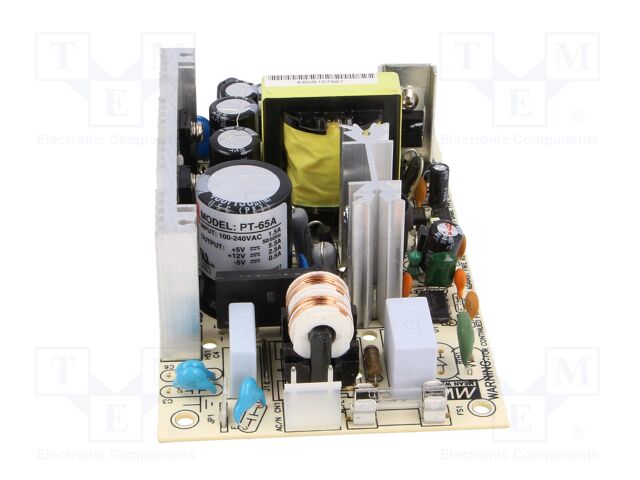

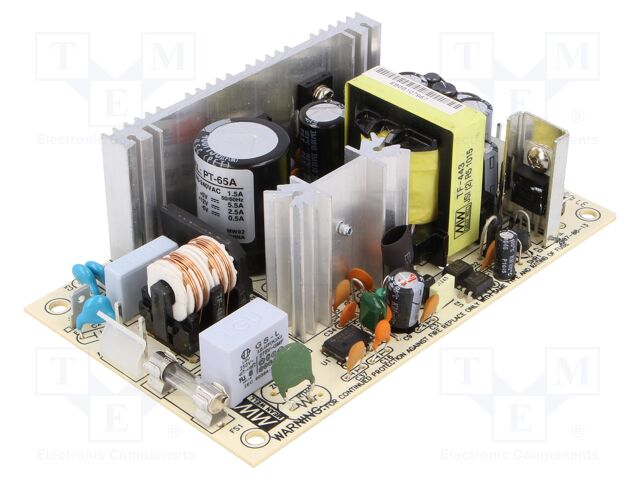

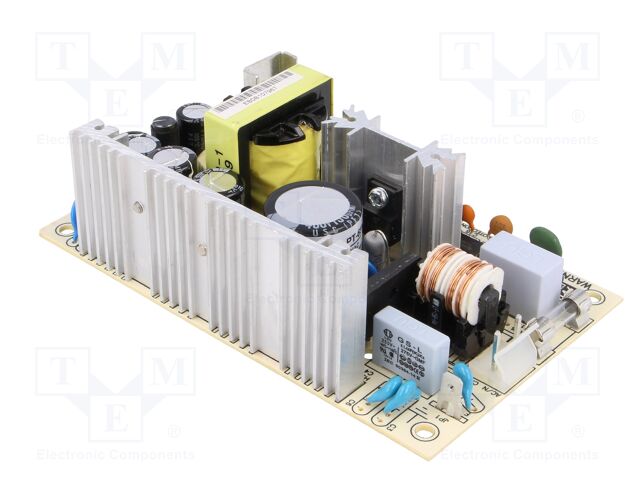

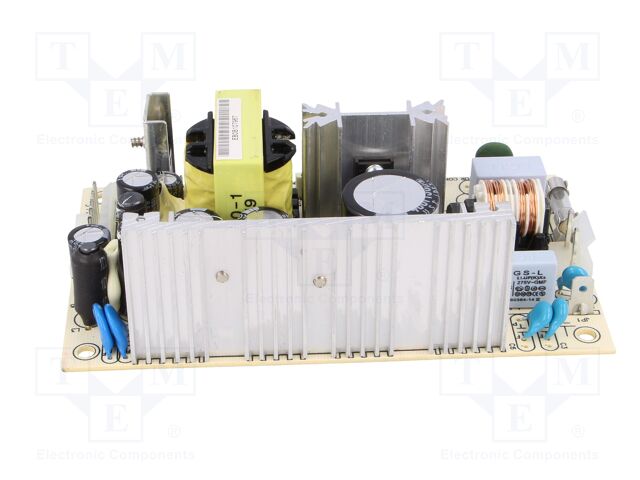

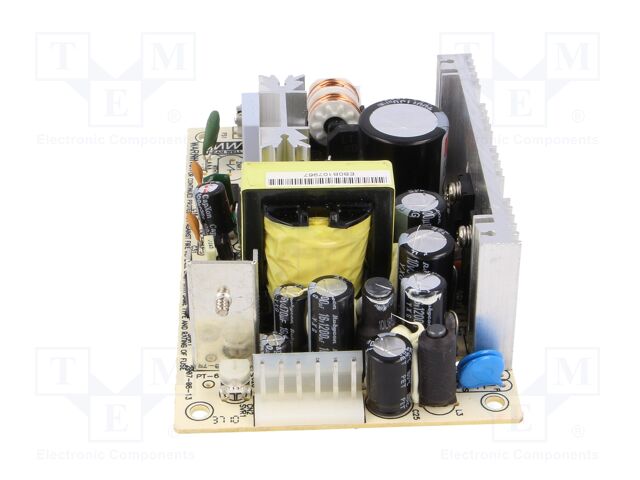

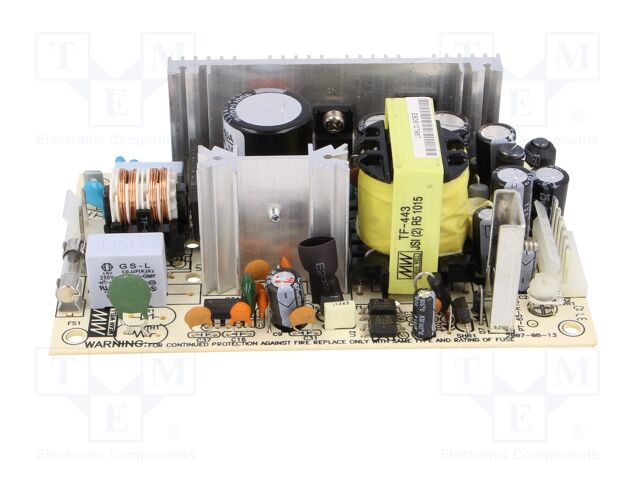

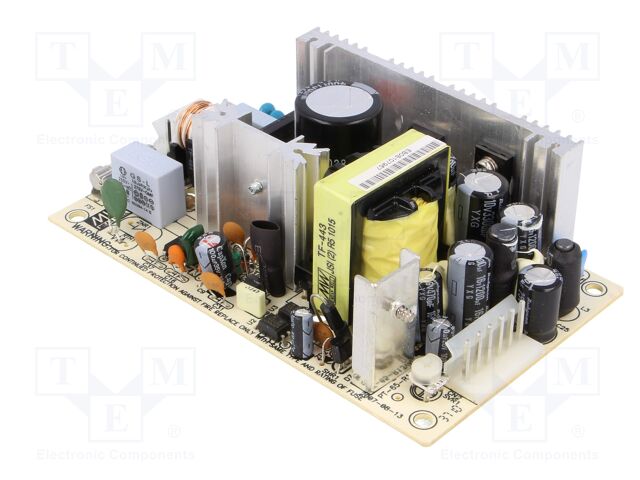

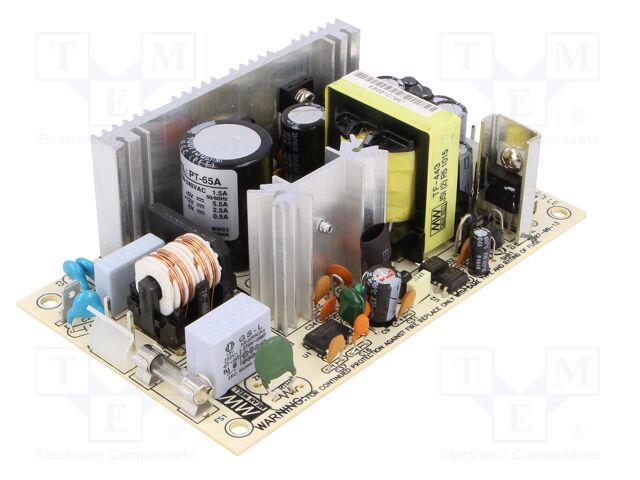

Power supply: switching; open; 60W; 120÷370VDC; 90÷264VAC; OUT: 3

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PT-65A
    Manufacturer: MEAN WELL
    Manufacturer code: PT-65A
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Body dimensions
    • Output voltage
    • Efficiency
    • Output voltage 3
    • Output current 2
    • Output voltage 2
    • Output current 3
    • Number of outputs
    • Electrical connection
    • Kind of power supply

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switching; open; 60W; 120÷370VDC; 90÷264VAC; OUT: 3

    Output current 5.5 (0.4...7)A
    Supply voltage 90...264V AC, 120...370V DC
    Power 60W
    Operating temperature -10...60°C
    Protection anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series PT-65

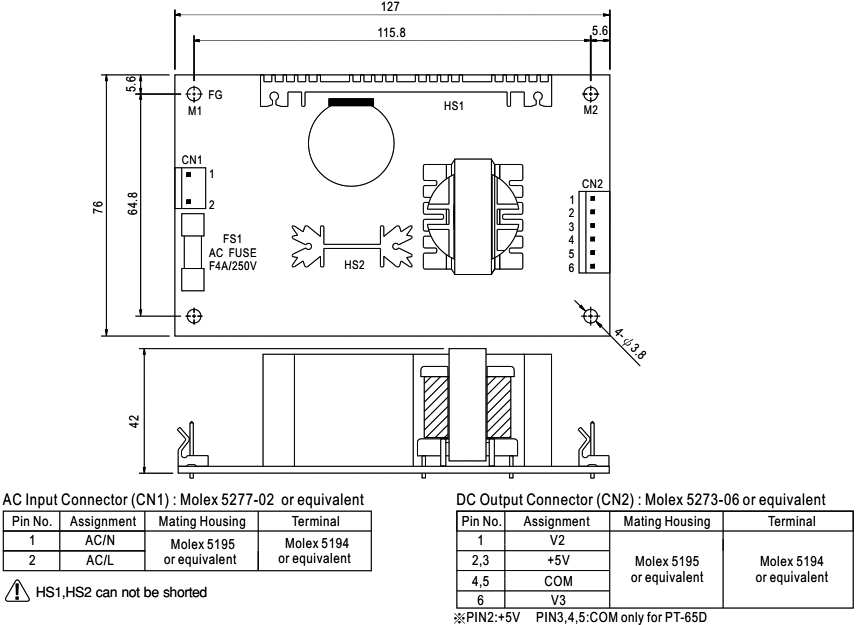

    Body dimensions 127x76.2x42mm
    Output voltage 5V DC
    Efficiency 76%
    Output voltage 3 -5V DC
    Output current 2 2.5 (0.2...3.2)A
    Output voltage 2 12V DC
    Output current 3 0.5 (0...0.7)A
    Number of outputs 3
    Electrical connection plug with 3,96mm pitch
    Kind of power supply open
