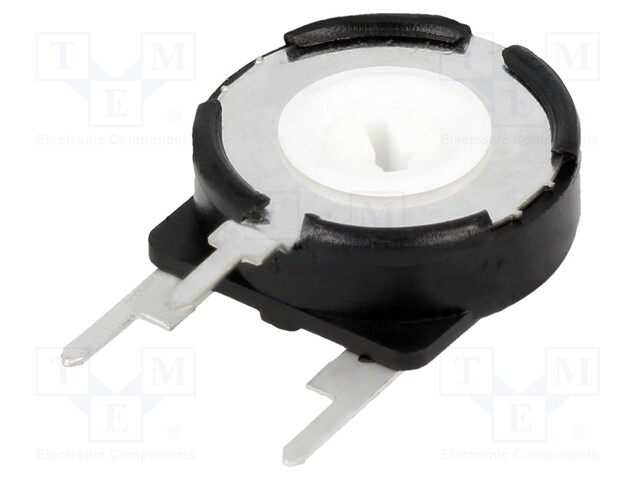

Potentiometer: mounting; single turn,vertical; 50kΩ; 250mW; ±30%

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: PT15LH05503A2020S
    Manufacturer: PIHER
    Manufacturer code: PT15LH05503A2020S
    • Mounting
    • Power
    • Resistance
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Height
    • Body dimensions
    • Diameter
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    0.60 € 0.60 € (wo VAT) 0.6 EUR

    0.60 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; single turn,vertical; 50kΩ; 250mW; ±30%

    Mounting THT
    Power 250mW
    Resistance 50kΩ
    Operating voltage 250V
    Operating temperature -25...70°C
    Tolerance ±30%
    Terminal pitch 5x10mm
    Height 6mm
    Body dimensions Ø15x6mm
    Diameter 15mm
    Kind of potentiometer single turn, vertical
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 265 ±5°
    Electrical rotation angle 250 ±20°
