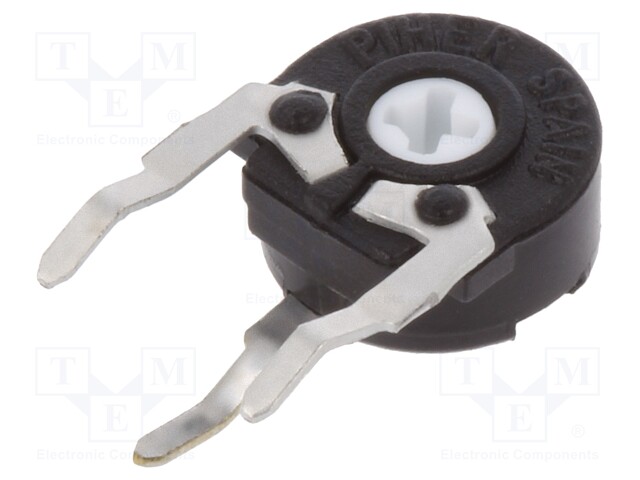

Potentiometer: mounting; single turn,vertical; 2.5kΩ; 100mW; ±20%

    Multiples: 1.0
    Minimum quantity: 2.0
    Product code: PT6KH252A2020
    Manufacturer: PIHER
    Manufacturer code: PT6KH252A2020
    • Mounting
    • Power
    • Resistance
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Height
    • Body dimensions
    • Diameter
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    0.47 € 0.47 € (wo VAT) 0.47000000000000003 EUR

    0.47 €

    This combination does not exist.

    Add to Cart

    Product downloads

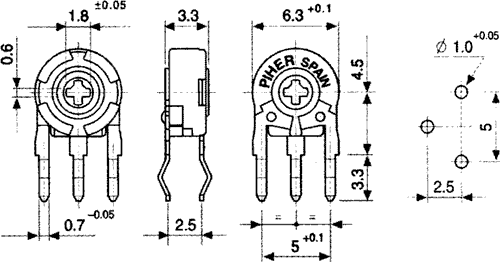

    Specification for Potentiometer: mounting; single turn,vertical; 2.5kΩ; 100mW; ±20%

    Mounting THT
    Power 100mW
    Resistance 2.5kΩ
    Operating voltage 100V
    Operating temperature -25...70°C
    Tolerance ±20%
    Terminal pitch 5x2.5mm
    Height 3.3mm
    Body dimensions Ø6.3x3.3mm
    Diameter 6.3mm
    Kind of potentiometer single turn, vertical
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 235 ±5°
    Electrical rotation angle 220 ±20°
