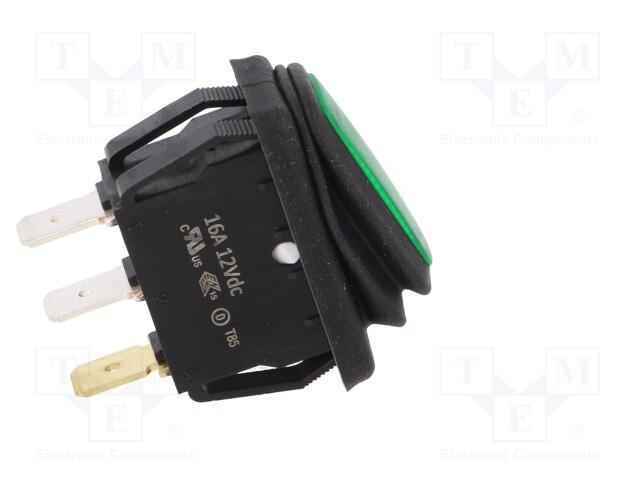

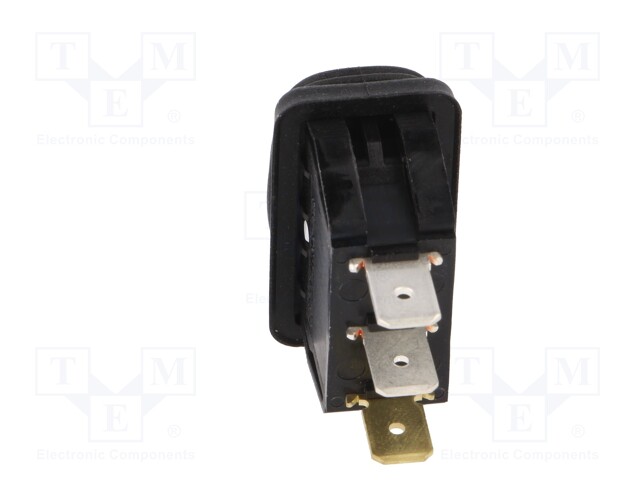

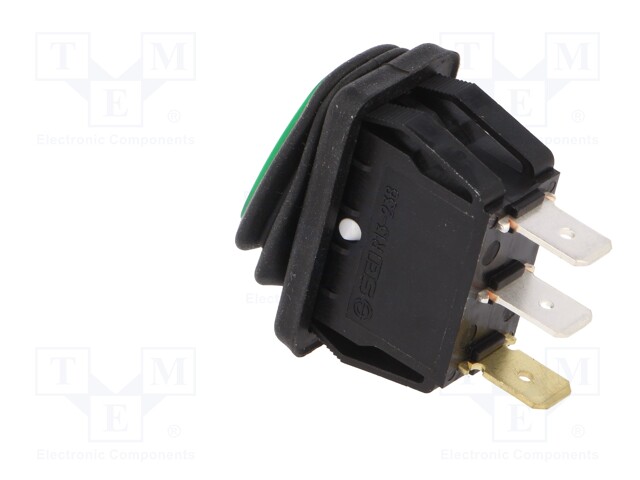

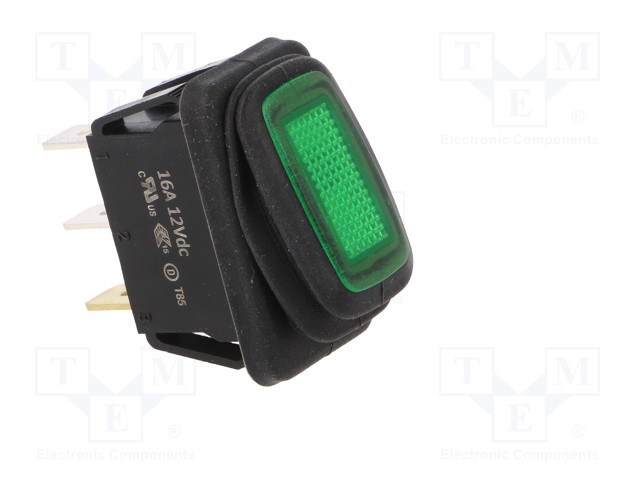

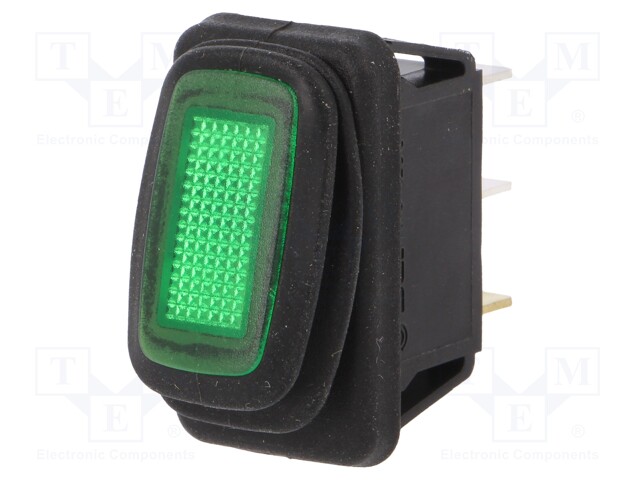

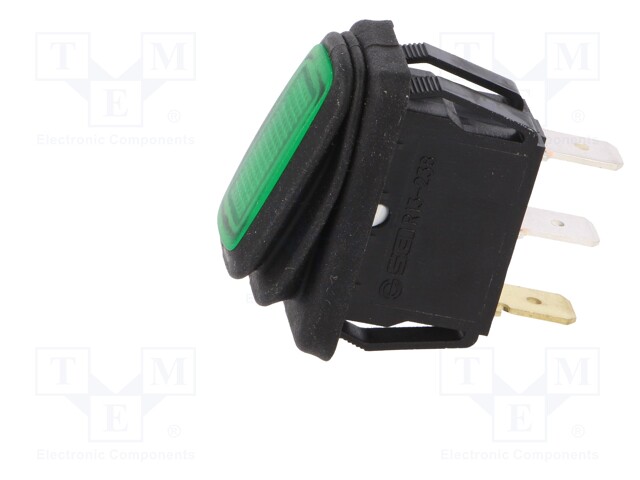

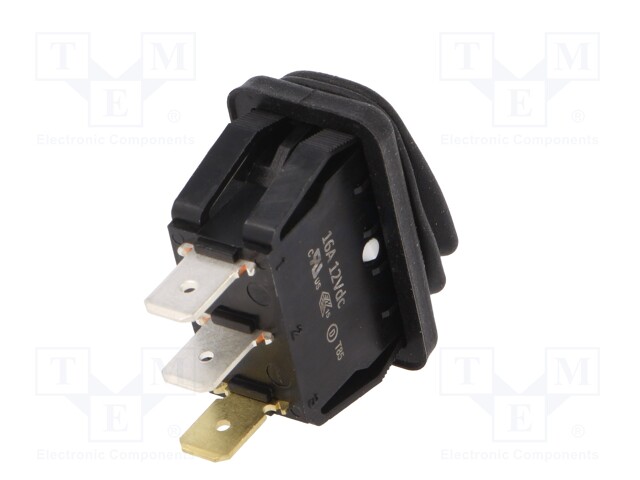

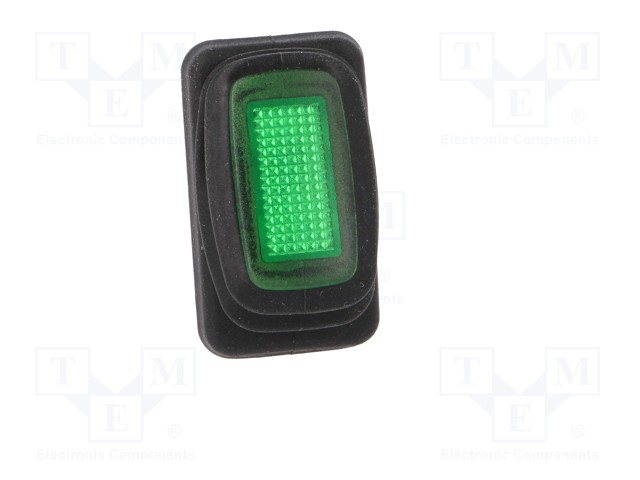

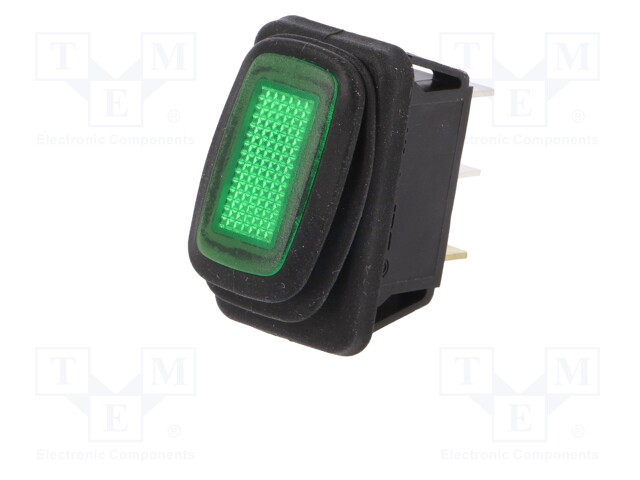

ROCKER; SPST; Pos: 2; OFF-ON; 16A/12VDC; green; IP65; LED 12VDC; 50mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R13-238B8-01-G-L1
    Manufacturer: SCI
    Manufacturer code: R13-238B8-01-G-L1
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Flammability rating
    • Mounting hole diameter
    • Body colour
    • Body dimensions
    • Dielectric strength
    • Panel thickness
    • Backlight colour
    • Illumination
    • Shape
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Key button colour
    • Button marking
    • Illumination voltage

    2.88 € 2.88 € (wo VAT) 2.88 EUR

    2.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; SPST; Pos: 2; OFF-ON; 16A/12VDC; green; IP65; LED 12VDC; 50mΩ

    Operating temperature -20...85°C
    IP rating IP65
    Type of switch ROCKER
    Number of positions 2
    Leads connectors
    Max. contact resistance: 50mΩ
    Flammability rating UL94V-2
    Mounting hole diameter 29.4x13.8mm
    Body colour black
    Body dimensions 31.5x18.5x21.1mm
    Dielectric strength 1.5kV AC
    Panel thickness max. 4.5mm
    Backlight colour green
    Illumination LED
    Shape rectangular
    Contacts configuration SPST
    DC contacts rating @R 16A / 12V DC
    Switching method ON-OFF
    Stable positions number 2
    Key button colour green
    Button marking blank
    Illumination voltage 12V
