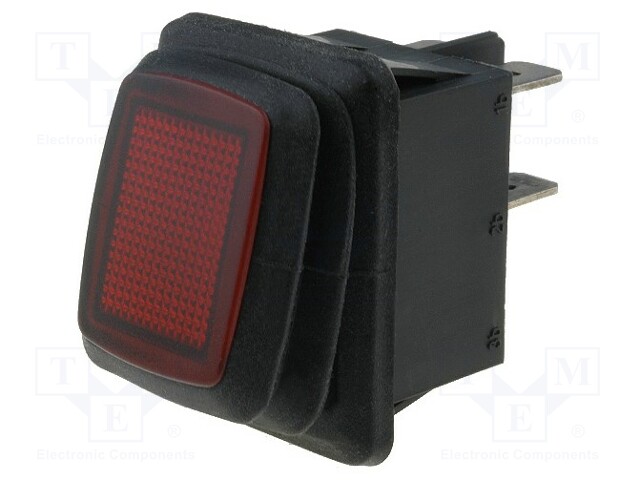

ROCKER; DPST; Pos: 2; OFF-ON; 10A/250VAC; red; IP65; LED; 50mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R13-285A8L1-01-BNNR5
    Manufacturer: SCI
    Manufacturer code: R13-285A8L1-01-BNNR5
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Flammability rating
    • Mounting hole diameter
    • Body colour
    • Body dimensions
    • Panel thickness
    • Backlight colour
    • Illumination
    • Shape
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Key button colour
    • Button marking

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; DPST; Pos: 2; OFF-ON; 10A/250VAC; red; IP65; LED; 50mΩ

    Operating temperature -20...85°C
    IP rating IP65
    Type of switch ROCKER
    Number of positions 2
    Leads connectors
    Max. contact resistance: 50mΩ
    Flammability rating UL94V-2
    Mounting hole diameter 30.4x22.2mm
    Body colour black

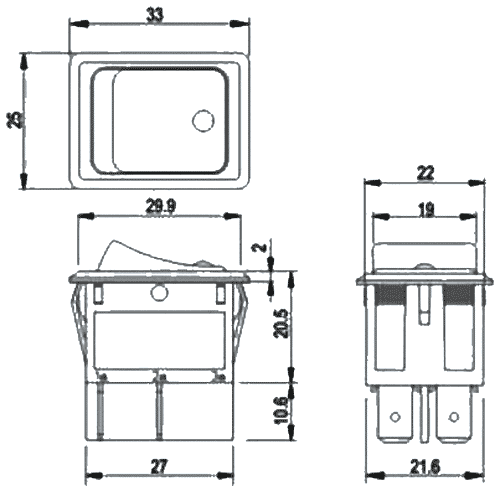

    Body dimensions 25x33x22.5mm
    Panel thickness max. 4mm
    Backlight colour red
    Illumination LED
    Shape rectangular
    Contacts configuration DPST
    AC contacts rating @R 10A / 250V AC
    Switching method ON-OFF
    Stable positions number 2
    Key button colour red
    Button marking blank
