Relay: electromagnetic; SPDT; Ucoil:5VDC; 30A; Series: R30N; 0.9W

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R30N1011851005
    Manufacturer:
    Manufacturer code:
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • OEM number

    2.31 € 2.31 € (wo VAT) 2.31 EUR

    2.31 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil:5VDC; 30A; Series: R30N; 0.9W

    Mounting PCB
    Operating temperature -55...100°C
    IP rating IP64
    Contact material AgCdO

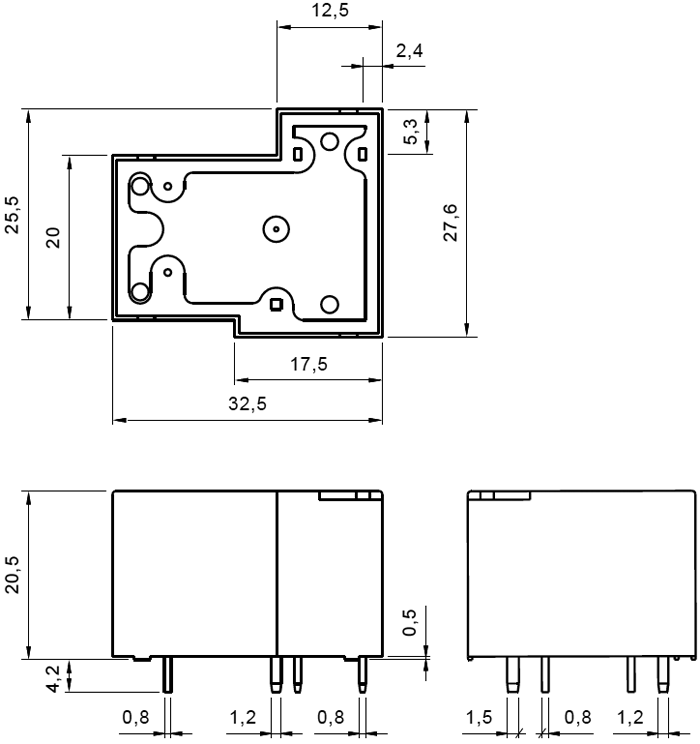

    Body dimensions 32.5x27.6x20.5mm
    Mechanical durability 100000000cycles
    Switched voltage max. 110V DC, max. 300V AC
    Electrical life 1000000cycles
    Coil resistance 28Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 30A / 14V DC
    Contact resistance 30mΩ
    AC contacts rating @R 30A / 240V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Relay series R30N
    OEM number 2614722
