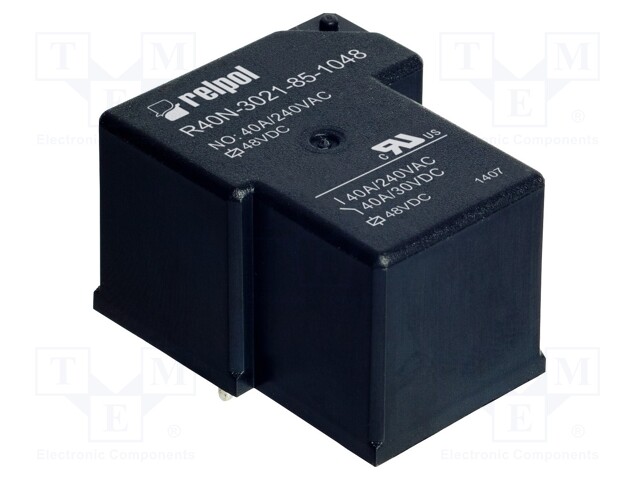

Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 40A; Series: R40N

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R40N-3021-85-1048
    Manufacturer: RELPOL
    Manufacturer code: R40N-3021-85-1048
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    6.90 € 6.90 € (wo VAT) 6.9 EUR

    6.90 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 40A; Series: R40N

    Mounting PCB
    Operating temperature -55...100°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Body dimensions 32.5x27.6x20.5mm
    Mechanical durability 100000000cycles
    Switched voltage max. 110V DC, max. 300V AC
    Electrical life 1000000cycles
    Coil resistance 2.56kΩ
    Rated coil voltage 48V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 40A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 40A / 240V AC
    Contact current max. 40A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Operate time 15ms
    Release time 10ms
    OEM number 2614824
