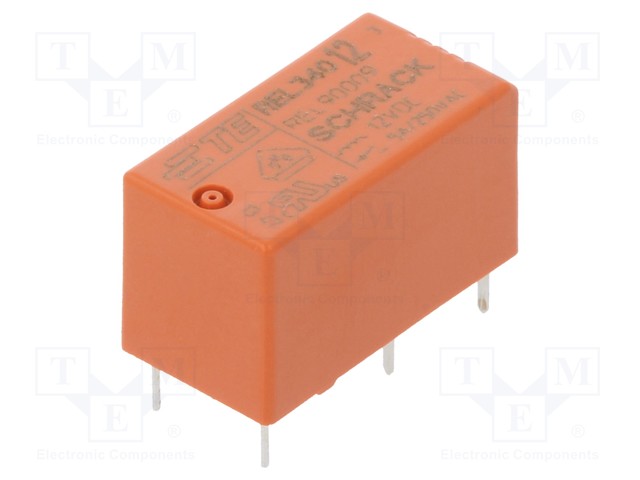

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A; 400Ī©

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: REL34012
    Manufacturer:
    Manufacturer code:
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A; 400Ī©

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi 90/10
    Terminal pitch 7.62mm
    Body dimensions 20.7x10.7x12mm
    Switched voltage max. 400V AC
    Coil resistance 400Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 360mW
    Relay series REL
