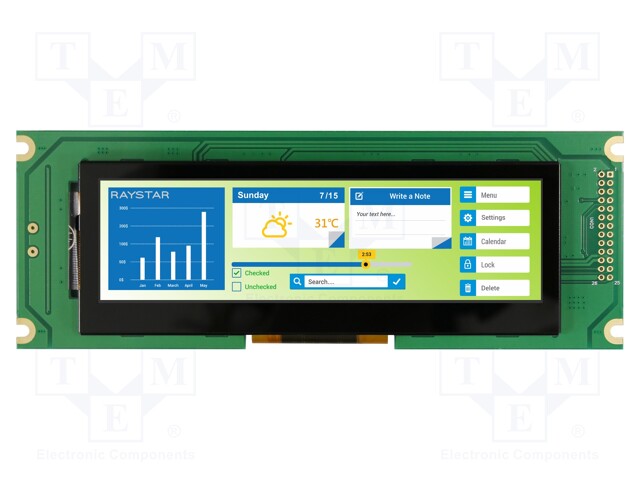

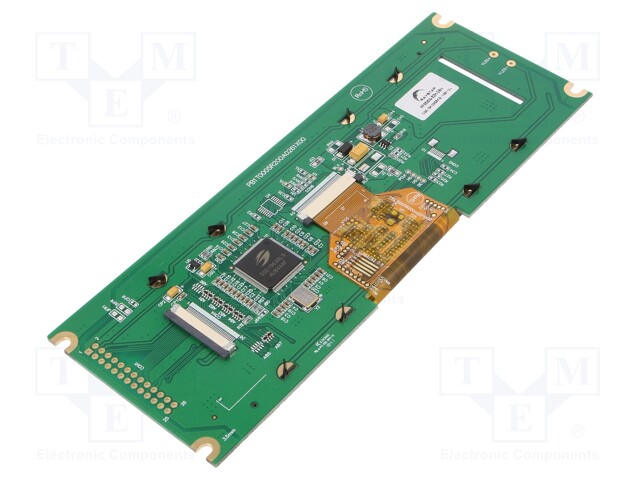

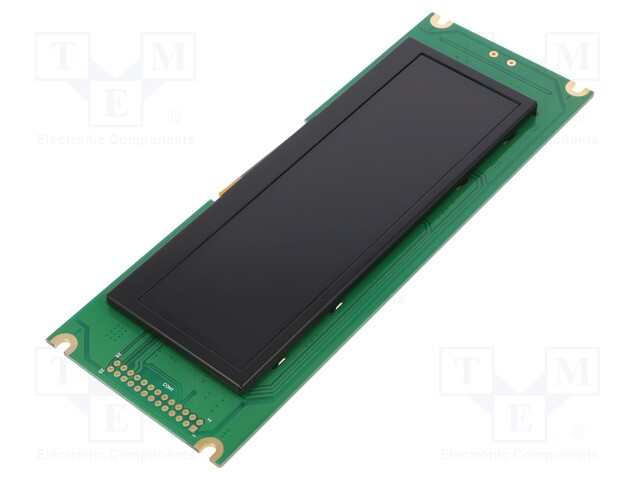

Display: TFT; 5.2"; 480x128; Illumin: LED; Dim: 180x65x8.8mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RFS520Q-EZH-DBN
    Manufacturer: RAYSTAR OPTRONICS
    Manufacturer code: RFS520Q-EZH-DBN
    • Supply voltage
    • Colour
    • Interface
    • Interface
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Microcontroller
    • Display resolution
    • Display features
    • Screen size
    • Kind of display
    • Backlight colour
    • Illumination
    • Window dimensions (H x W)
    • Type of display
    • Ribbon cable pitch

    62.44 € 62.44 € (wo VAT) 62.440000000000005 EUR

    62.44 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: TFT; 5.2"; 480x128; Illumin: LED; Dim: 180x65x8.8mm

    Supply voltage 3...3.3V DC
    Colour RGB
    Interface 16bit MCU, 8080, 8bit MCU
    Number of pins 36
    Dimensions 180x65x8.8mm
    Type of pin configuration 1x36
    Microcontroller SSD1963
    Display resolution 480x128
    Display features mounting frame
    Screen size 5.2"
    Kind of display graphical
    Backlight colour white
    Illumination LED
    Window dimensions (H x W) 133x39mm
    Type of display TFT
    Ribbon cable pitch 500µm
