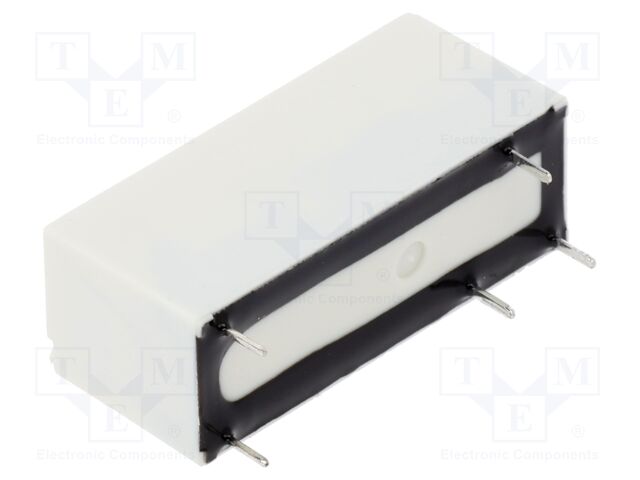

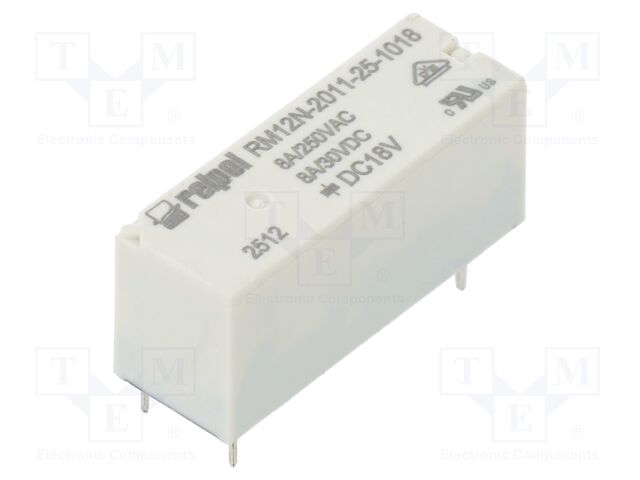

Relay: electromagnetic; SPDT; Ucoil: 18VDC; Icontacts max: 8A; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM12N-2011-25-1018
    Manufacturer: RELPOL
    Manufacturer code: RM12N-2011-25-1018
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Current rating
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 18VDC; Icontacts max: 8A; PCB

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP40
    Contact material AgNi
    Current rating 8A
    Switched voltage max. 440V AC
    Rated coil voltage 18V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 23.4V DC
    Type of relay electromagnetic
    Coil power consumption 290mW
    Operate time 10ms
    Release time 5ms
