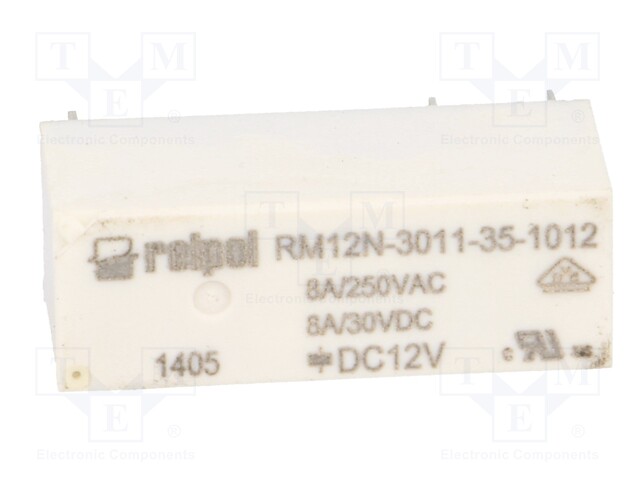

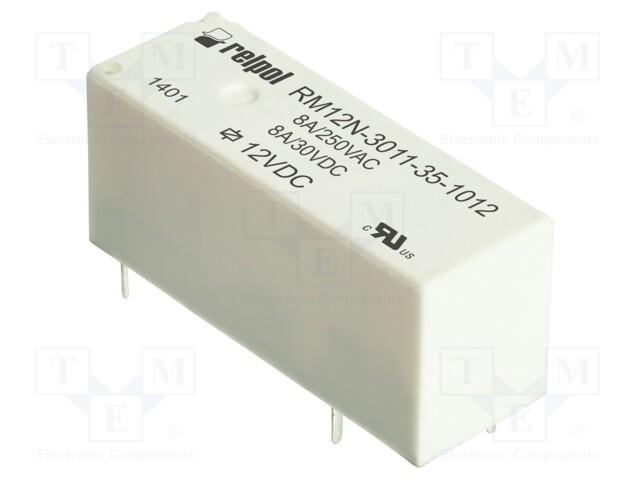

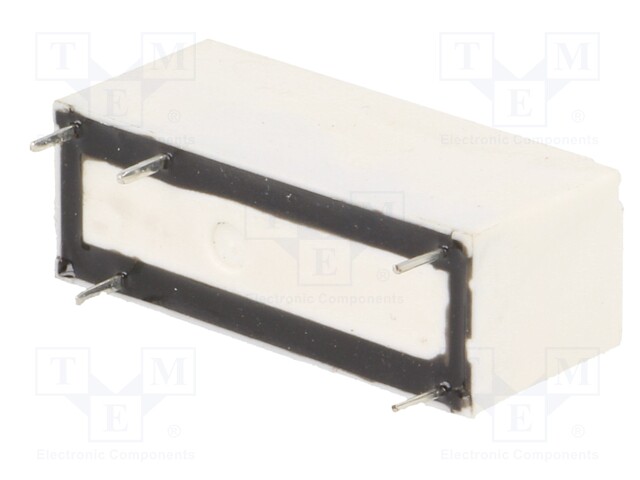

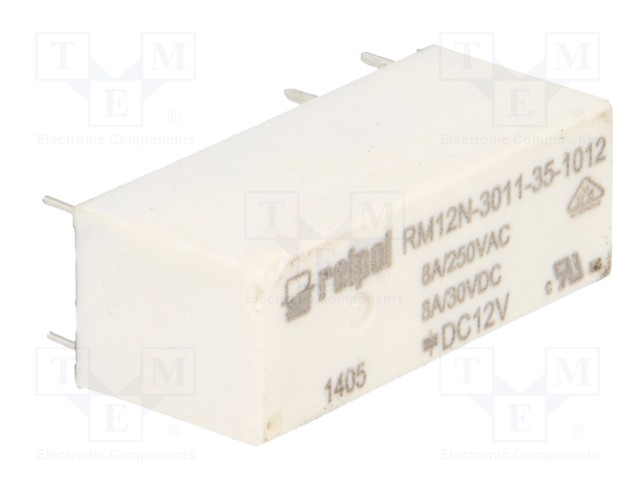

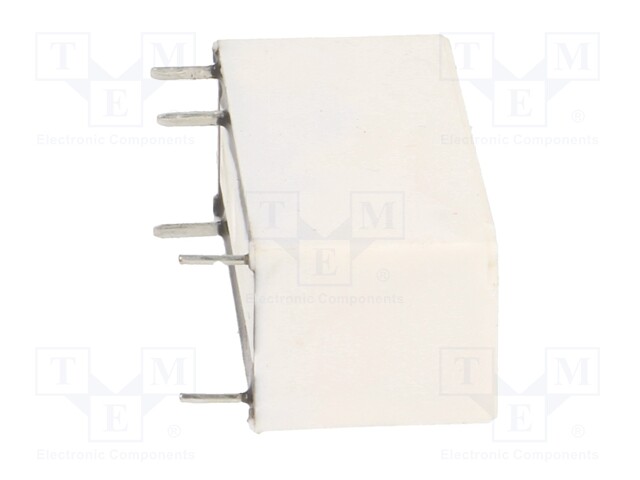

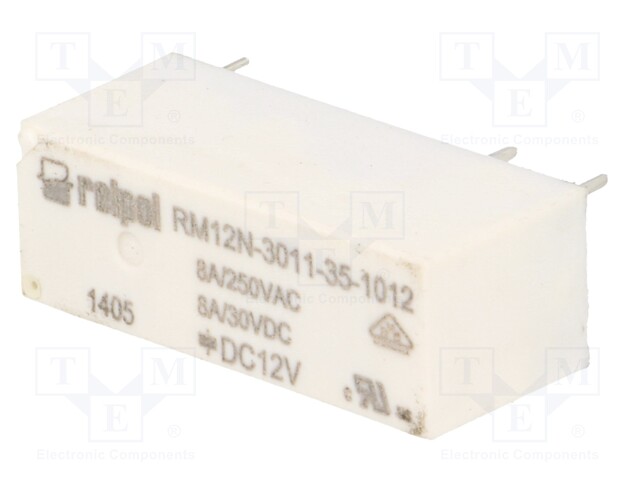

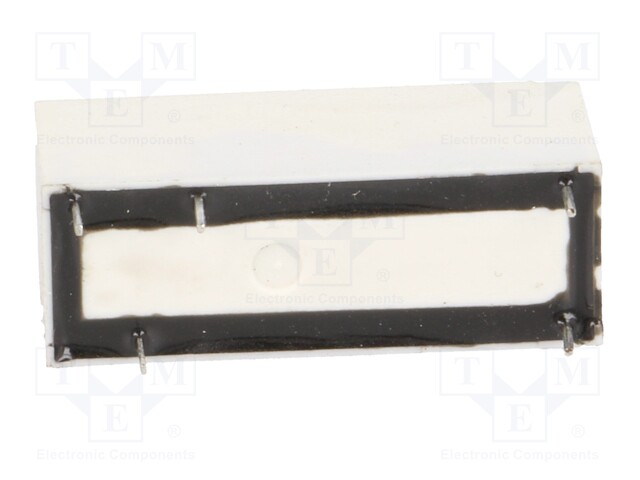

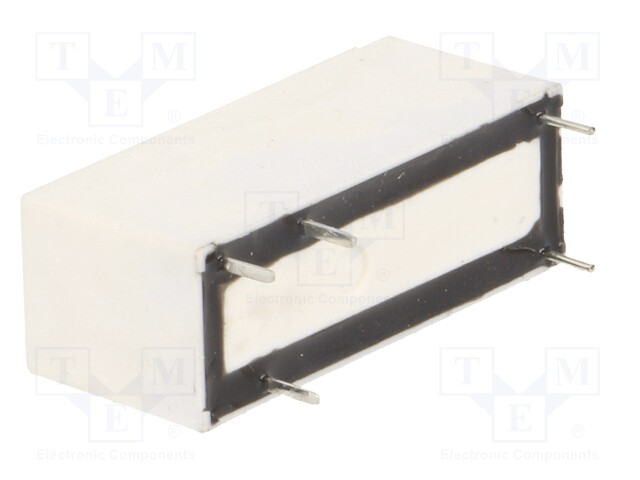

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A/250VAC; 8A/28VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM12N-3011-35-1012
    Manufacturer: RELPOL
    Manufacturer code: RM12N-3011-35-1012
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3.78 € 3.78 € (wo VAT) 3.7800000000000002 EUR

    3.78 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A/250VAC; 8A/28VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 7.62mm

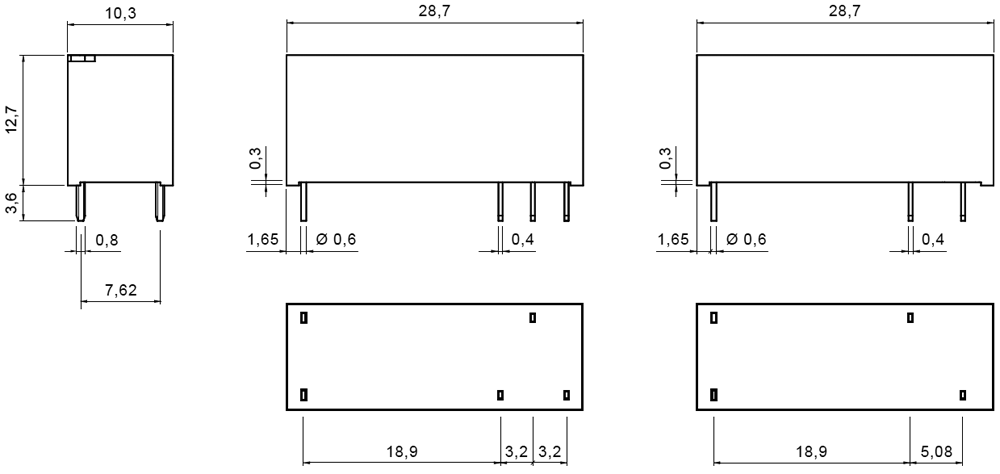

    Body dimensions 28.7x10.3x12.7mm
    Mechanical durability 100000000cycles
    Switched voltage max. 30V DC, max. 440V AC
    Electrical life 100000cycles
    Coil resistance 620Ω
    Rated coil voltage 12V DC

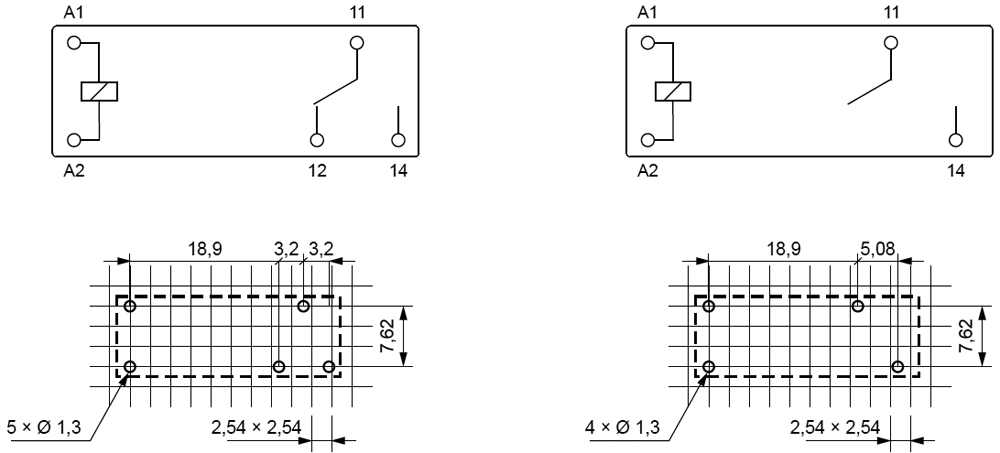

    Contacts configuration SPDT
    DC contacts rating @R 8A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 220mW
    Operate time 10ms
    Release time 5ms
    OEM number 2614941
