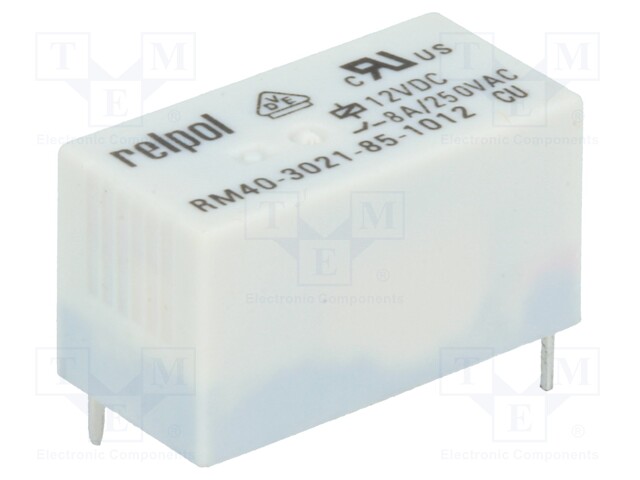

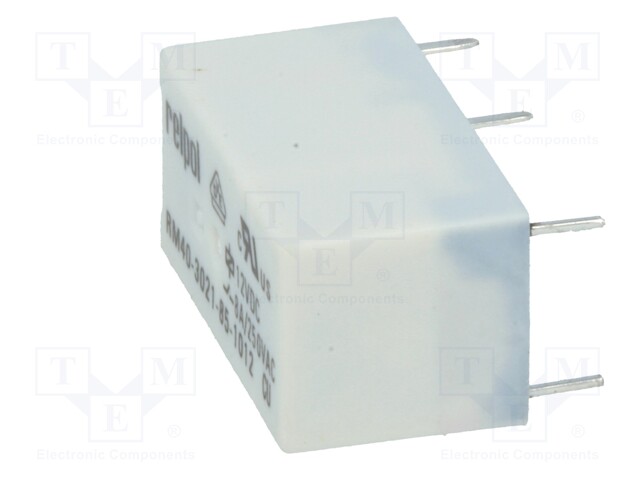

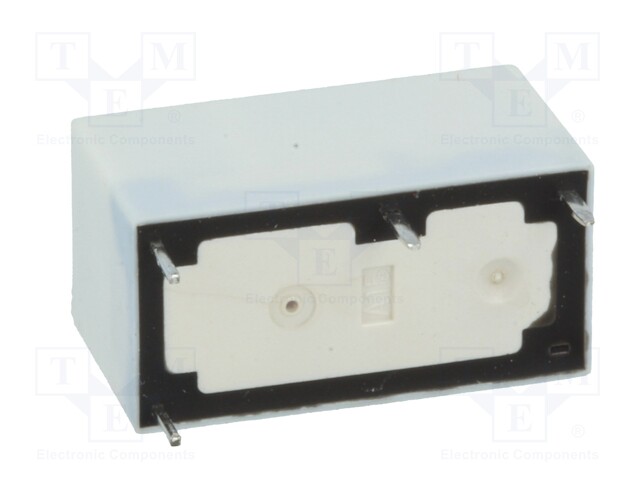

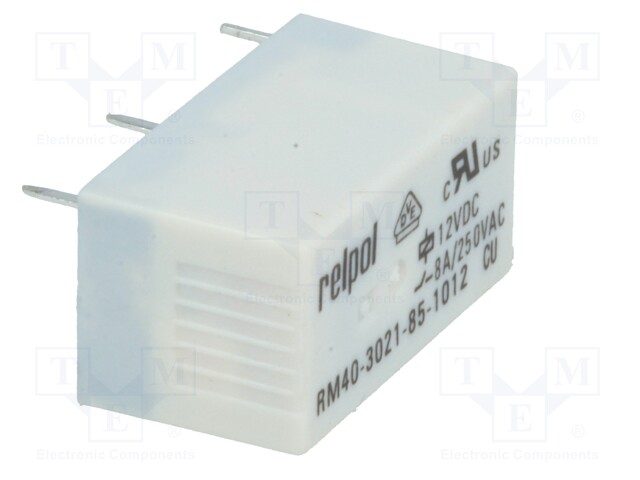

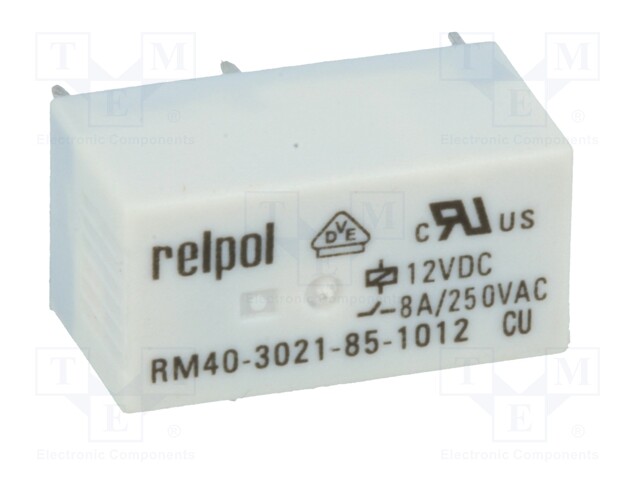

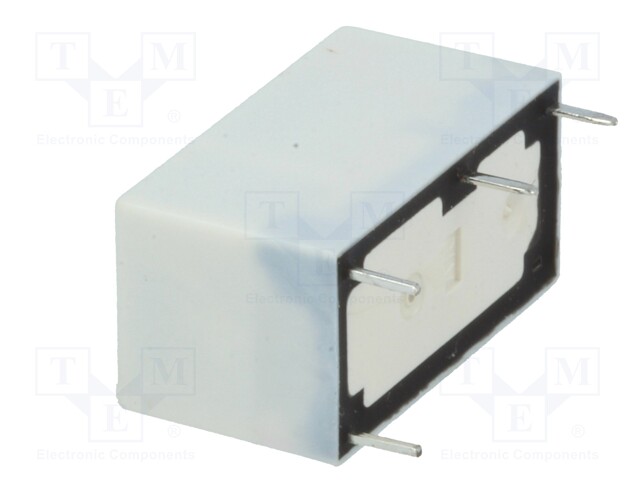

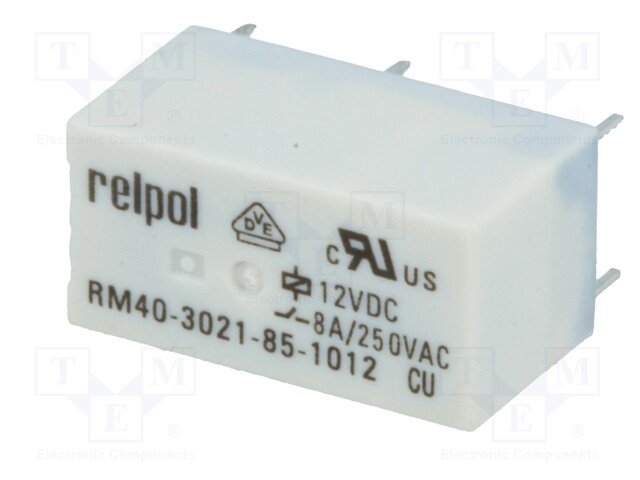

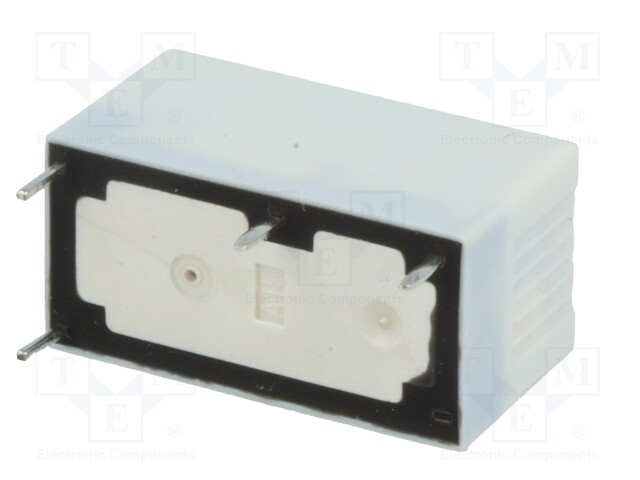

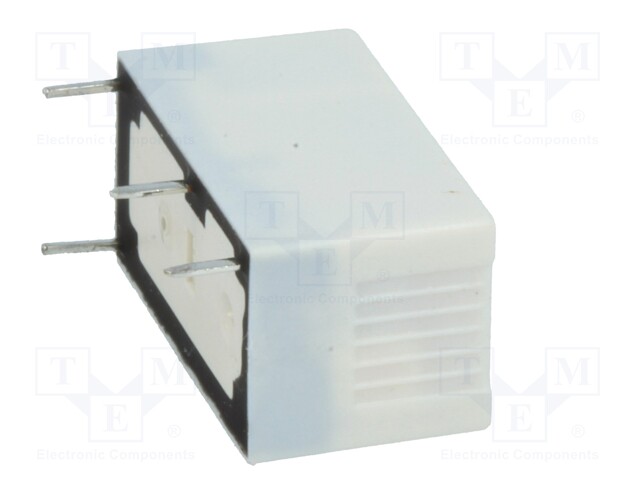

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM40-3021-85-1012
    Manufacturer: RELPOL
    Manufacturer code: RM40-3021-85-1012
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3.54 € 3.54 € (wo VAT) 3.54 EUR

    3.54 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 7.62mm

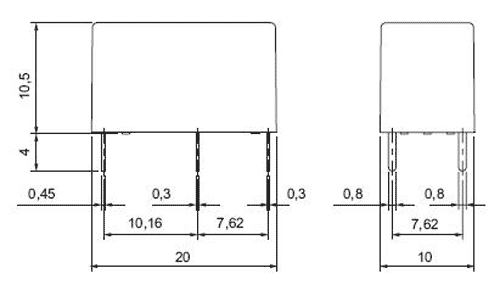

    Body dimensions 20x10x10.5mm
    Switched voltage max. 30V DC, max. 440V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC

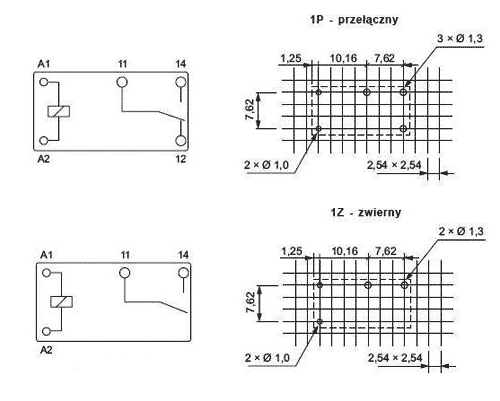

    Contacts configuration SPST-NO
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Operate time 8ms
    Release time 4ms
    OEM number 2611687
